PRODUCT SUPPORT PAGE FOR THE

Crown Shades 8' x 5' Grill Gazebo - Pop Up BBQ Canopy - G40

Please take a few minutes to review the contents below to get the most out of your canopy.

ITEMS INCLUDED
  • Grill Gazebo Frame
  • Small Fabric Top
  • Large Fabric Top
  • 2 Glass Tables
  • 10 Knob Bolts
  • 4 Lower Legs
  • 8 Stakes

PRODUCT VIDEOS

Explainer Setup

SET UP INSTRUCTIONS

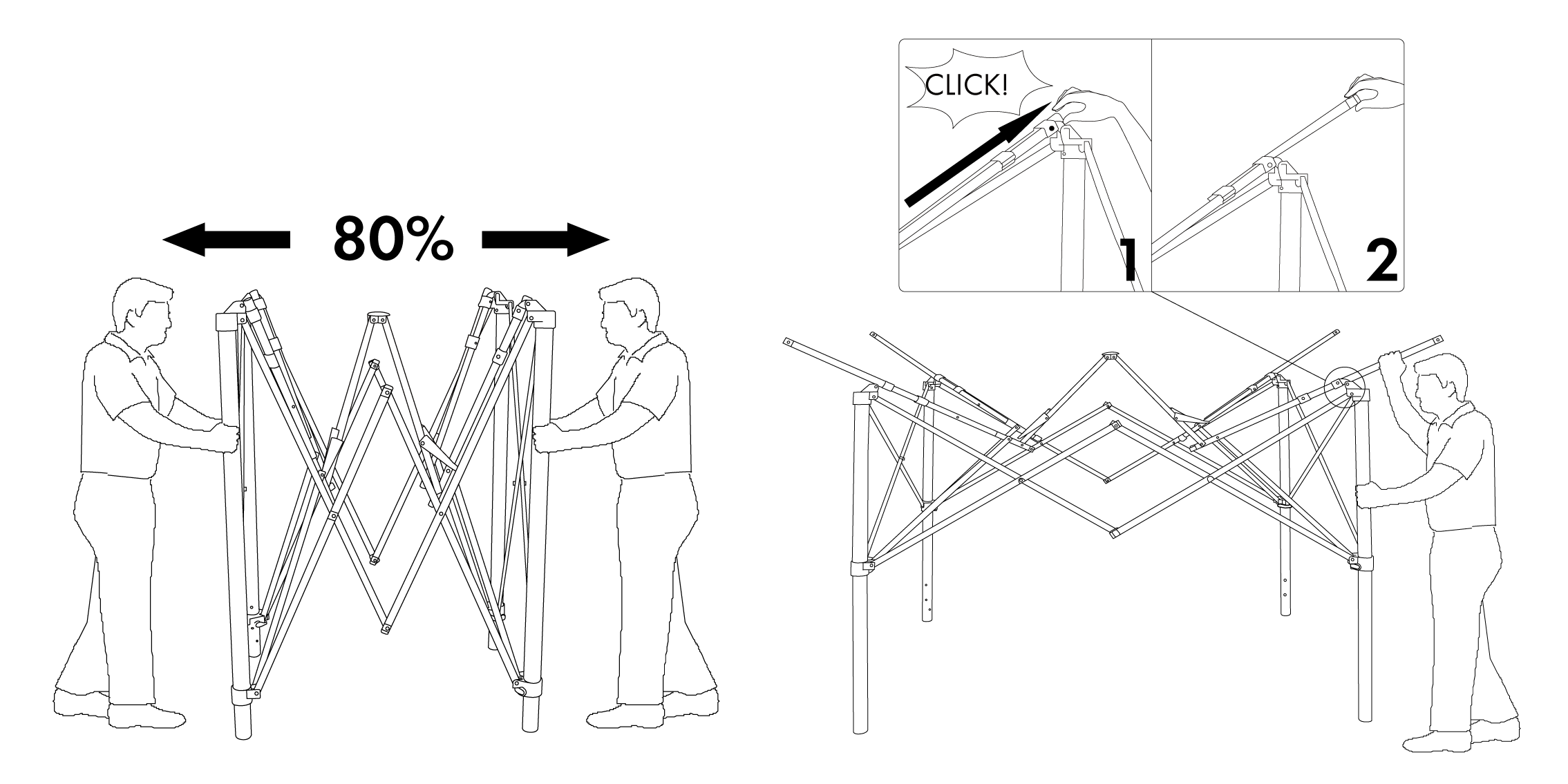

STEP 1 - OPEN THE CANOPY HEADING

With a partner, stand across from each other.
Grab one leg of the frame in each hand as shown. Lift slightly off the ground and step backwards while pulling the legs away from each other, bringing the truss closer together vertically.
Pull out the four telescopic poles until the click indicating the pin is locked.

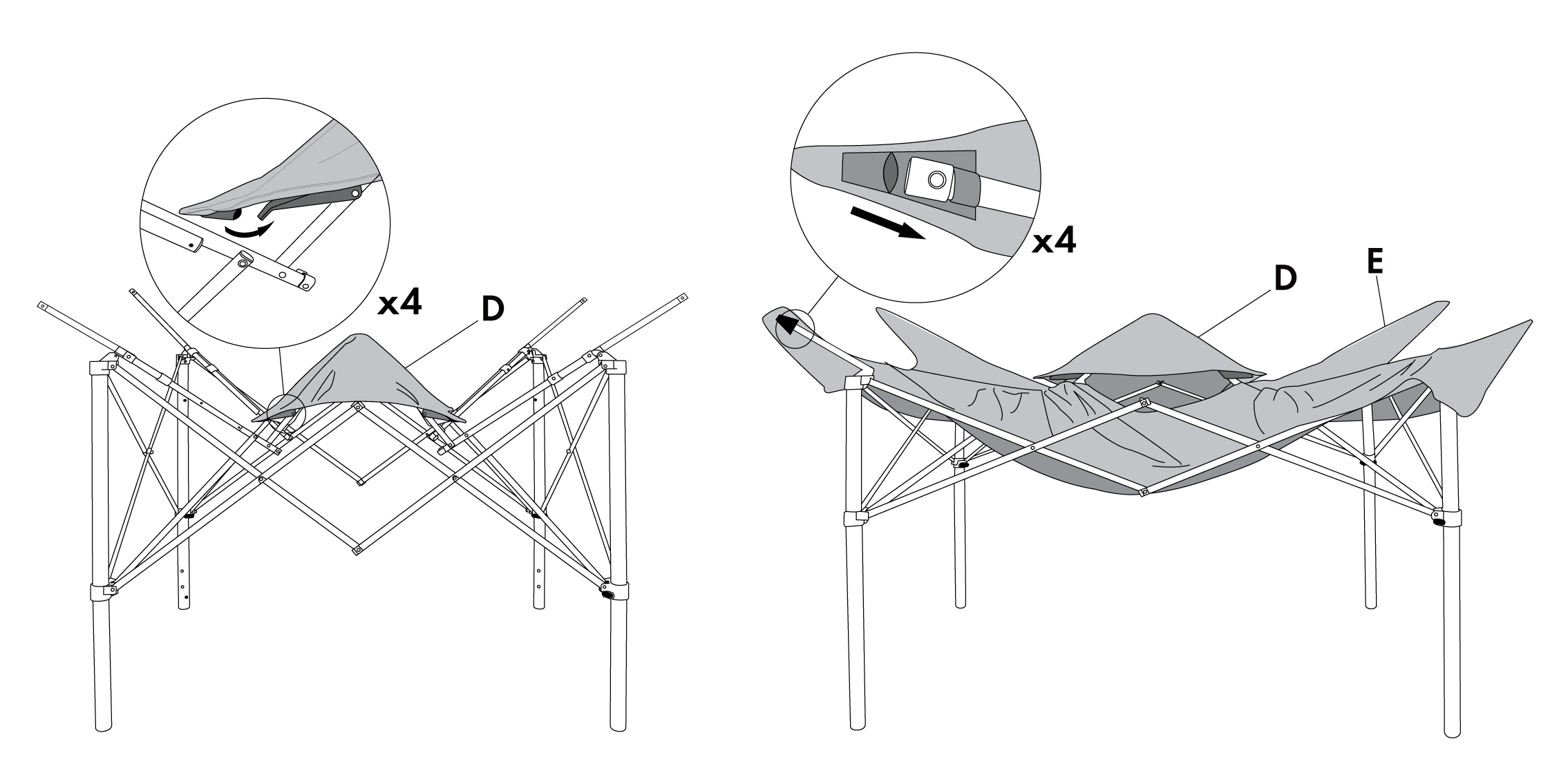

STEP 2 - ATTACH THE FABRIC

Unfold the small top fabric and place it over the open frame. Then attach the four small top corners to the frame.
Unfold the large top fabric and place it over the open frame. Be sure the neckband of the large top fabric is totally under the small top fabric. Then attach the four large top corners to the frame.

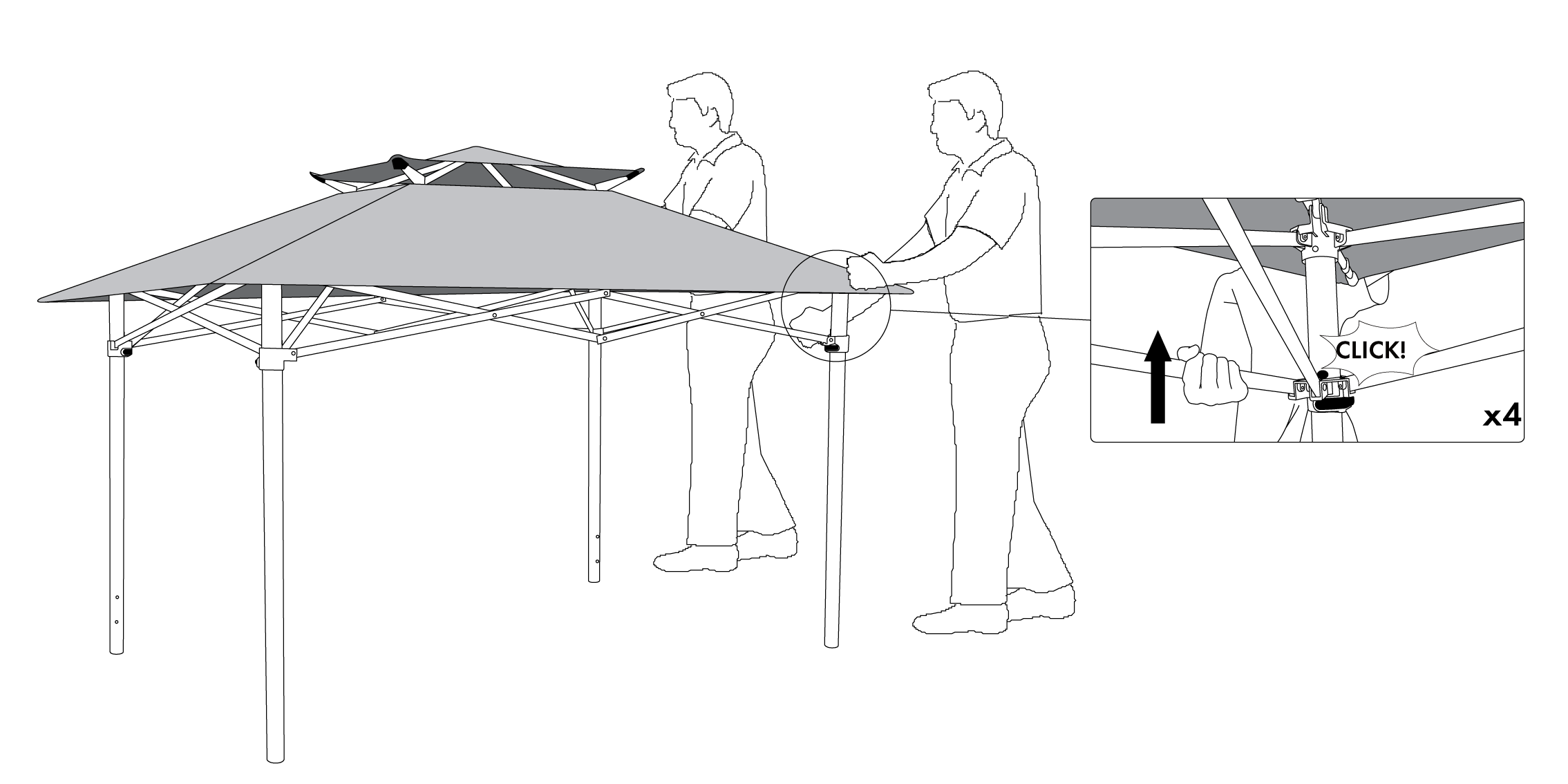

STEP 3 - INSERT LOWER LEG

With a partner, start on a narrow side. Place one hand on the upper canopy corner, and use the other hand to push the truss straight up until you hear a click indicating the truss is set into the hole on the canopy leg.
Repeat with the remaining canopy legs.

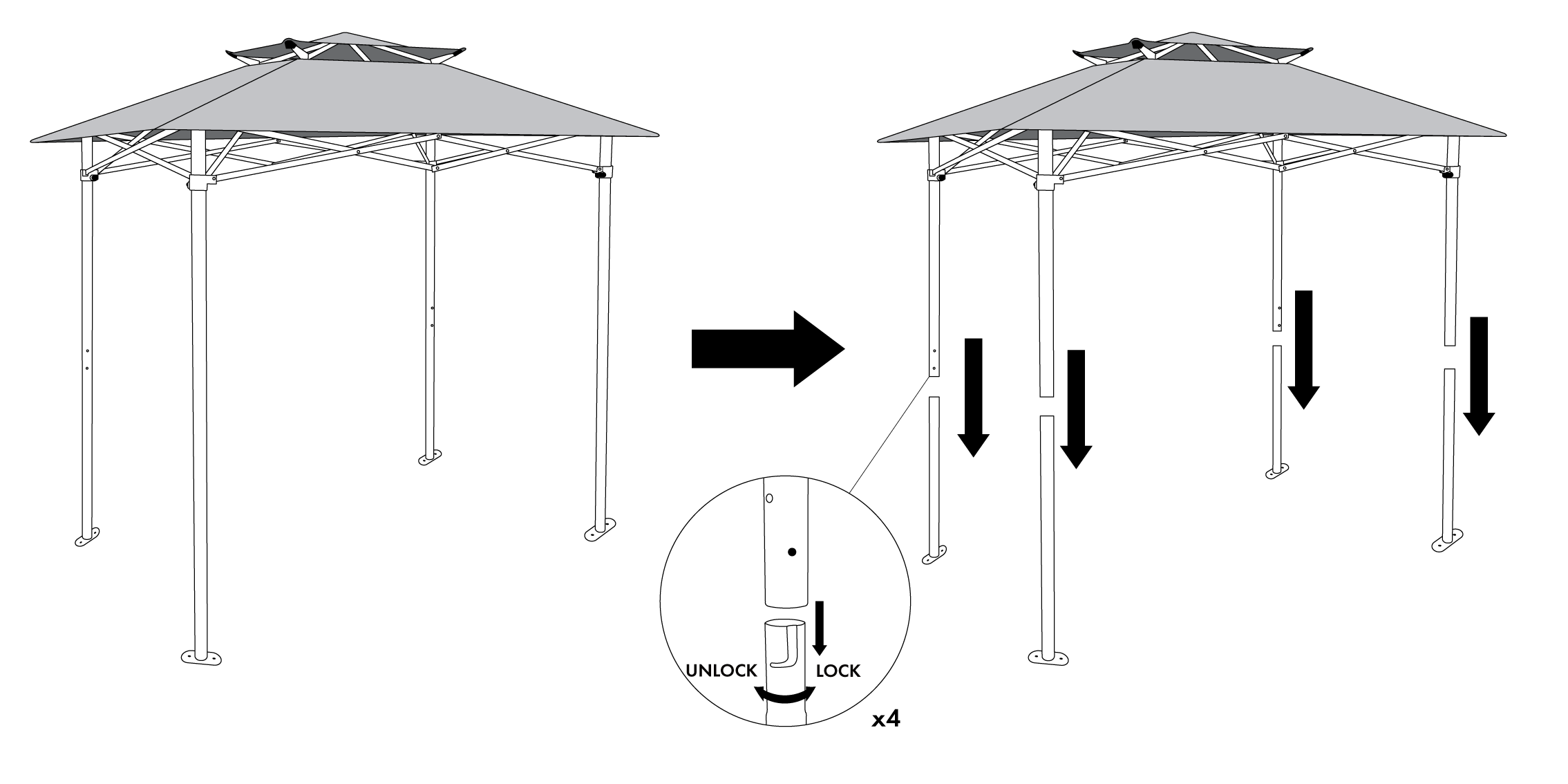

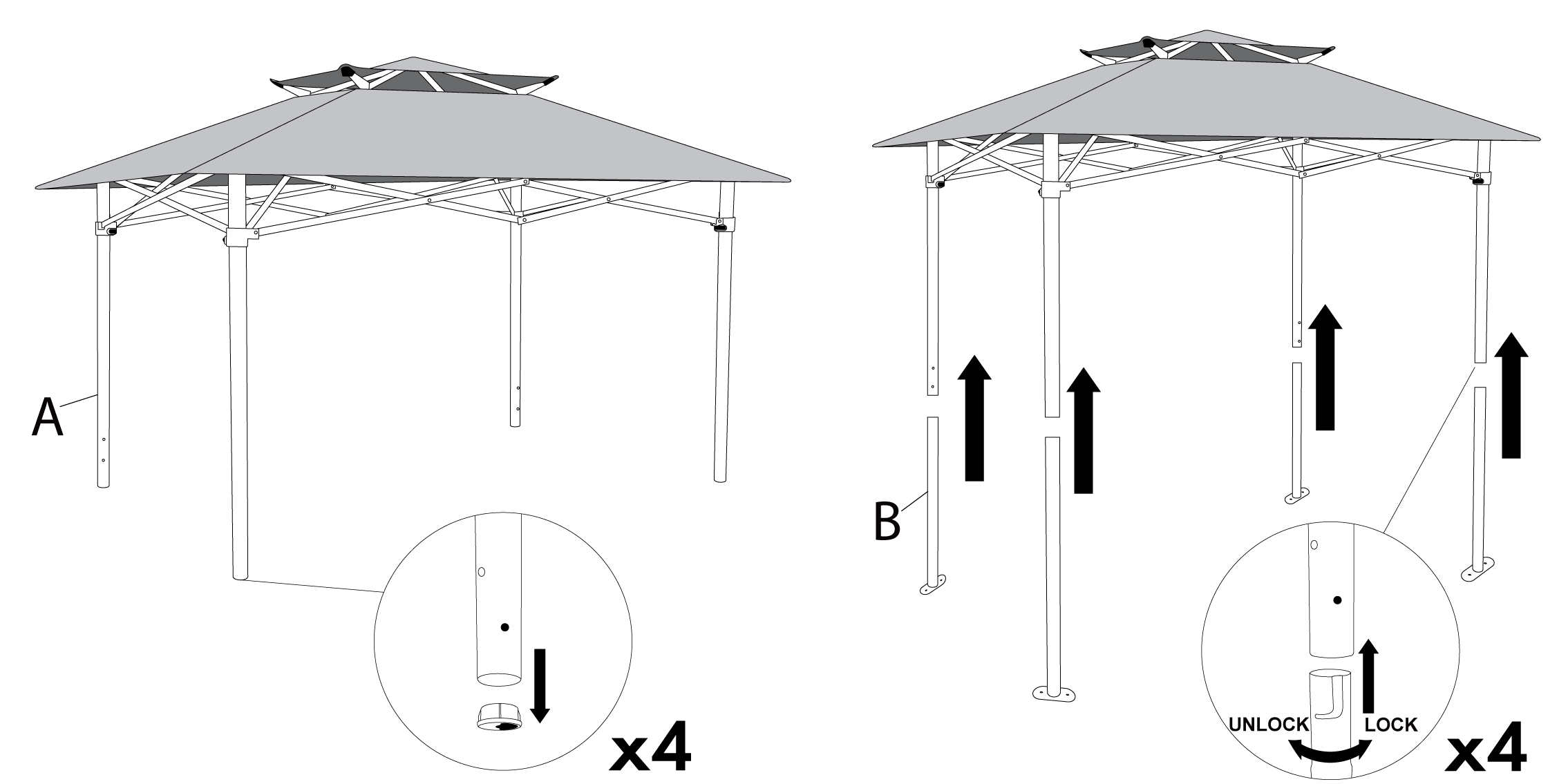

STEP 4 - LOCK THE FRAME

Remove the four black plastic plugs from the leg of the frame.
With a partner, start on the narrow side and lift the frame at the same time.
Align the groove of the leg assembly with the small groove of the upper leg assembly, then insert and rotate to tighten the leg.
Repeat with the remaining canopy legs.

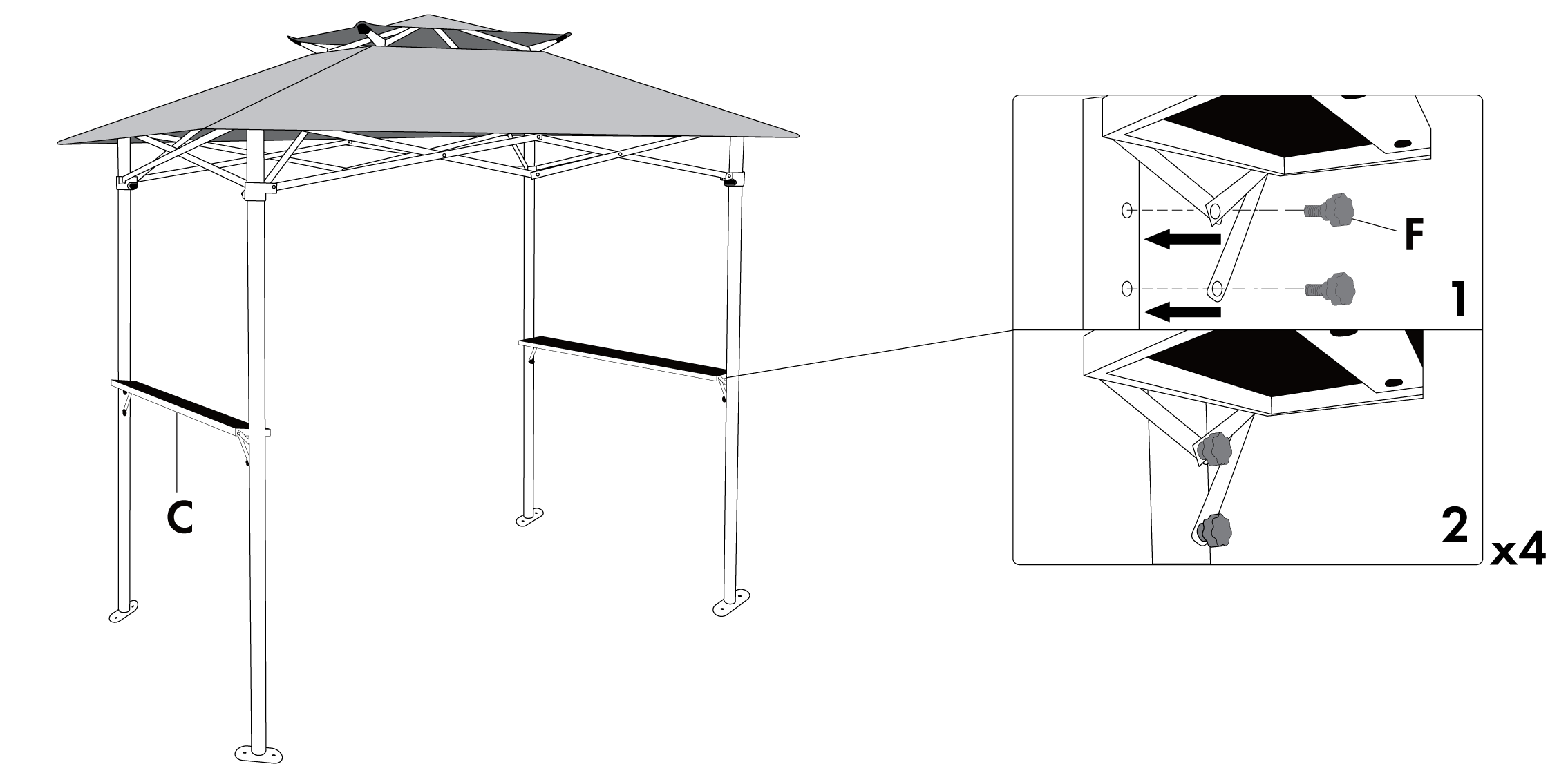

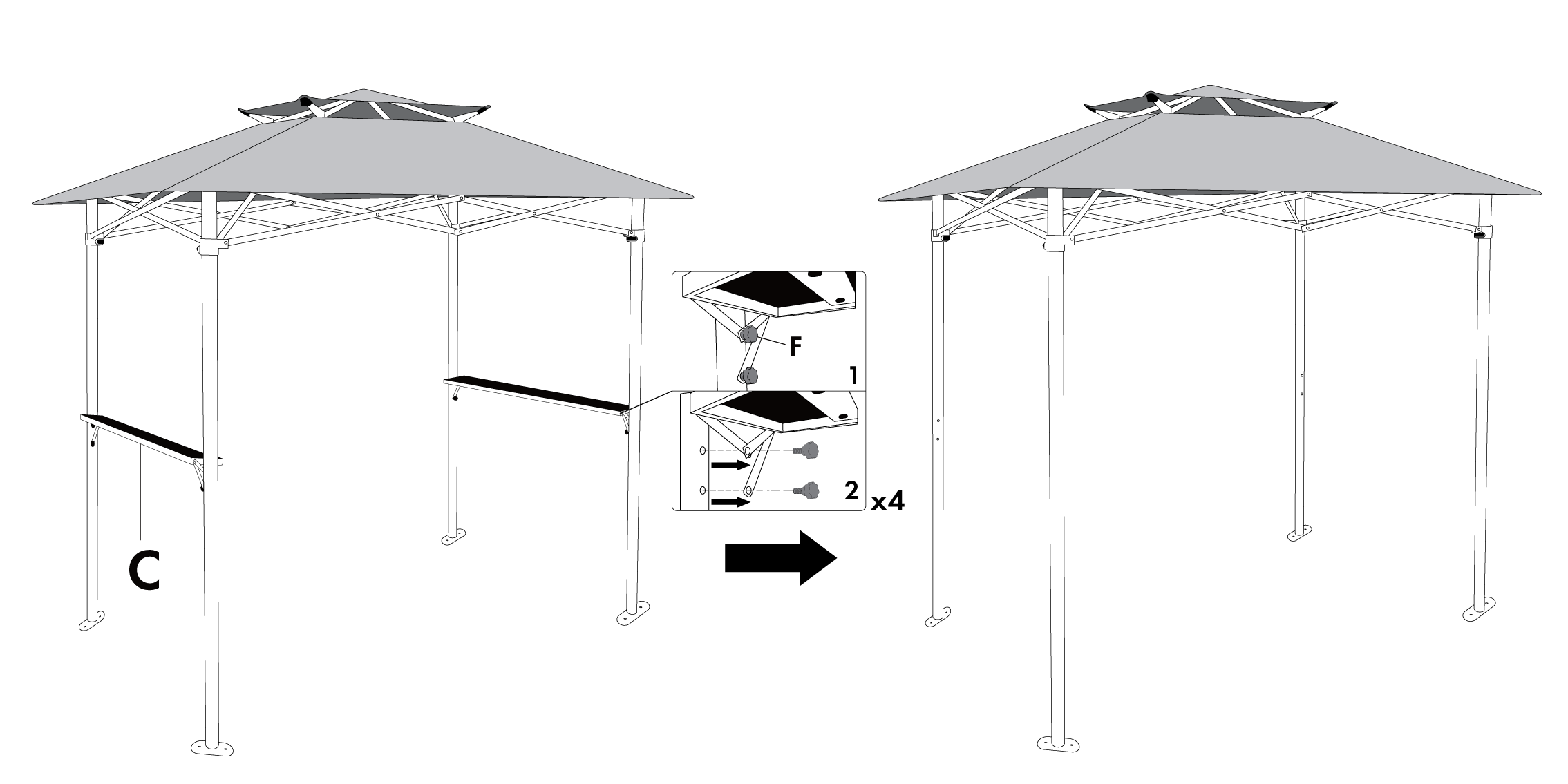

STEP 5 - INSTALL THE GLASS TABLES

With one person holding the glass table in position, the other person must use the knob to attach the glass table to the frame legs.
Repeat with the remaining table and legs.

TAKE DOWN INSTRUCTIONS

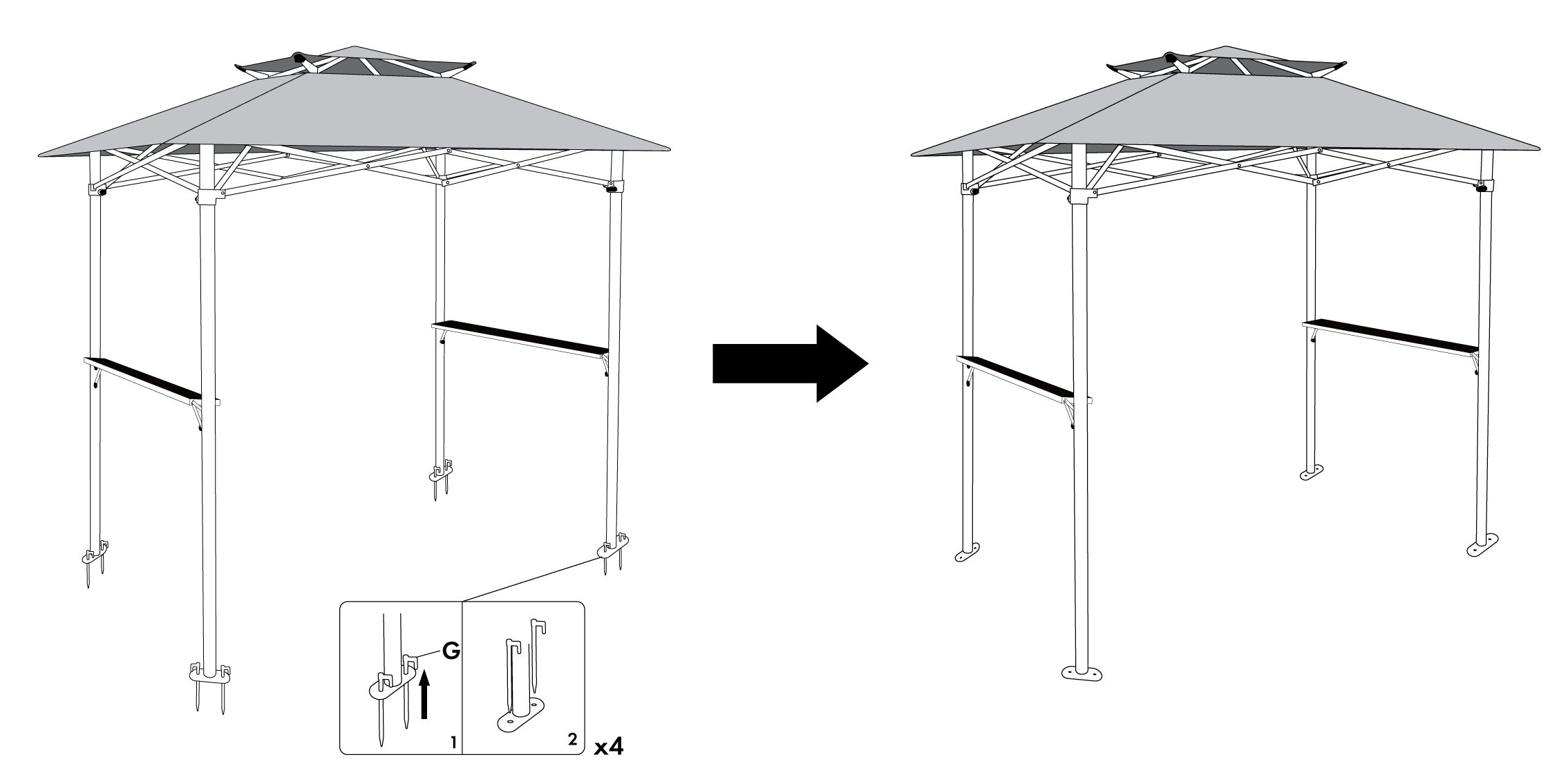

STEP 1 - REMOVE THE STAKES

Pull up all stakes from the ground.
STEP 2 - REMOVE THE GLASS TABLES

One person lift the glass tables and the another person remove the knob to detach the glass table from the frame legs.
Repeat for remaining glass table.
STEP 3 - REMOVE THE LOWER LEG

With a partner, start on the narrow side, rotate and pull down the lower leg at the same time.
Repeat for remaining legs.

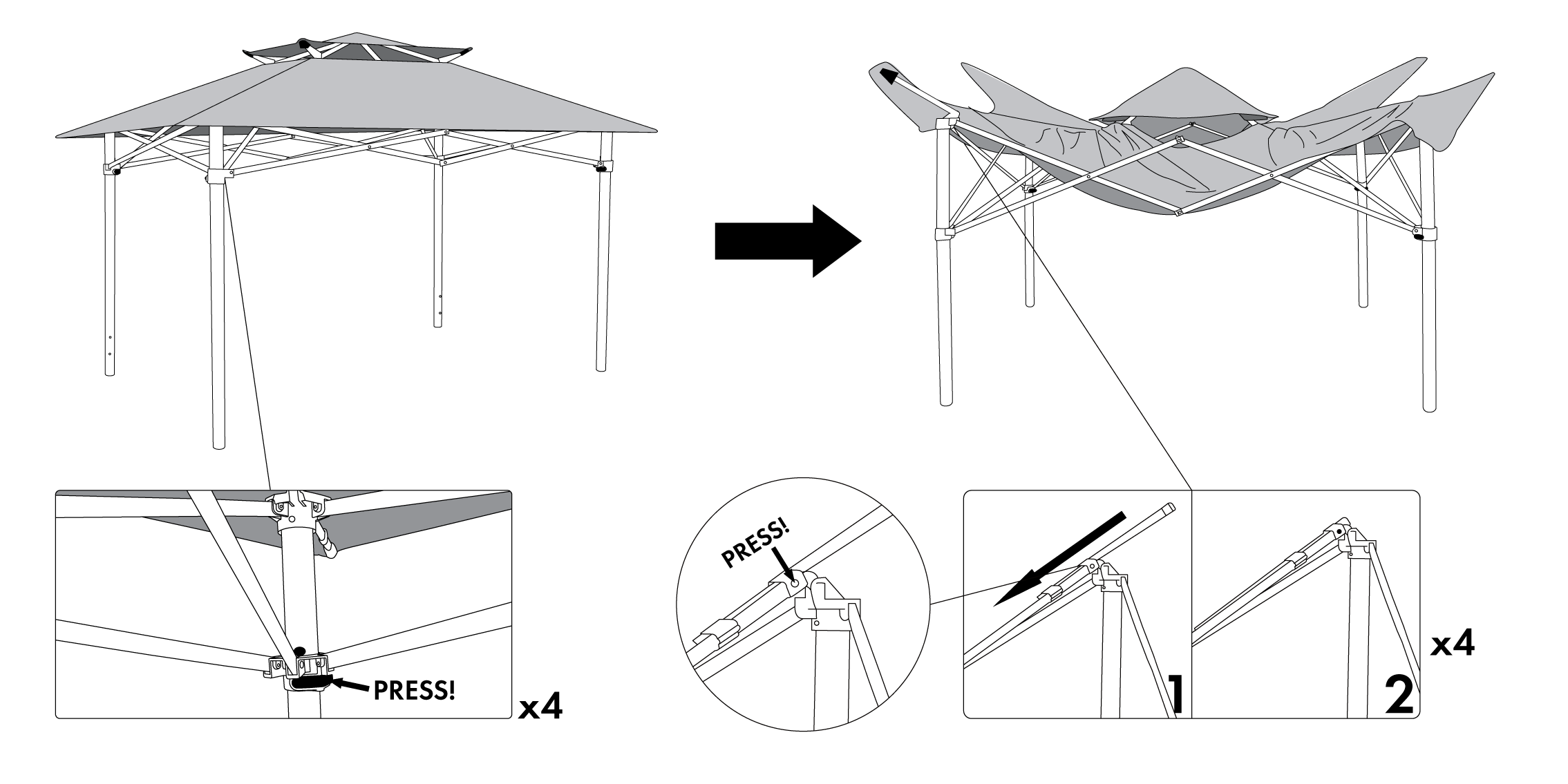

STEP 4 - UNLOCK THE CANOPY

From underneath the canopy, press in the red lock button on the leg assembly.
Press the pin on plastic part of each corner to retract the telescoping poles.

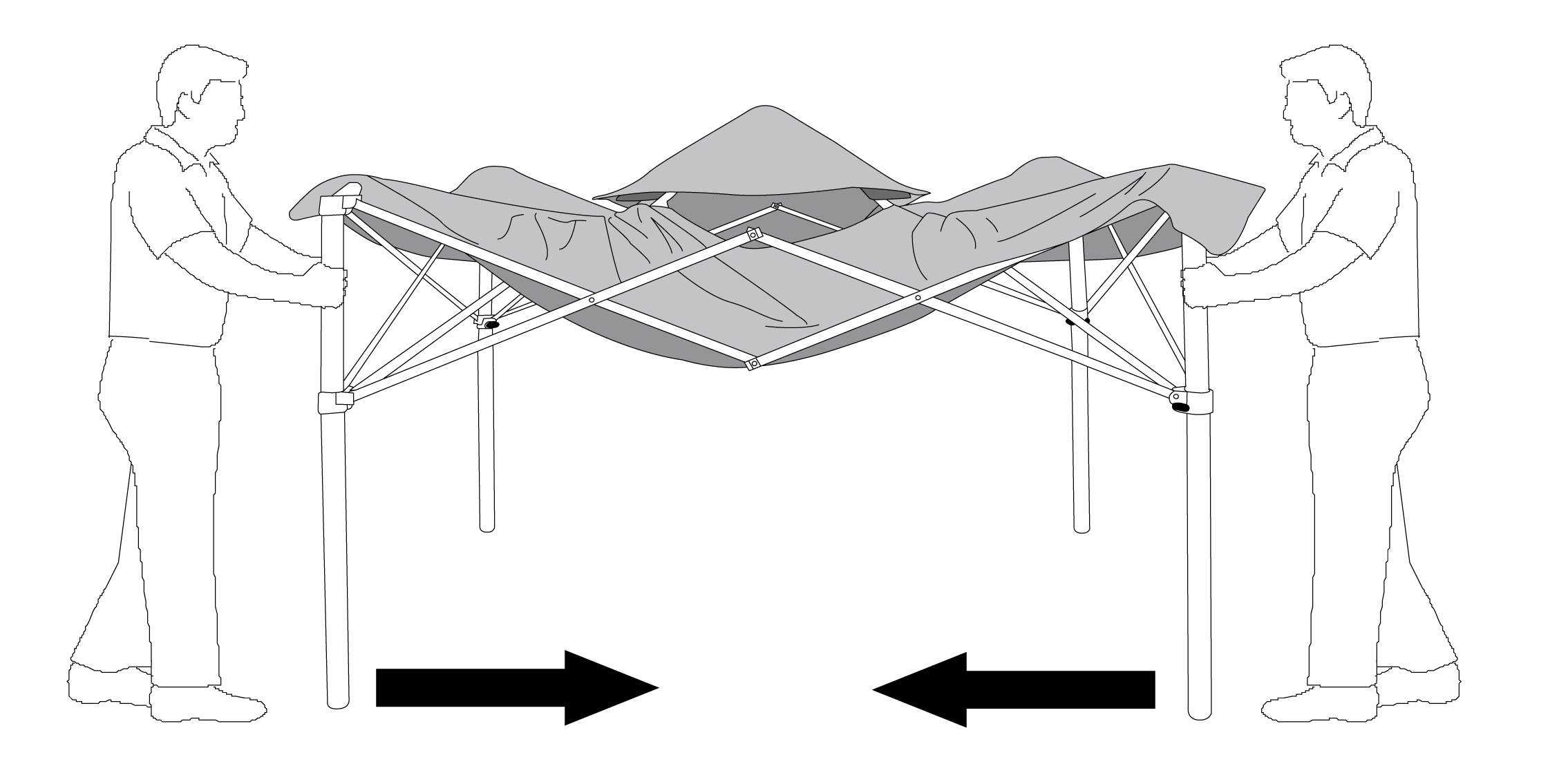

STEP 5 - FOLD THE FRAME

Lift the canopy off the ground 2-3 inches and walk it in from both sides until the frame is fully closed.

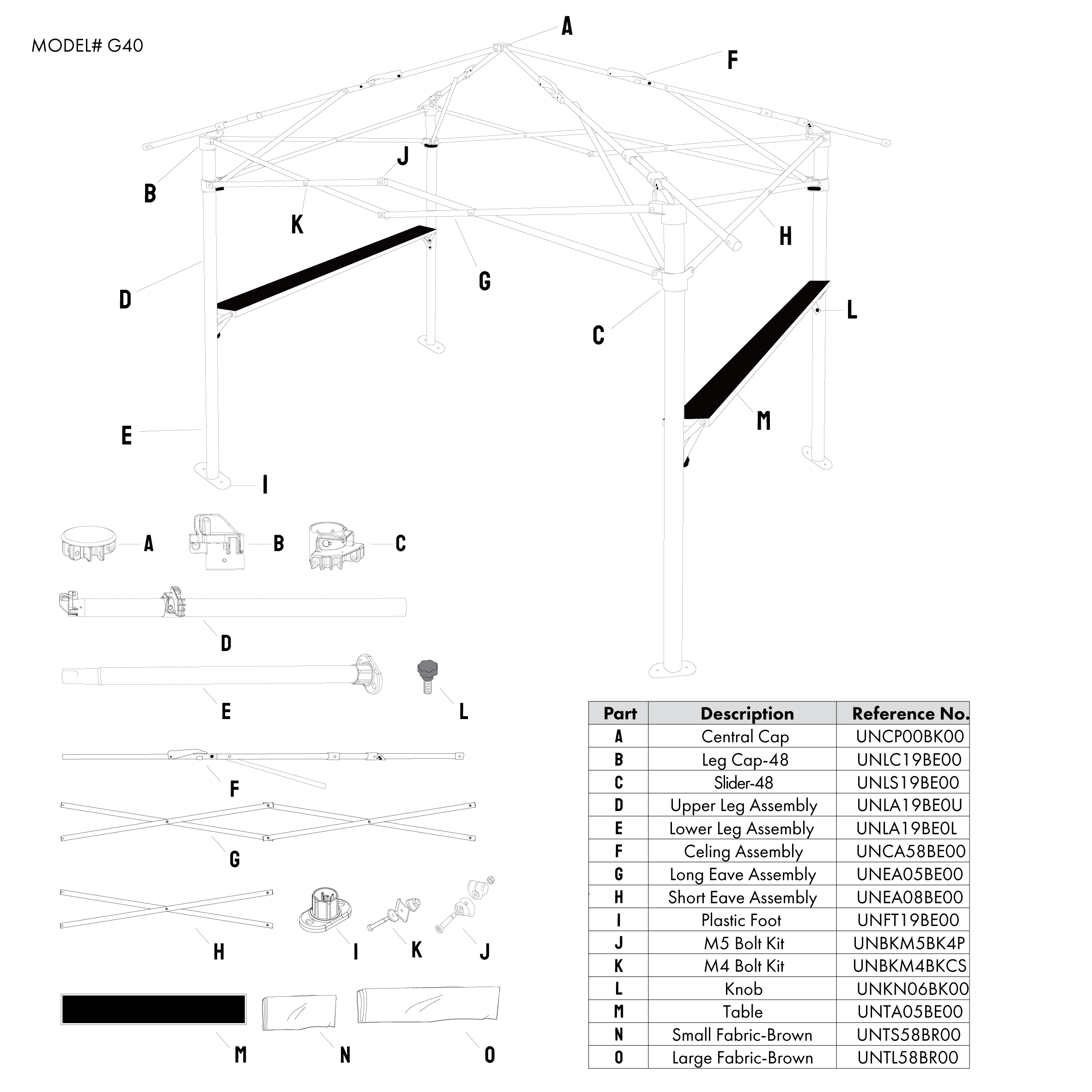

REPLACEMENT PARTS
