PRODUCT SUPPORT PAGE FOR THE

Crown Shades 14' x 12' CenterLOK® 6-Sided Canopy Tent - GSIX-143A

Please take a few minutes to review the contents below to get the most out of your canopy.

ITEMS INCLUDED
  • 6-Sided Steel Frame
  • Canopy Fabric Top
  • Wheeled Cover Bag
  • 6 Weight Bags
  • 6 Guy Ropes
  • 12 Stakes

PRODUCT VIDEOS

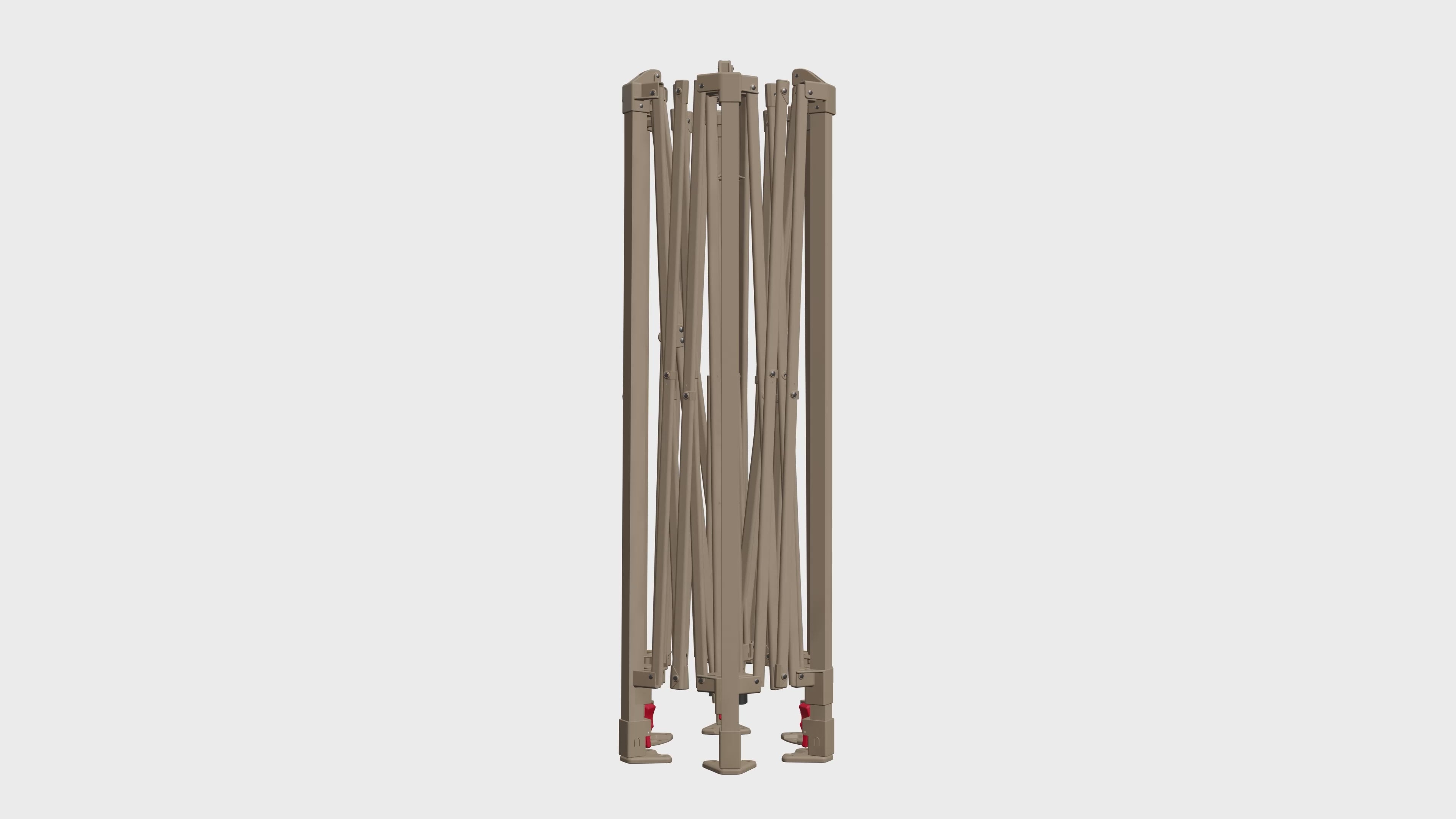

Explainer Setup

SET UP INSTRUCTIONS

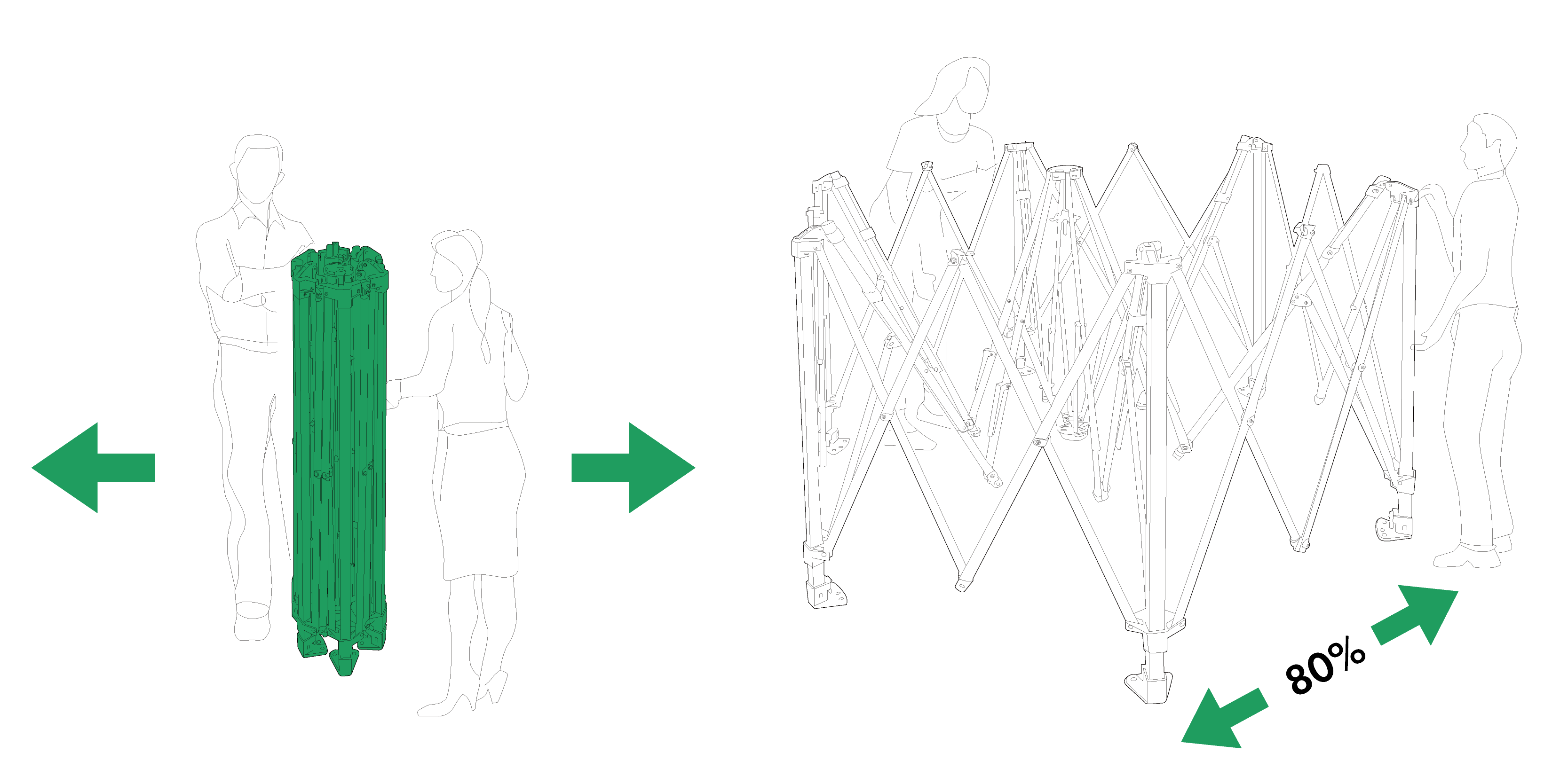

STEP 1 - OPEN THE CANOPY FRAME

With a partner, stand across from each other.

Grasp a truss at the top of the frame and the other truss at the bottom, as shown.

Lift slightly off ground and step backwards while squeezing trusses together.

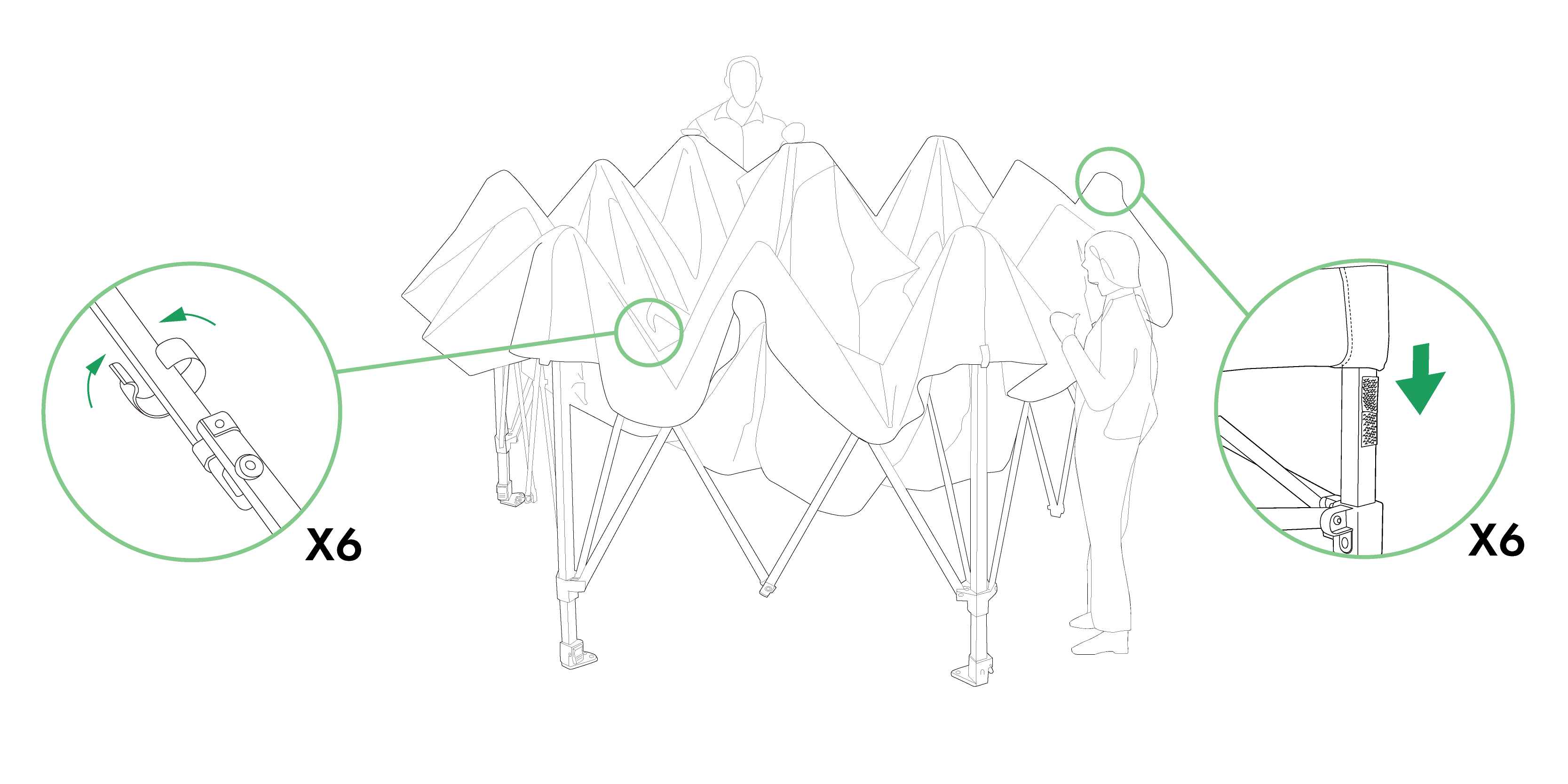

STEP 2 - ATTACH THE CANOPY FABRIC

Unfold the canopy and place on top of the canopy frame.

Secure the canopy top to the corners of the canopy frame using the Velcro connections.

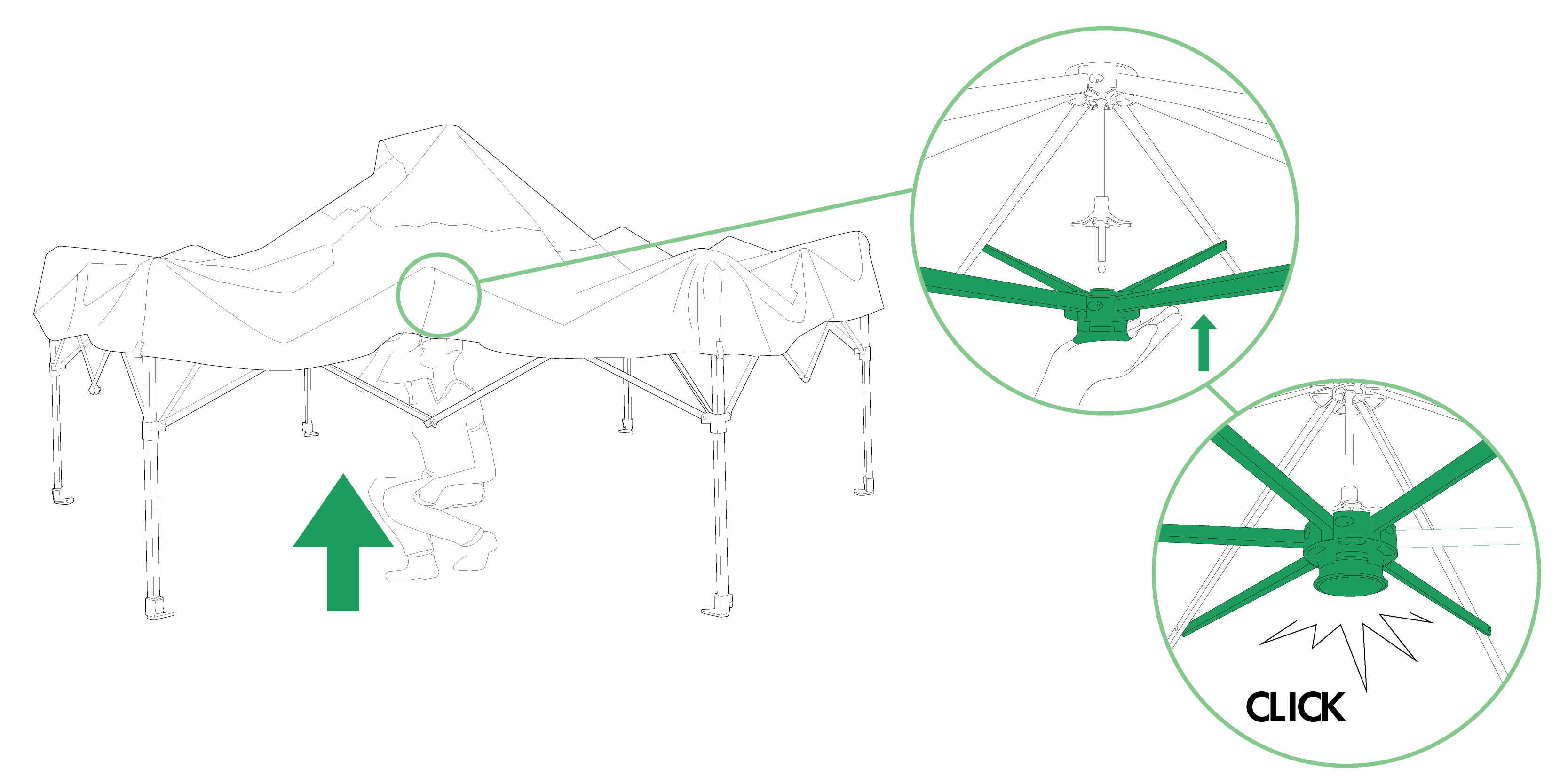

STEP 3 - LOCK THE FRAME

Lift up one side of the frame and duck under it.

Place one hand on the upper frame and use the other hand to push the central hub straight up until it clicks into the central pole.

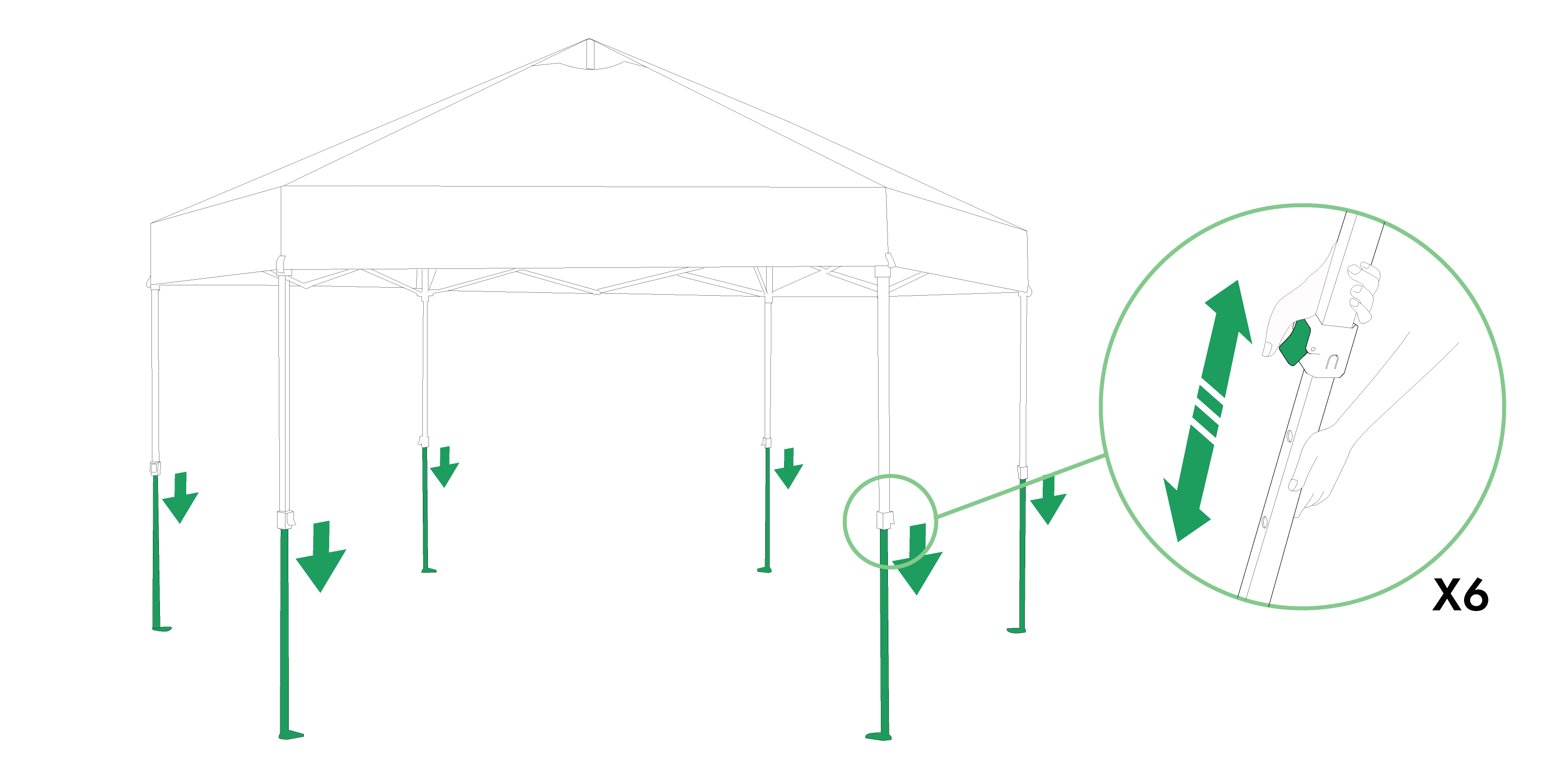

STEP 4 - ADJUST THE CANOPY HEIGHT

Lift up one side. Grasp the outer or upper leg with one hand and pull out the inner leg with the other.

Extend until the button engages.

Set legs to desired height.

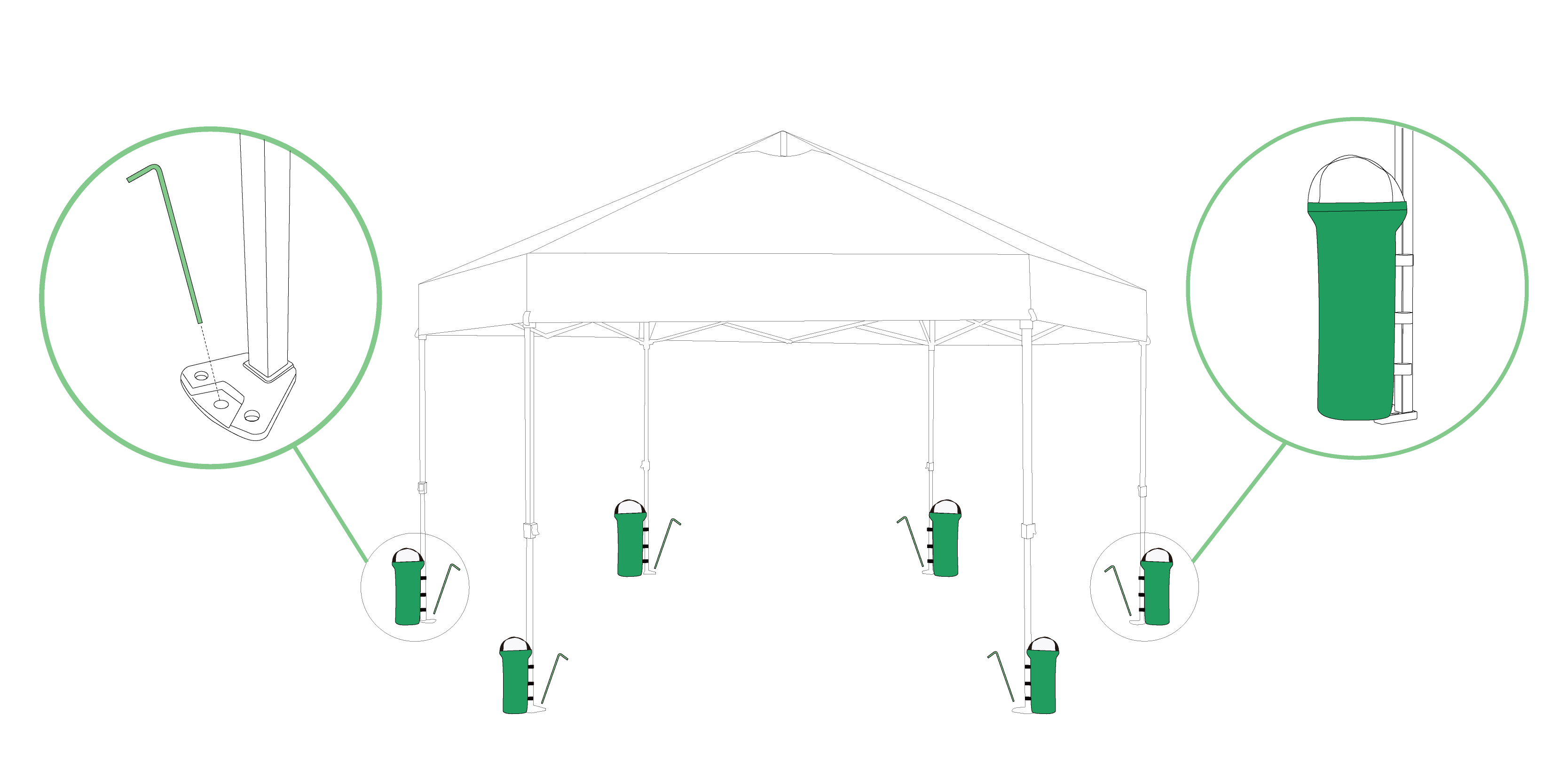

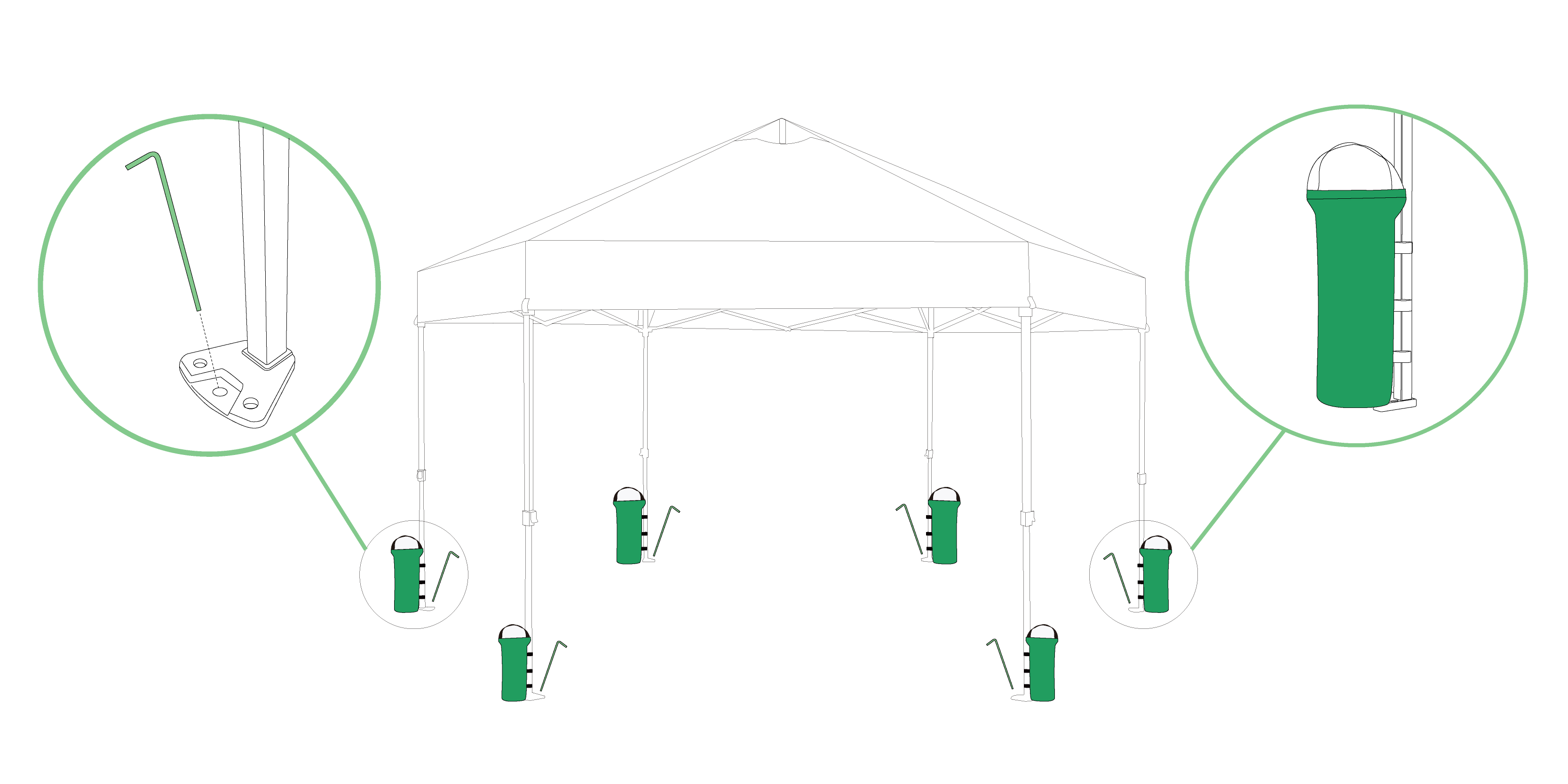

STEP 5 - SECURE THE CANOPY IN PLACE

Insert a stake into the foot pad of the leg.

Fill up the weight bags with sand or gravel and simply use the hook and loop strap around each leg.

TAKE DOWN INSTRUCTIONS
STEP 1 - REMOVE THE ANCHORS

Remove all weight bags and stakes from the ground.

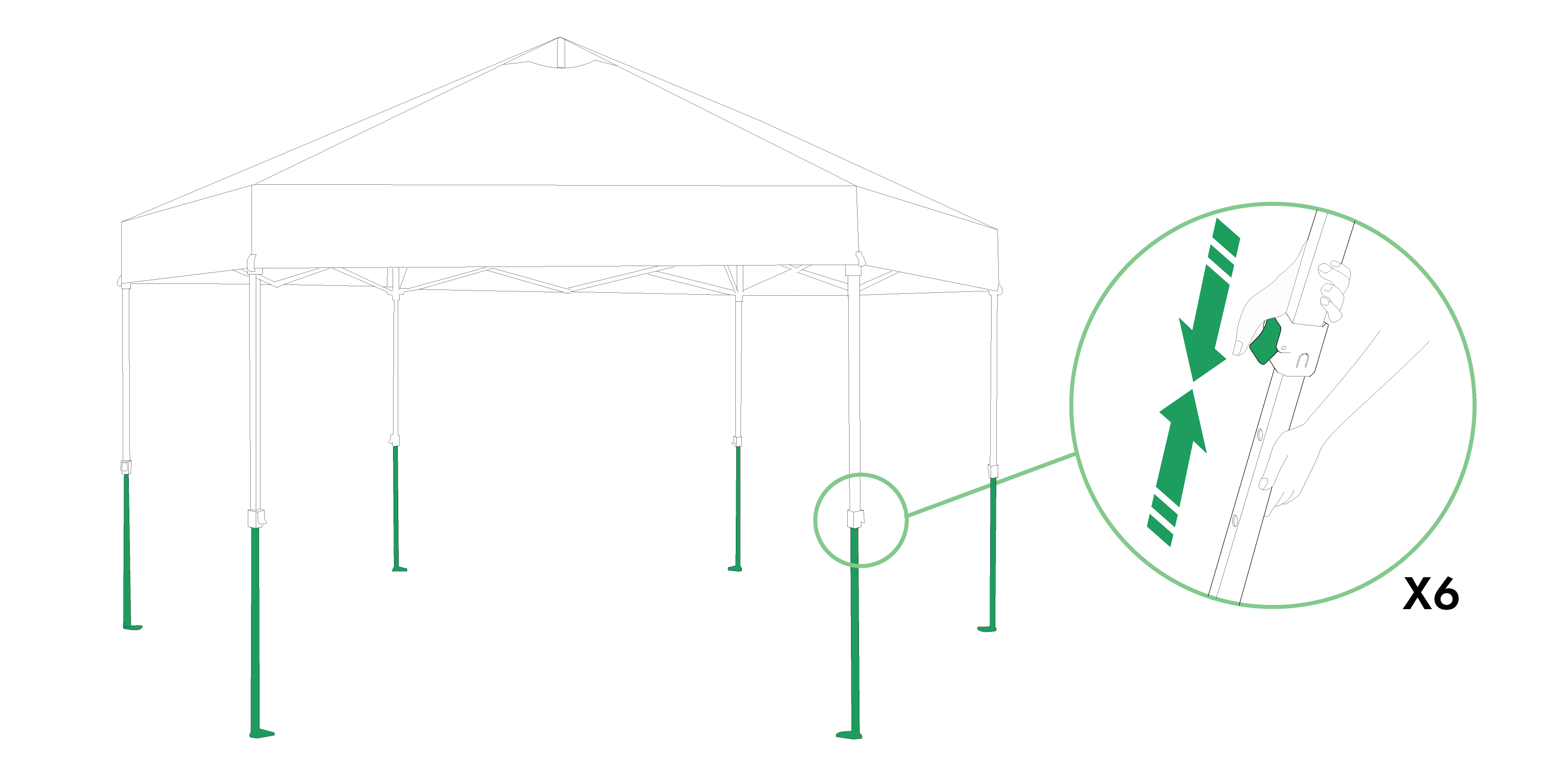

STEP 2 - RETRACT THE LEGS

Press the push button to lower all legs.

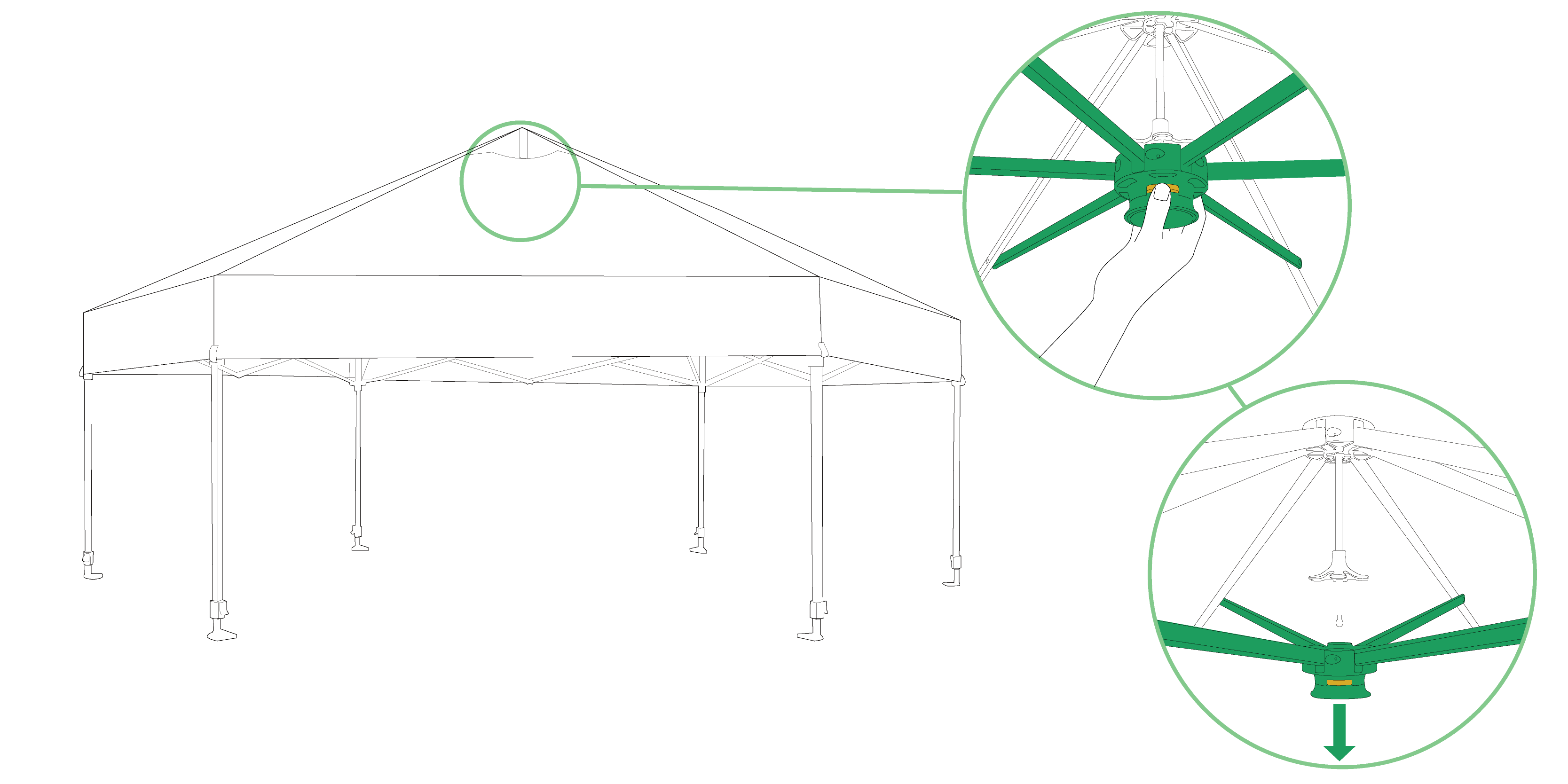

STEP 3 - UNLOCK THE CANOPY

From underneath the canopy, press in the red lock button.

Pull down on the central hub until it is separated from the central pole.

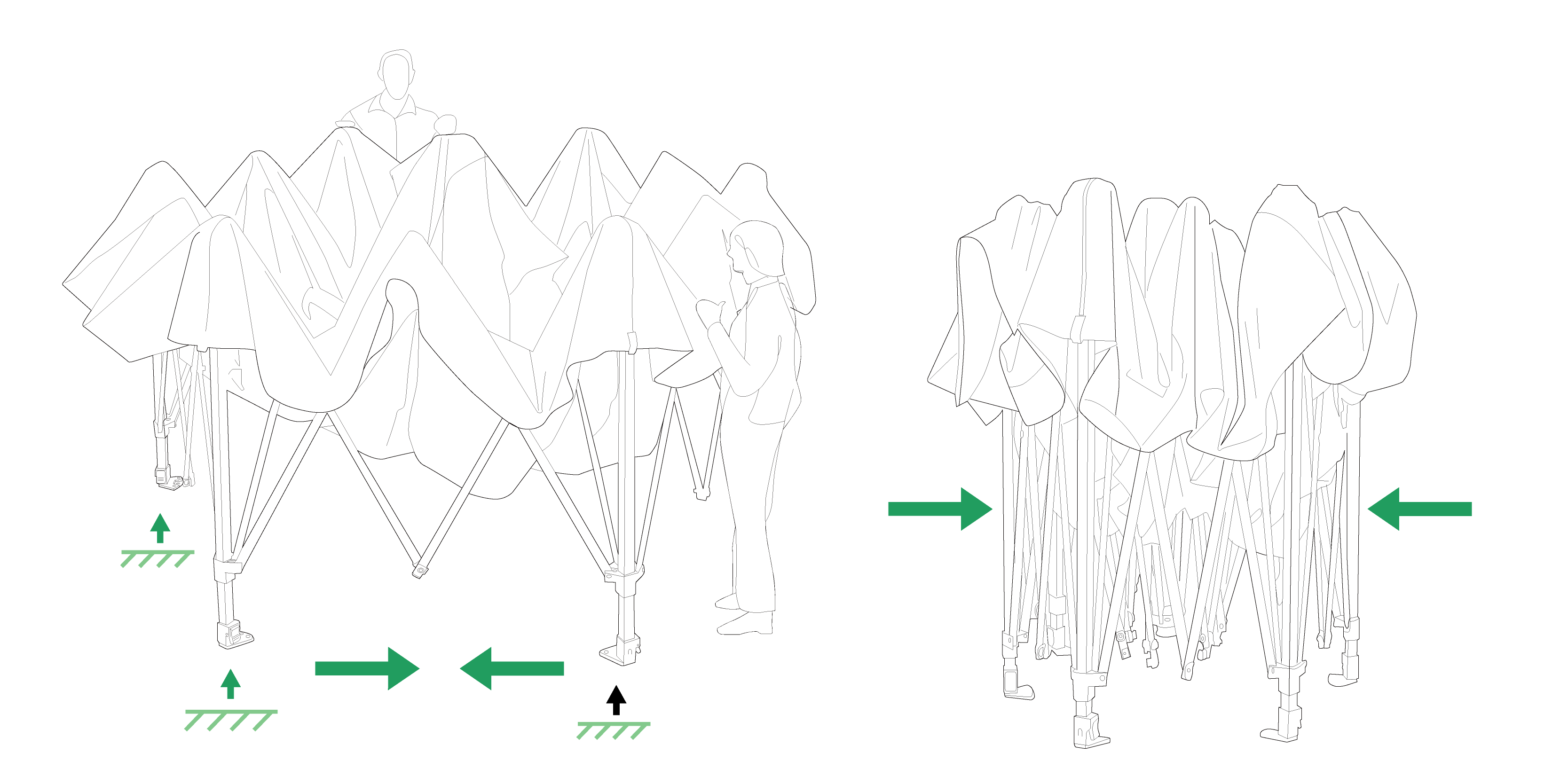

STEP 4 - FOLD THE FRAME

Lift the canopy off the ground 2-3 inches and walk it in from both sides until the frame is fully closed.
STEP 5 - PACK THE CANOPY INTO THE STORAGE BAG

With the canopy feet facing the rollers, slide the wheeled storage bag over the closed canopy frame.

Close the zipper on the wheeled storage bag.

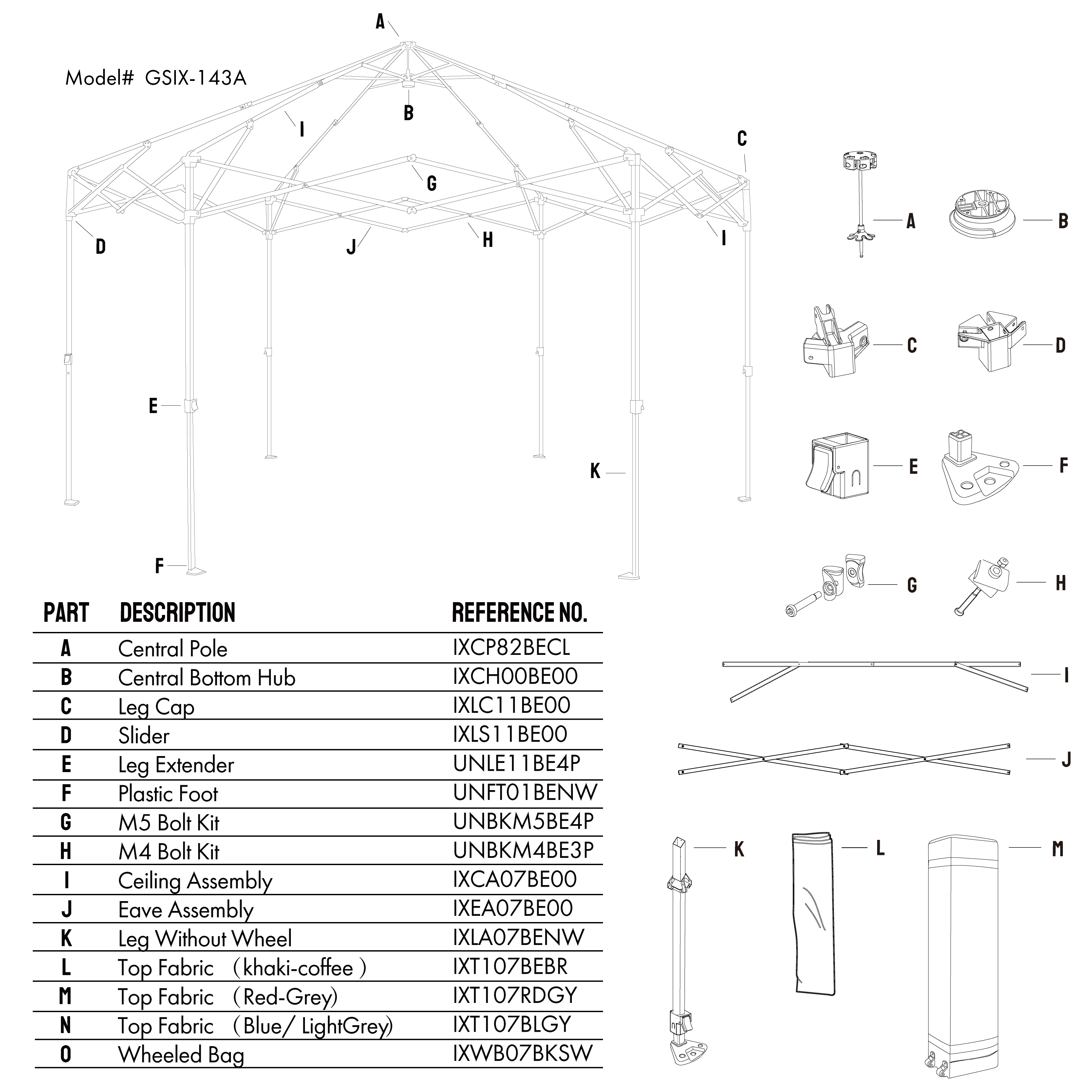

REPLACEMENT PARTS
Crown Shades 14' x 12' CenterLOK® 6-Sided Canopy Tent - GSIX-143A
