PRODUCT SUPPORT PAGE FOR THE

Crown Shades 11' x 11' Gazebo Canopy - Mesh Walls - GA121

Please take a few minutes to review the contents below to get the most out of your canopy.

ITEMS INCLUDED
  • 11' x 11' Gazebo Frame
  • Small Peak Fabric
  • Large Fabric
  • 8 Ground Stakes
  • 4 Guy Ropes
  • 4 Weight Bags

PRODUCT VIDEOS

Explainer Setup

Lifestyle Short

SET UP INSTRUCTIONS

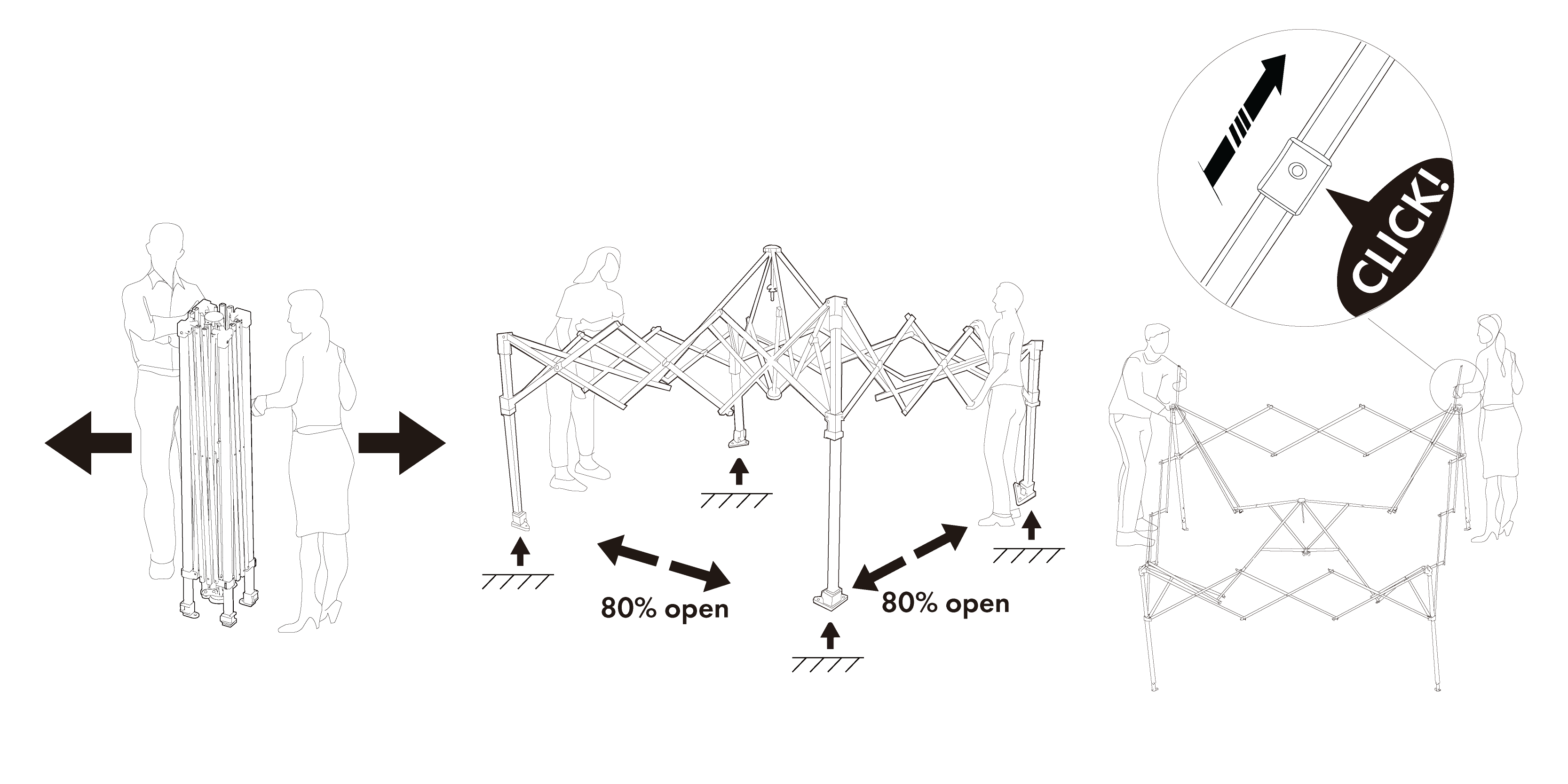

STEP 1 - OPEN THE CANOPY

With a partner, stand across from each other.

Grasp a truss at the top of the frame and the other truss at the bottom, as shown.

Lift slightly off ground and step backwards while squeezing trusses together.

Pull out the extension pole in each corner until locked in place.

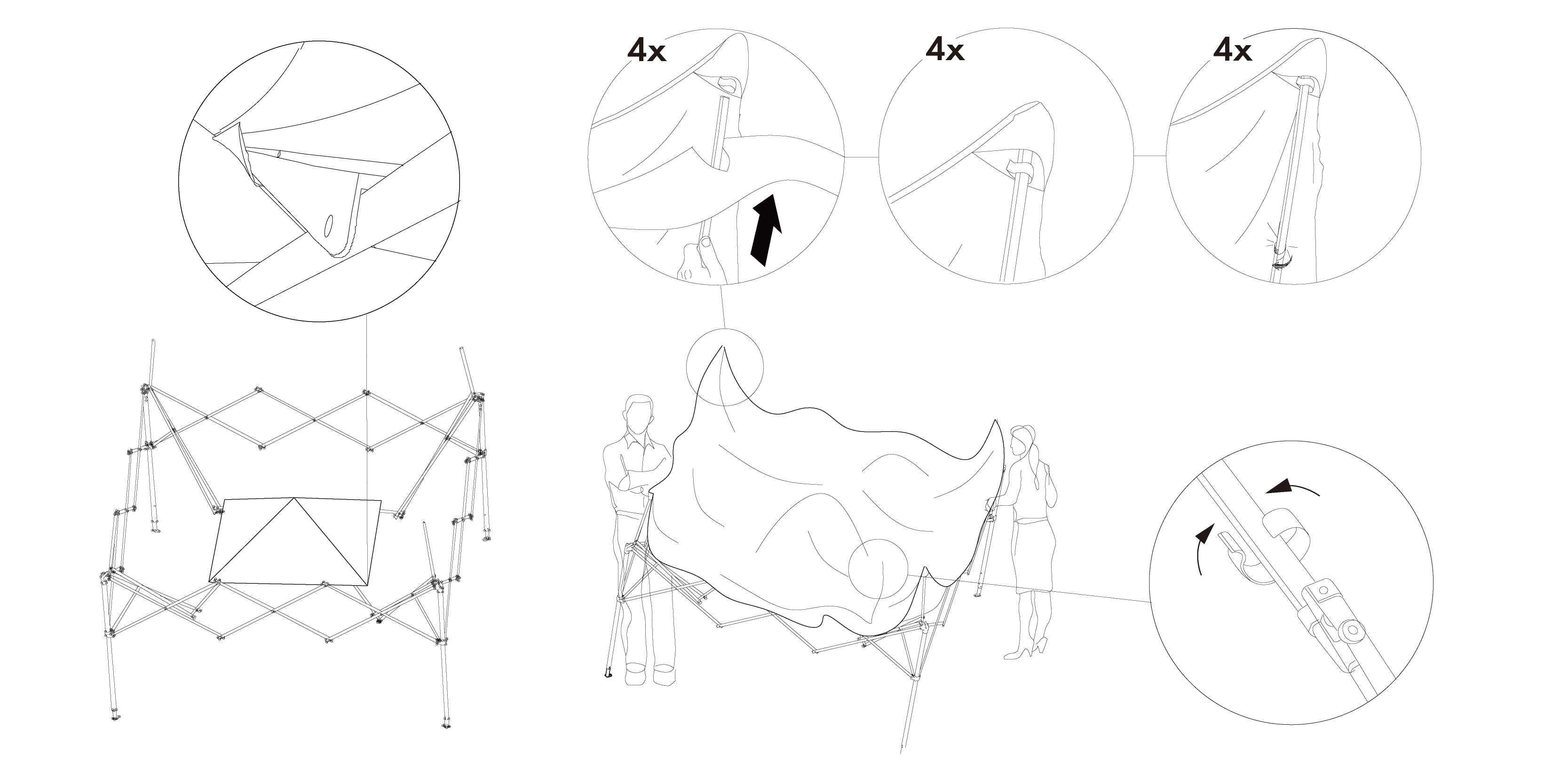

STEP 2 - ATTACH THE CANOPY FABRIC

Unfold the small canopy top and place it over the open frame.

Attach the four canopy corners to the frame top.

Unfold the large canopy top and place on top of the frame.

Be sure the neckband of the large canopy is totally under the small canopy top.

Pull the elastic loop over the end cap and insert the end cap into the corner webbing.

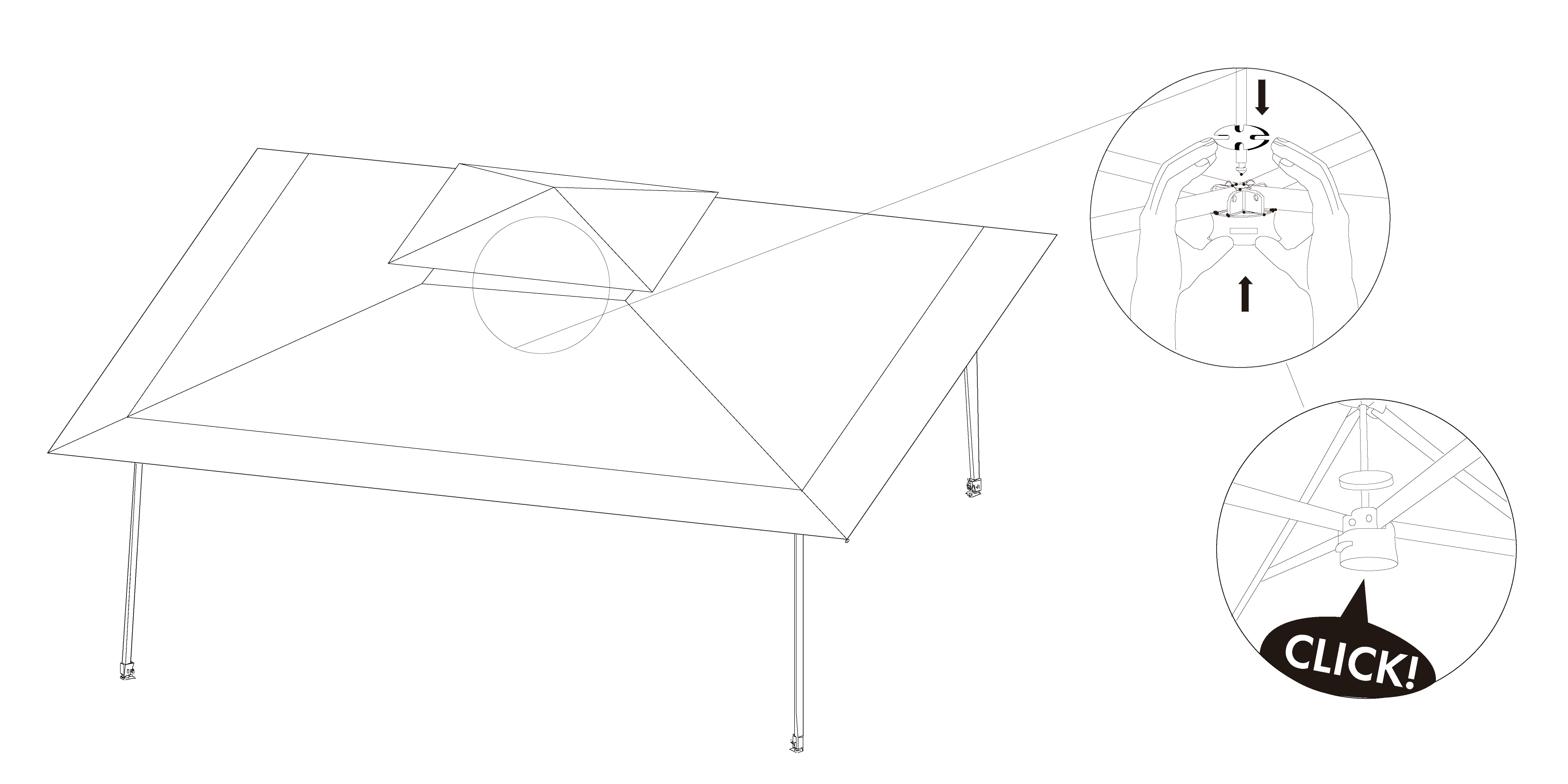

STEP 3 - LOCK THE FRAME

Lift up one side of the frame and walk under it.

Place one hand on the upper frame and use the other hand to push the central hub straight up until it clicks into the central pole.

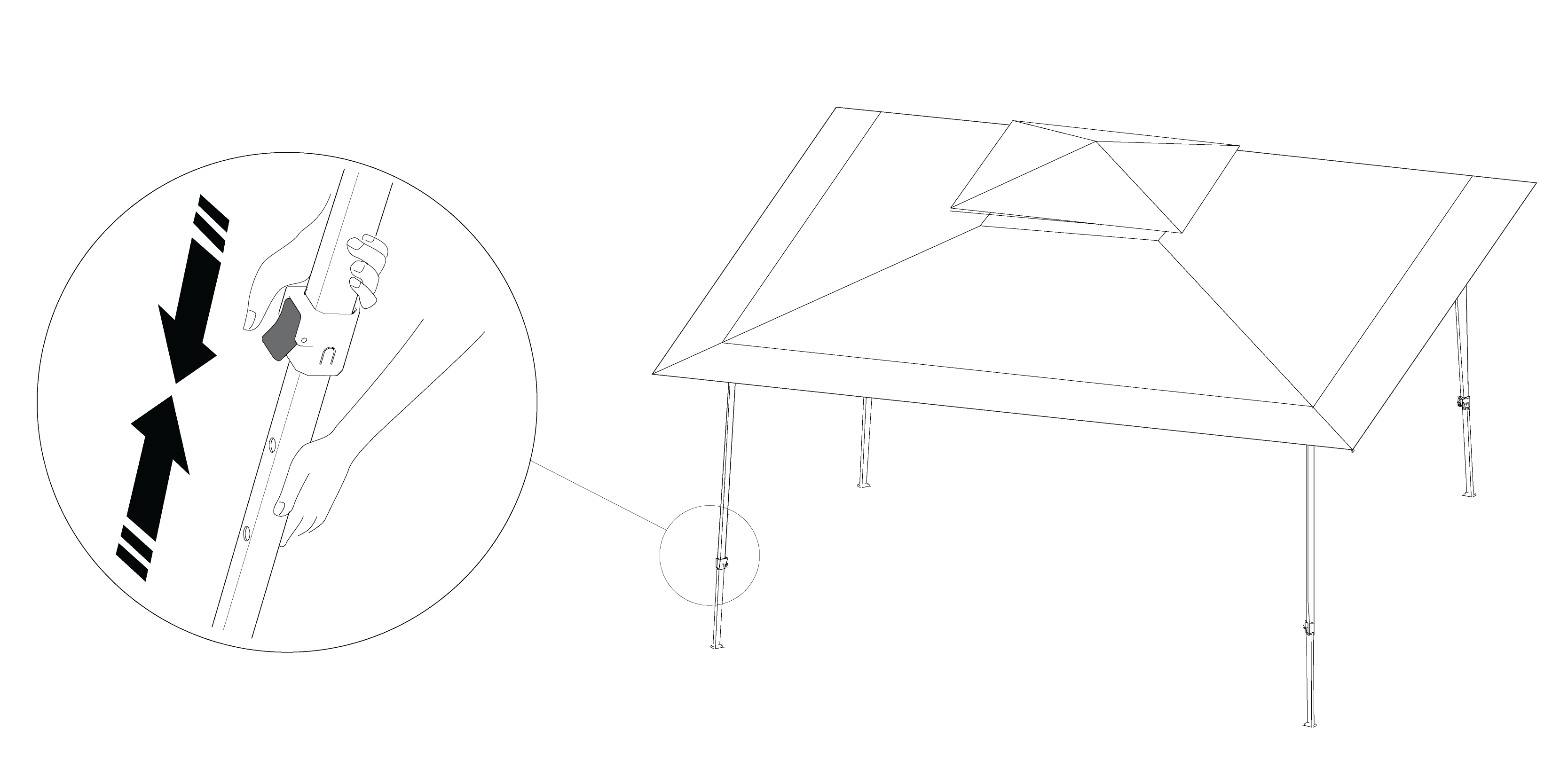

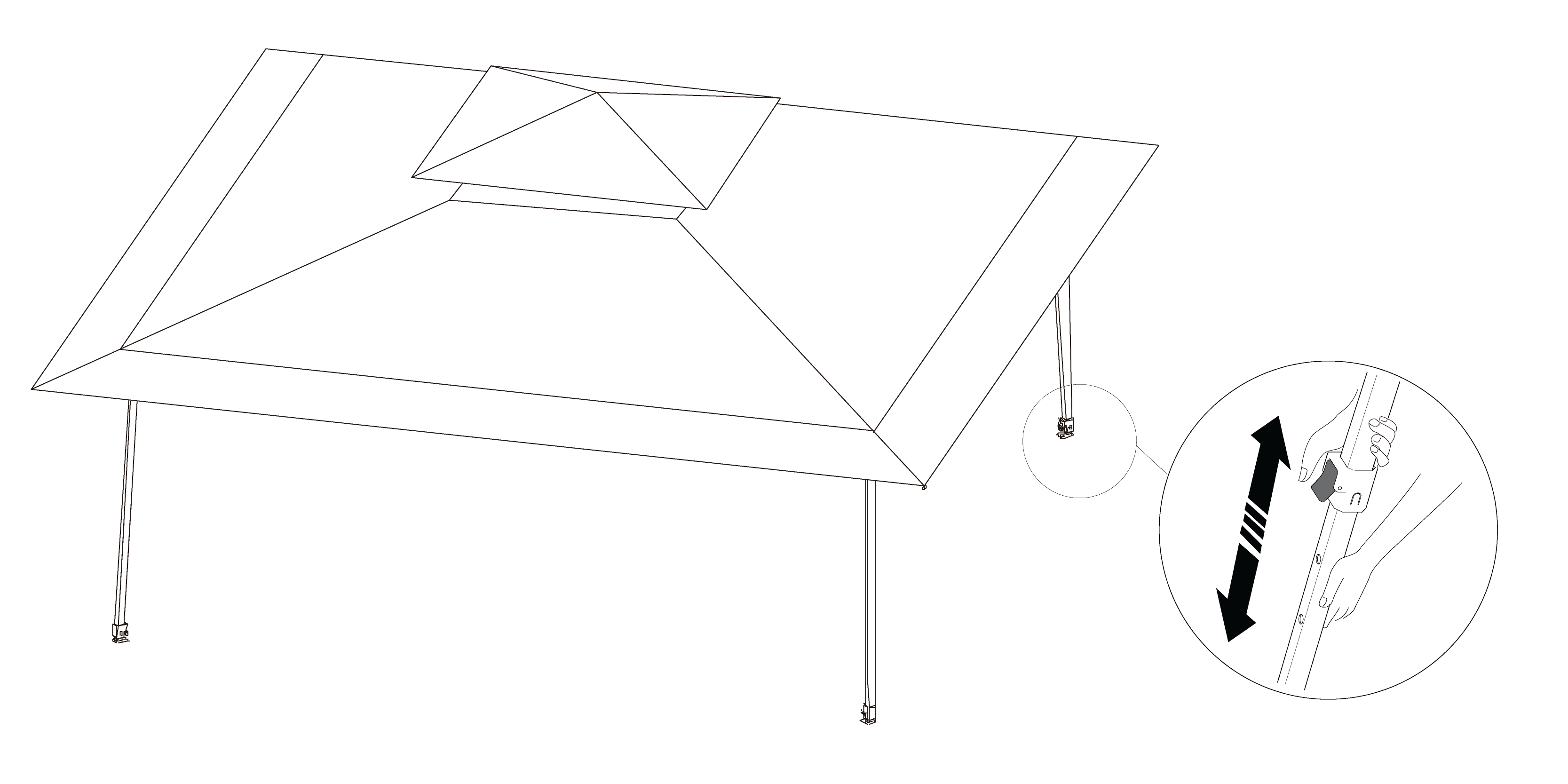

STEP 4 - ADJUST THE CANOPY HEIGHT

Lift up one side. Grasp the outer or upper leg with one hand and pull out the inner leg with the other.

Extend until the button engages.

Set legs to desired height.

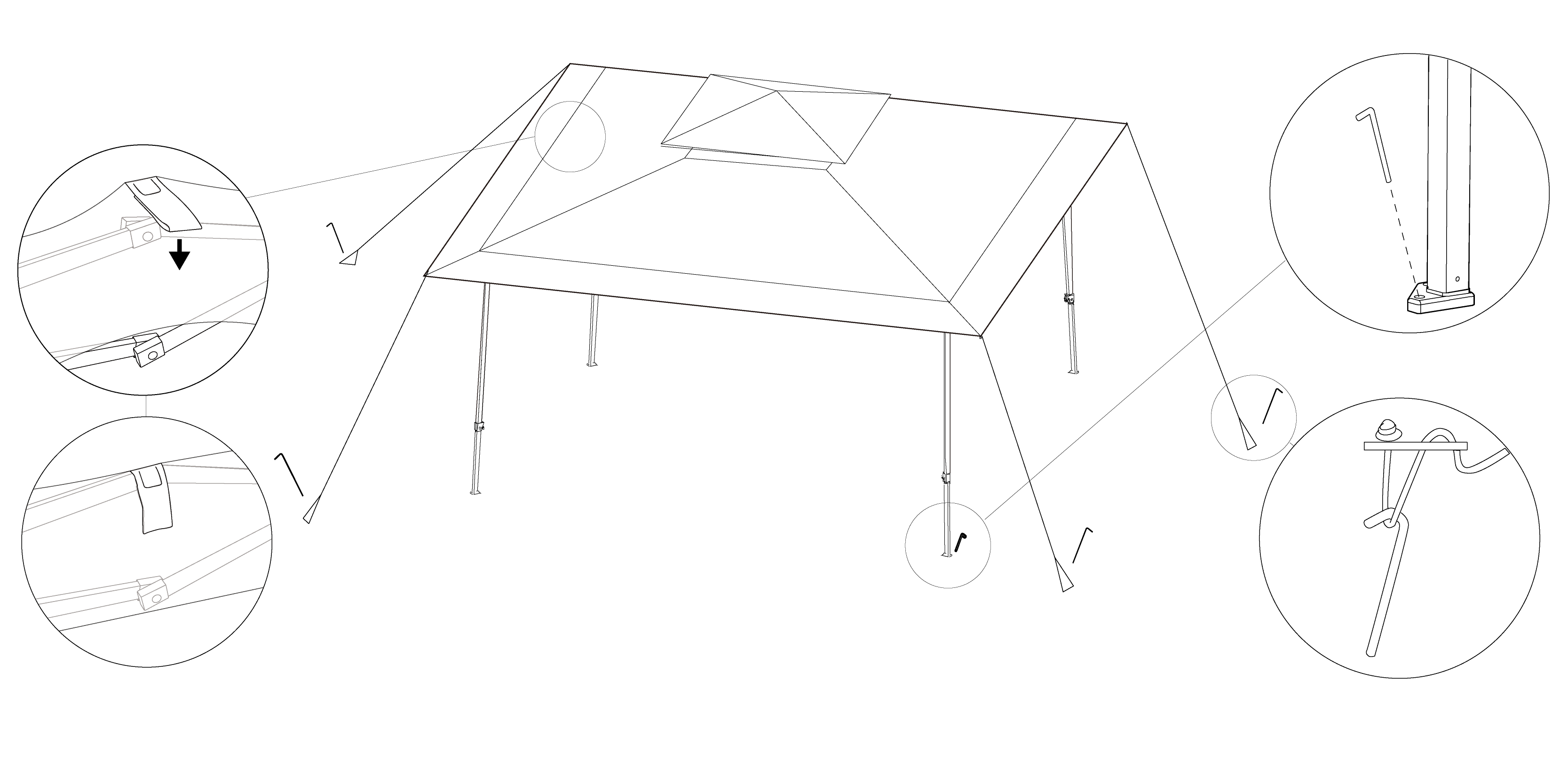

STEP 5 - SECURE THE CANOPY IN PLACE

Insert a stake into the foot pad of the leg.

Measure out each leg to a proper distance and secure four stakes (3) to the ground. Attach the ropes to the canopy top and tie the attached ropes to the stakes in the ground. Ensure the ropes have the proper tension by adjusting the plastic adjusters on the ropes.

Connect the plastic sheet at the top to the plastic part of the frame eave (red parts) to reduce water accumulation.

TAKE DOWN INSTRUCTIONS
STEP 1 - REMOVE THE STAKES AND RETRACT THE LEGS

Pull up all stakes from the ground.

Press the push button to lower all legs.

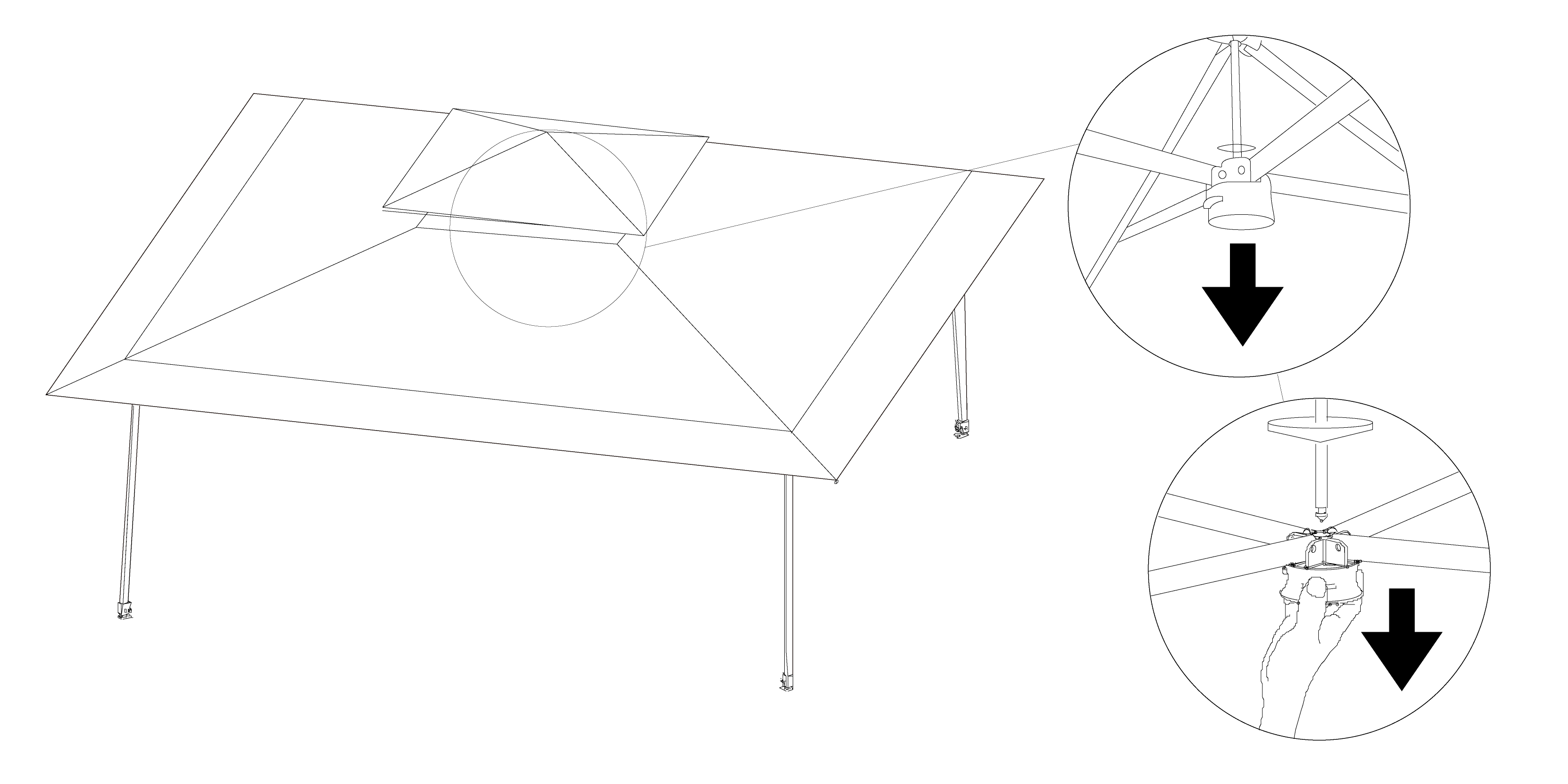

STEP 2 - UNLOCK THE CANOPY

From underneath the canopy, press in the red lock button. Pull down on the central hub until it is separated from the central pole.

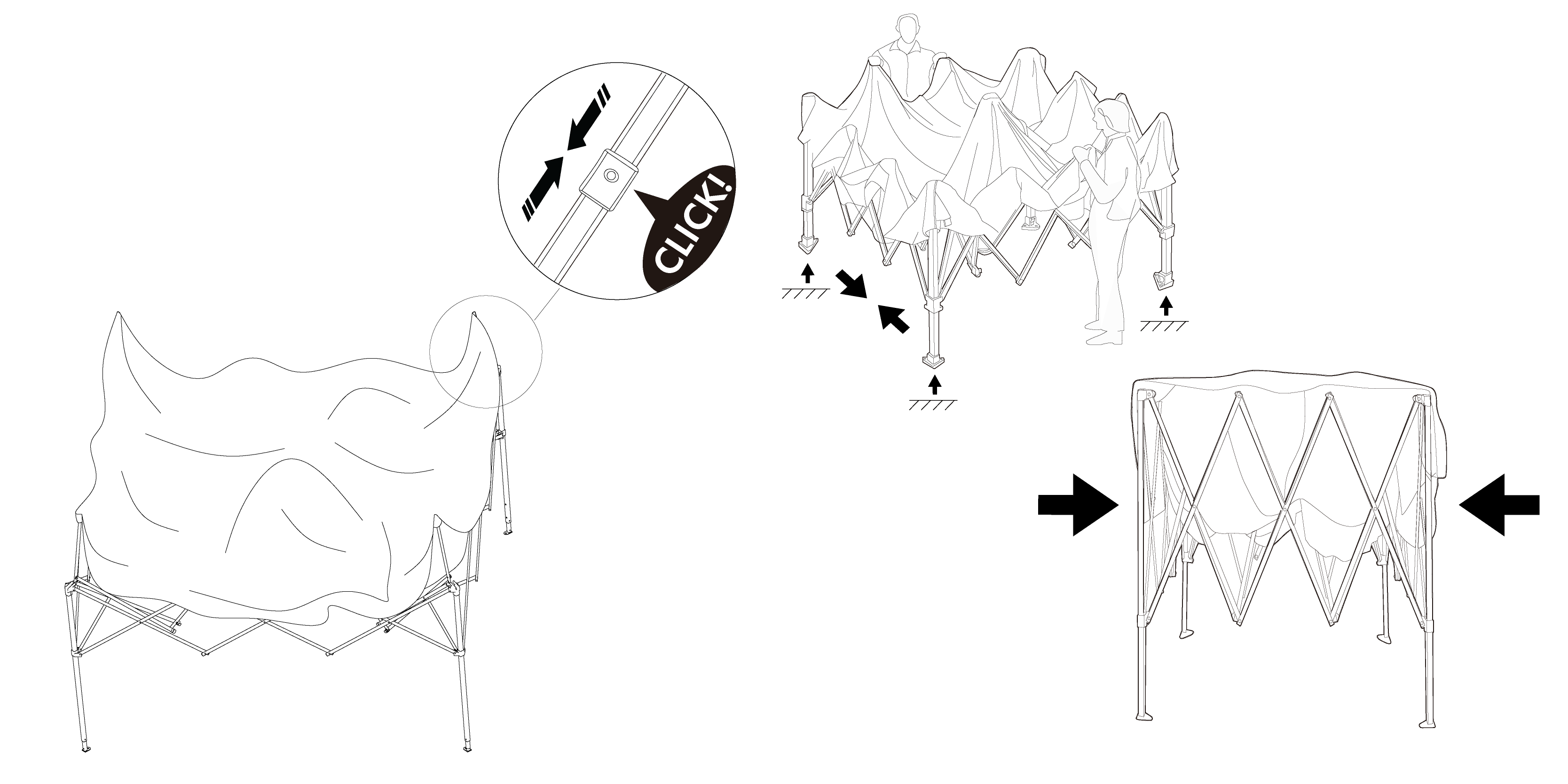

STEP 3 - FOLD THE FRAME

Release the push pin on the extension truss and slide it back into the peak truss.

Grasp the top of the trusses, lift slightly off the ground, and walk the frame in until closed.

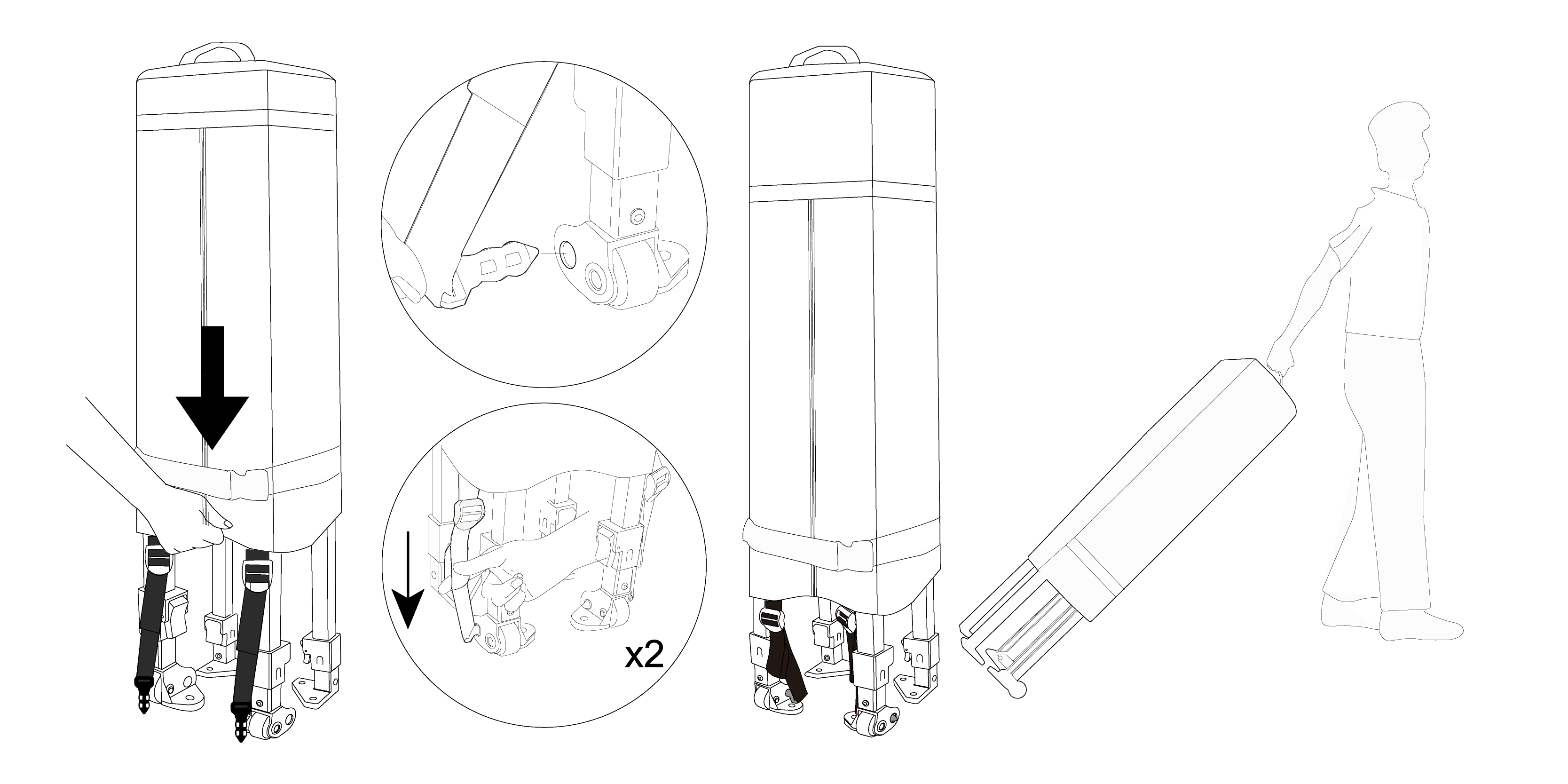

STEP 4 - PACK THE CANOPY IN THE STO 'N GO BAG

Position the cover bag straps to align with the 2 wheeled legs. Slide down the bag over the closed frame.

Loosen the strap and insert the red plug into the opening in the foot pad and tighten straps by pulling down the strap loop.
STEP 5 -

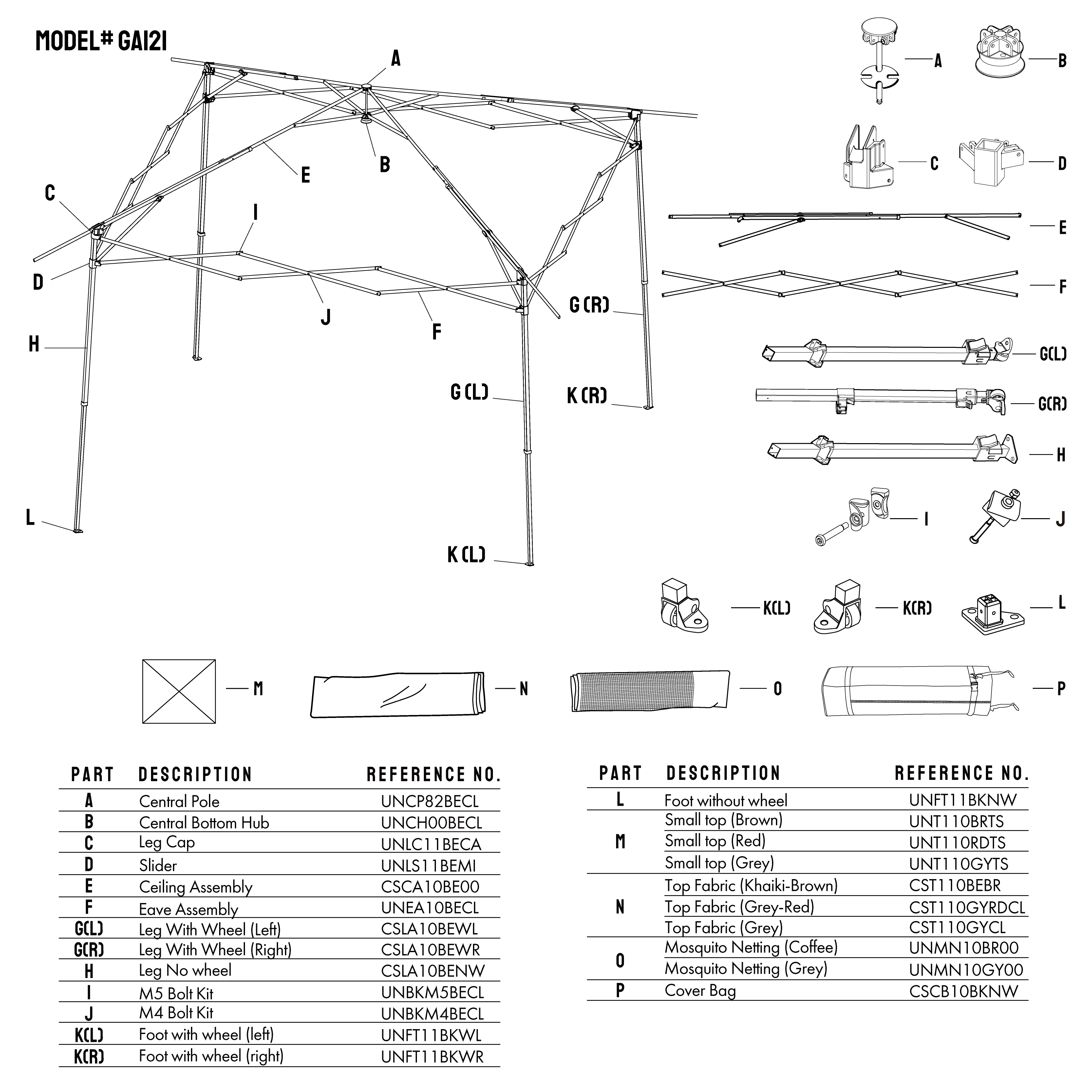

REPLACEMENT PARTS
