PRODUCT SUPPORT PAGE FOR THE

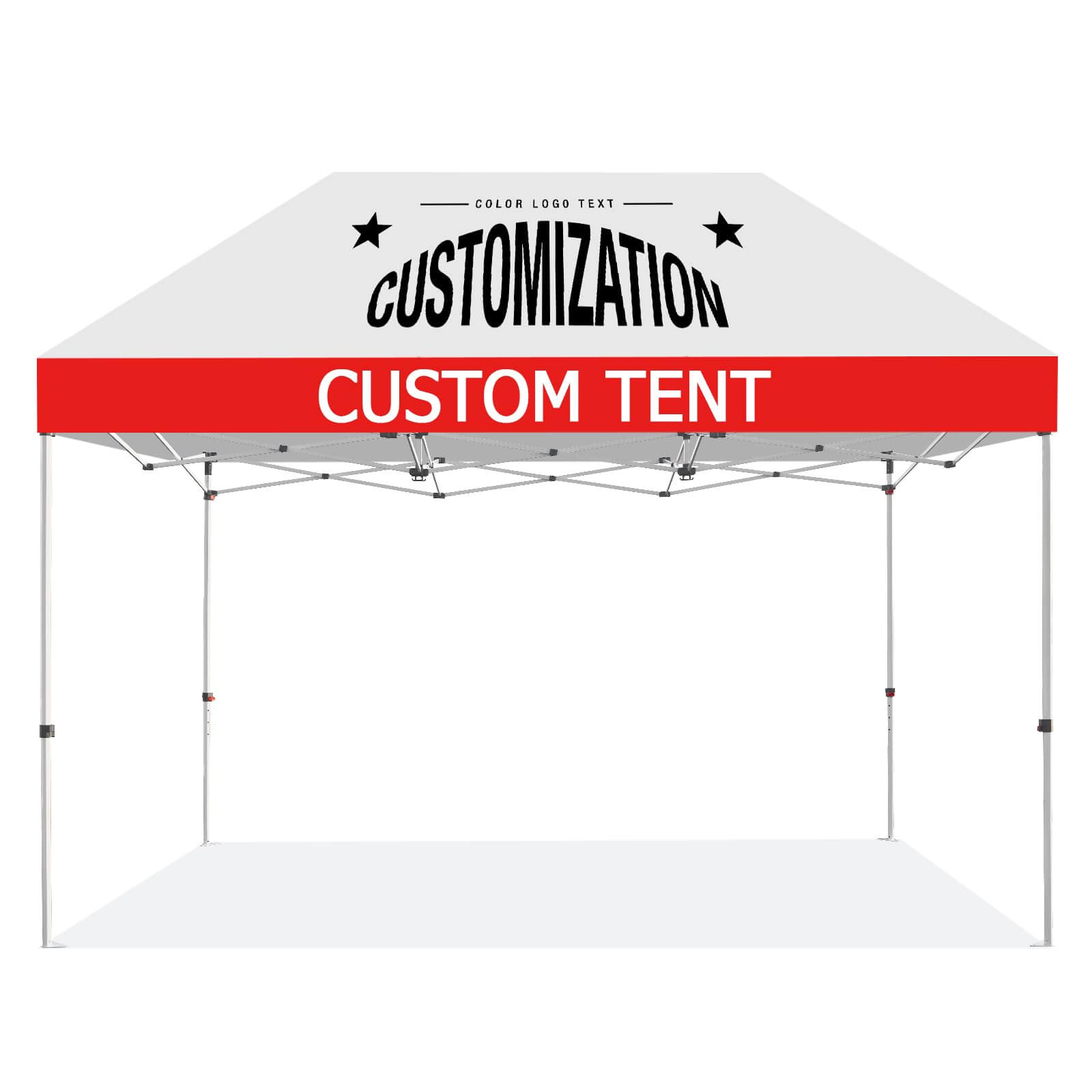

Crown Custom 15' x 10' Custom Printed Canopy - M150A-CU

Please take a few minutes to review the contents below to get the most out of your canopy.

ITEMS INCLUDED
  • 15' x 10' Steel Frame
  • Canopy Fabric Top
  • Rolling Storage Bag
  • 4 Weight Bags
  • 4 Guy Ropes
  • 8 Stakes

PRODUCT VIDEOS

Explainer Setup

SET UP INSTRUCTIONS
STEP 1 - OPEN THE FRAME & ATTACH THE CANOPY

With a partner, start on the narrow side and stand across from each other. Open the frame
at least 50% open.

Unfold the canopy and place on top of the canopy frame.

Secure the canopy to the corners of the canopy frame using the hook and loop straps.
STEP 2 - EXPAND THE FRAME

Grasp the middle trusses on the bottom marked "OPEN HERE.

Lift slightly off the ground and walk back spreading the trusses open.
STEP 3 - LOCK THE FRAME

Lock each corner, by compressing the truss section at each leg top, until you hear "CLICK".

Secure the canopy top with webbing straps by wrapping over the truss.

STEP 4 - ADJUST THE CANOPY HEIGHT

With your partner at the long side to raise the canopy by sliding the lower inner leg until the leg push button locks at the desired height.

Repeat the above on the opposite side.
STEP 5 - SECURE THE CANOPY IN PLACE

Insert a stake into the foot of each canopy leg.

Measure out each leg to a proper distance and secure four stakes (H) to the ground.

Attach the guy ropes to the canopy top and tie the attached ropes to the stakes in the ground.

Ensure the ropes have the proper tension by adjusting the plastic adjusters on the ropes.

TAKE DOWN INSTRUCTIONS
STEP 1 - REMOVE THE STAKES & RETRACT THE LEGS

Pull up all stakes from the ground.

Press the push button to lower all legs.
STEP 2 - UNLOCK THE CANOPY

From underneath the canopy, releasing all the webbing straps.

Press in the red lock button on the leg assembly to lower each leg.
STEP 3 - COLLAPSE THE FRAME

Lift the canopy off the ground 2-3 inches and walk it in from both sides until the frame is fully closed.
STEP 4 - PACK THE CANOPY INTO THE STORAGE BAG

Slide down the bag over the closed frame.

Then slide metal plate underneath foot pad leg.

Tighten the inside Velcro firmly.

Zip the bag closed.

Secure the frame with the buckle and tighten the strap.
STEP 5 - ATTACH THE STORAGE BAG WHEELS

Separate the wheel from the axle.

Insert each wheel axle into the hole provided on the metal plate at the base of the cover bag.

Lock the wheel tight with the provided hex wrench.

REPLACEMENT PARTS
