PRODUCT SUPPORT PAGE FOR THE

Crown Shades 10' x 10' CenterLOK® Canopy - Infinite Leg - TS100A

Please take a few minutes to review the contents below to get the most out of your canopy.

ITEMS INCLUDED

PRODUCT VIDEOS

SET UP INSTRUCTIONS

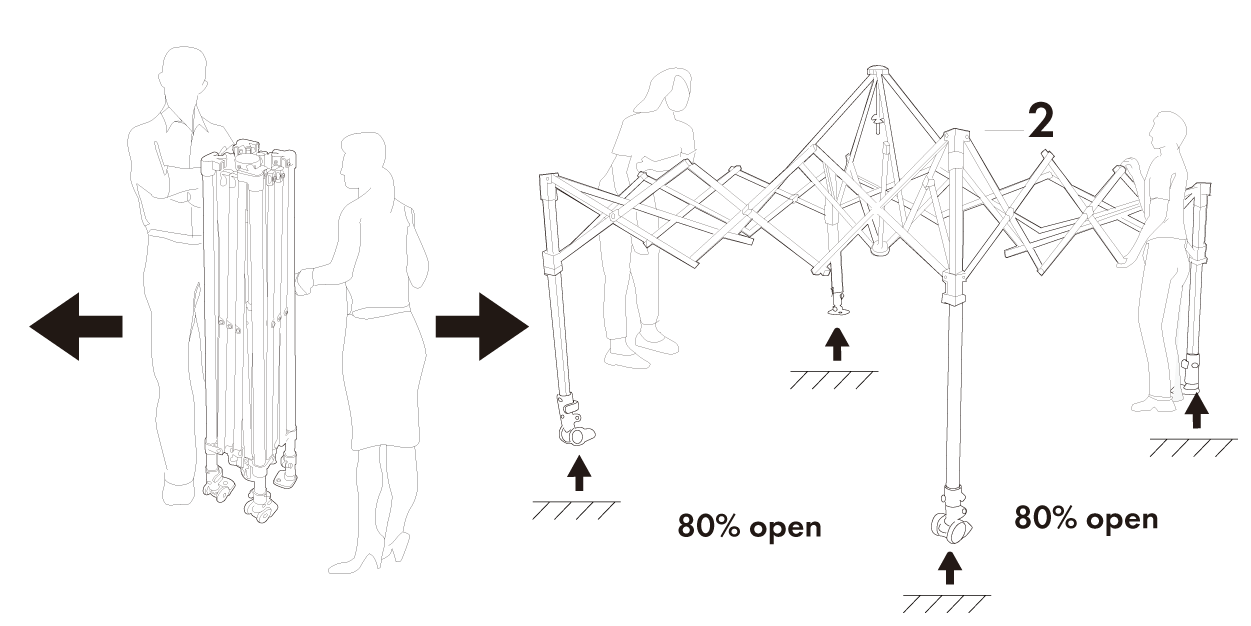

STEP 1 - OPEN THE CANOPY FRAME

With a partner, stand across from each other.

Grasp a truss at the top of the frame and the other truss at the bottom, as shown.

Lift slightly off ground and step backwards while squeezing trusses together.

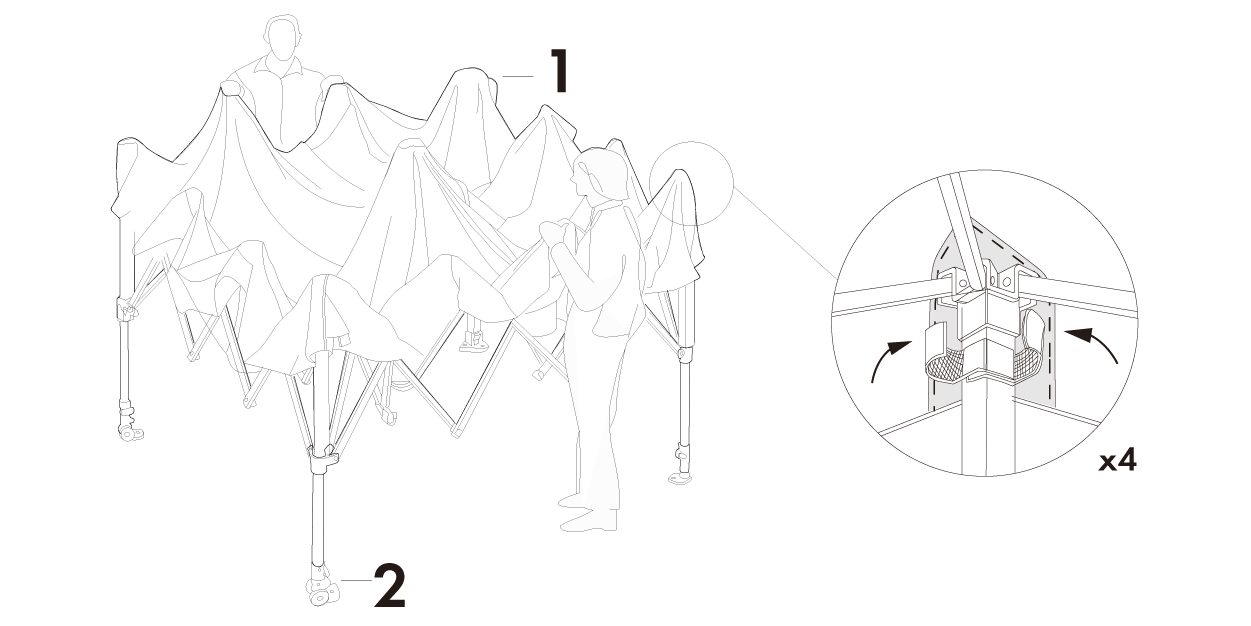

STEP 2 - ATTACH THE CANOPY FABRIC

Unfold the canopy and place on top of the canopy frame.

Secure the canopy top to the corners of the canopy frame using the hook & loop fabric connections.

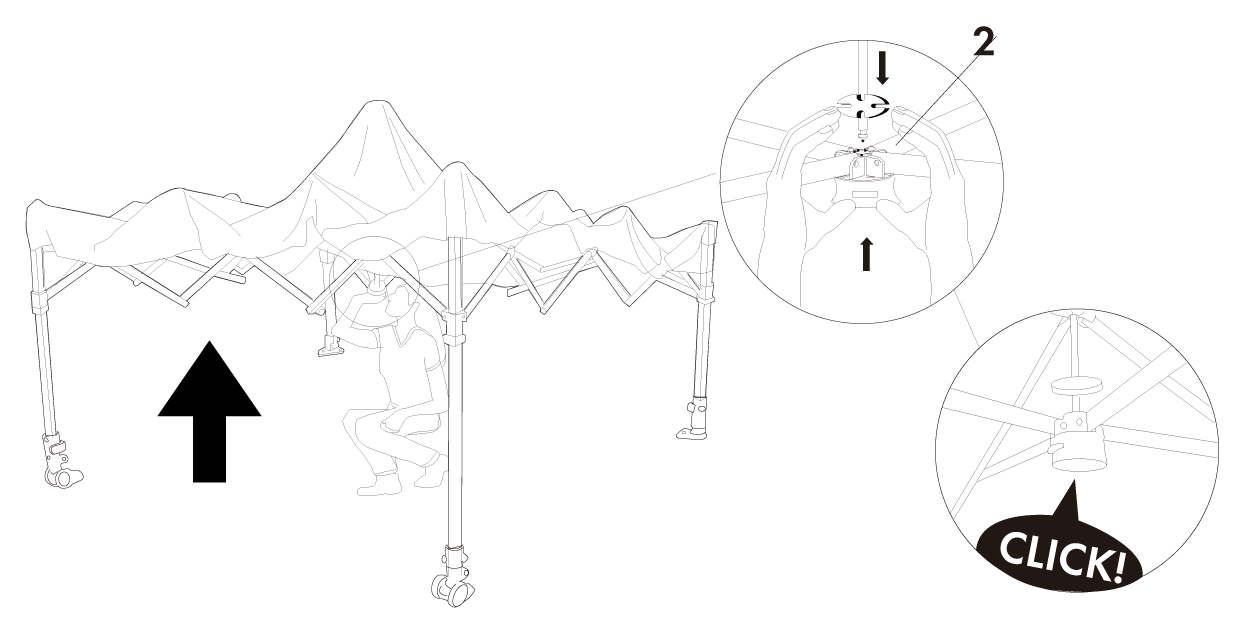

STEP 3 - LOCK THE FRAME

Lift up one side of the frame and walk under it.

Place one hand on the upper frame and use the other hand to push the central hub straight up until it clicks into the central pole.
STEP 4 - ADJUST THE CANOPY HEIGHT

Unlock the switch and loosen the screws.

Lift up one side. Grasp the outer or upper leg with one hand and pull out the inner leg with the other.

Set legs to desired height.

Tighten the screws and lock the switch.

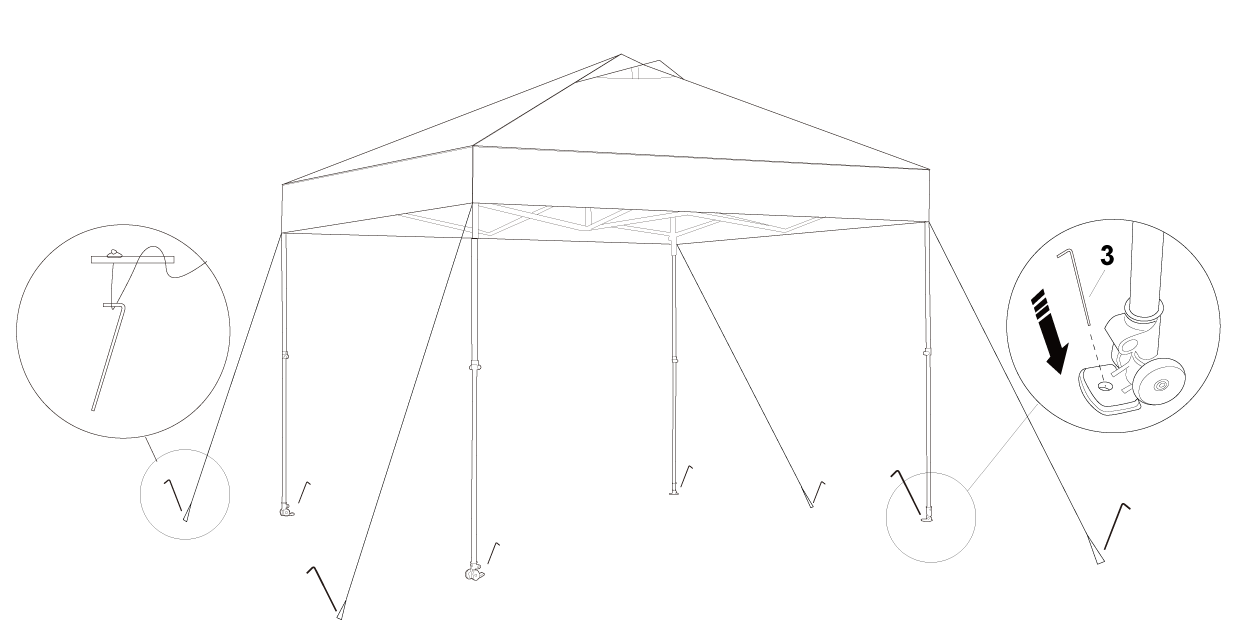

STEP 5 - SECURE THE CANOPY IN PLACE

Insert a stake into the foot of each canopy leg.

Measure out each leg to a proper distance and secure four stakes to the ground.

Attach the ropes to the canopy top and tie the attached ropes to the stakes in the ground.

Ensure the ropes have the proper tension by adjusting the plastic adjusters on the ropes.

Slide the locking tab over the knob to secure the top tightly.

TAKE DOWN INSTRUCTIONS

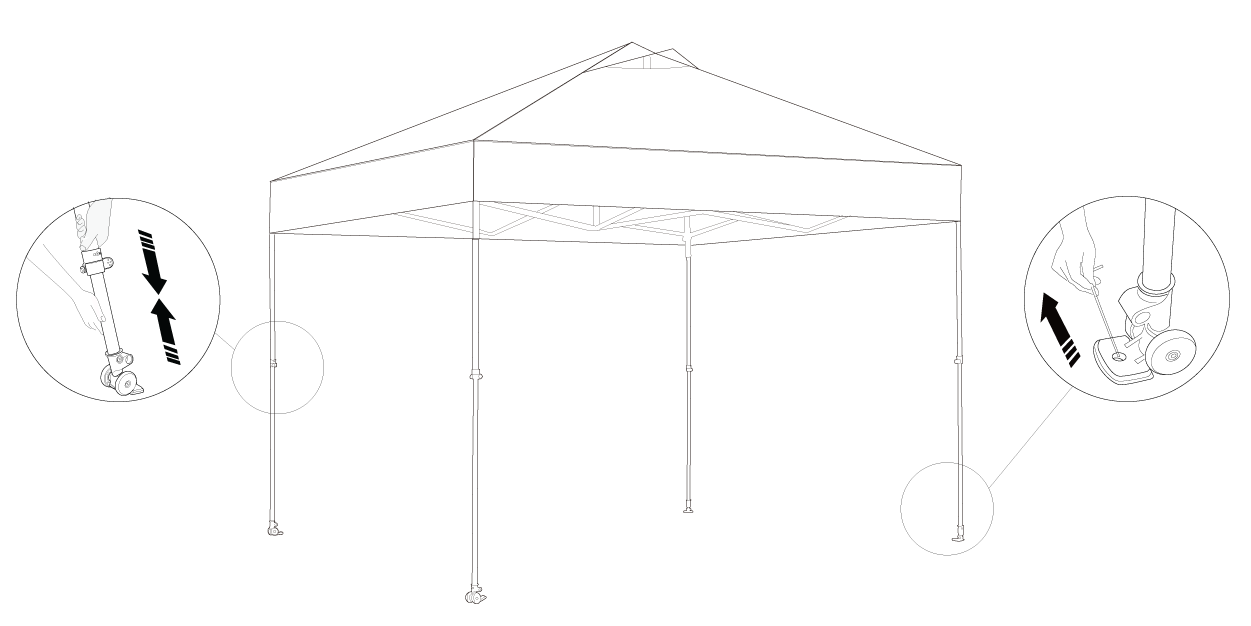

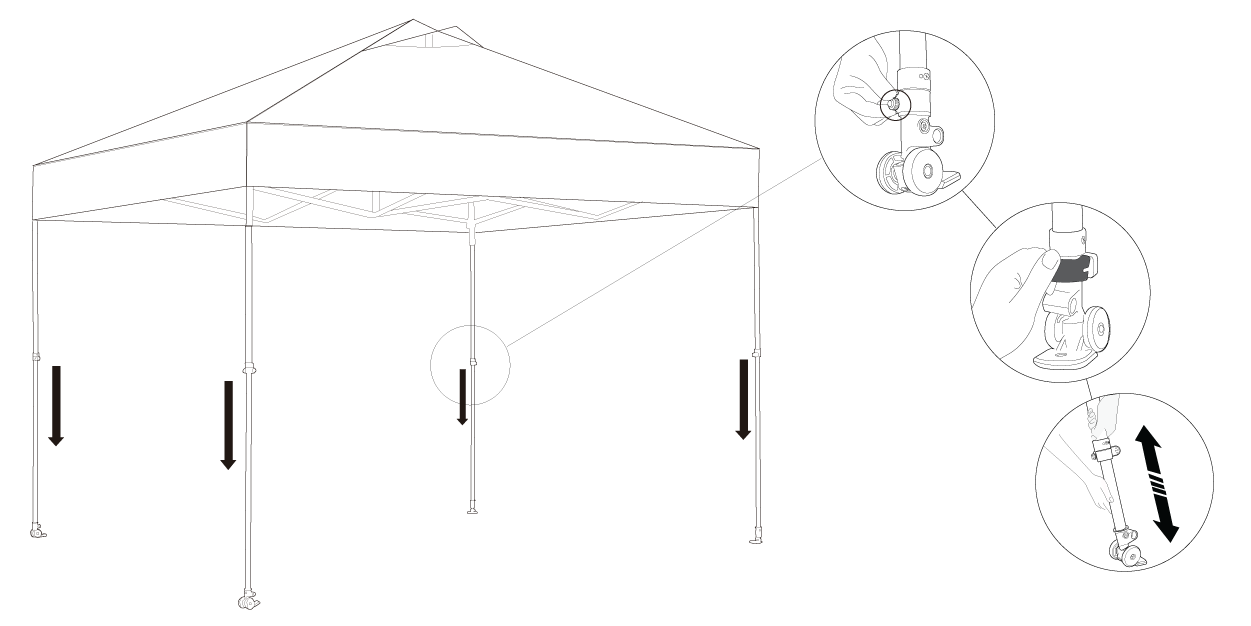

STEP 1 - REMOVE THE STAKES AND RETREACT THE LEGS

Pull up all stakes from the ground.

Unlock the switch and lower all legs.

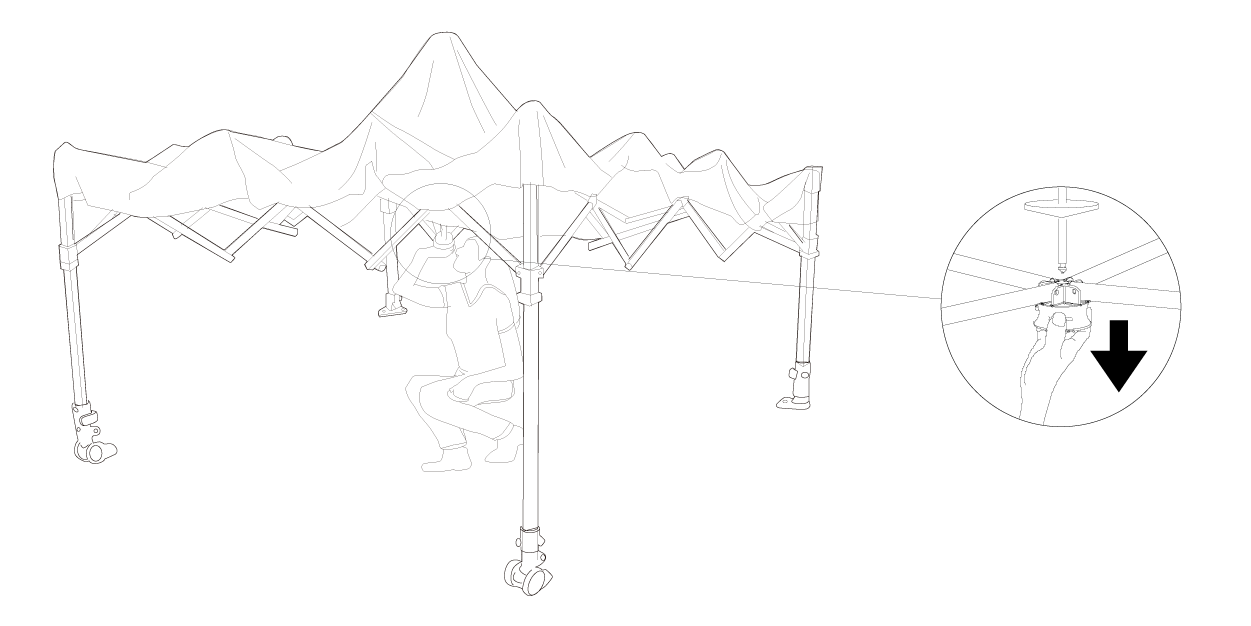

STEP 2 - UNLOCK THE CANOPY

From underneath the canopy, press in the orange lock button.

Pull down on the central hub until it is separated from the central pole.

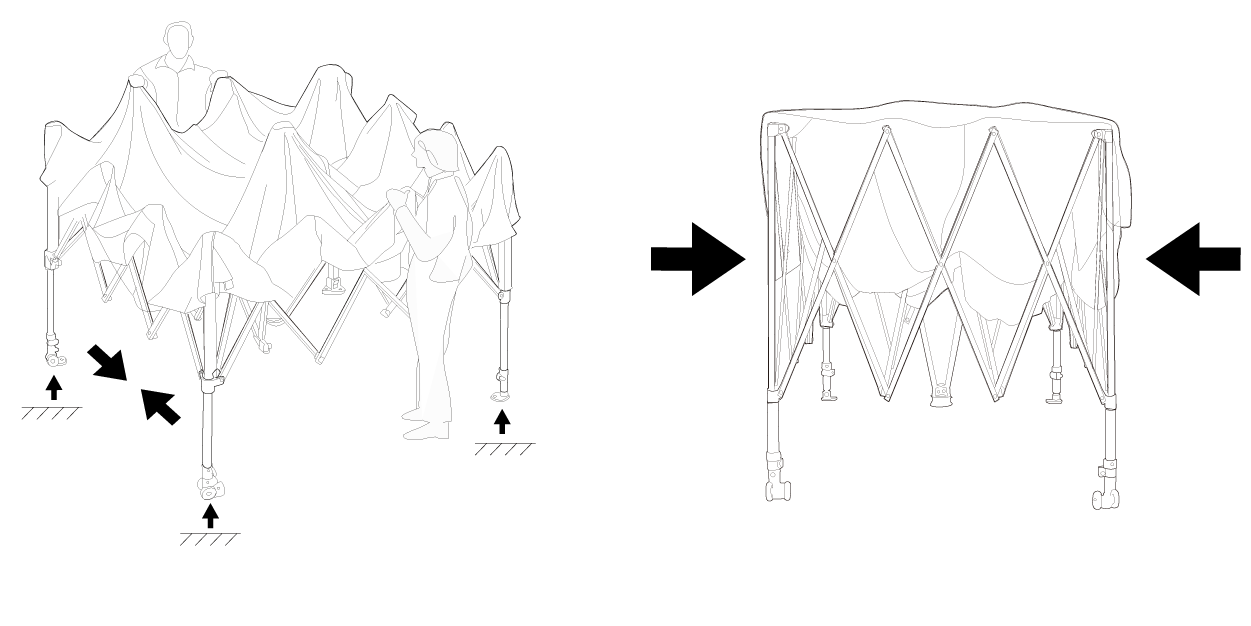

STEP 3 - FOLD THE FRAME

Lift the canopy off the ground 2-3 inches and walk it in from both sides until the frame is fully closed.

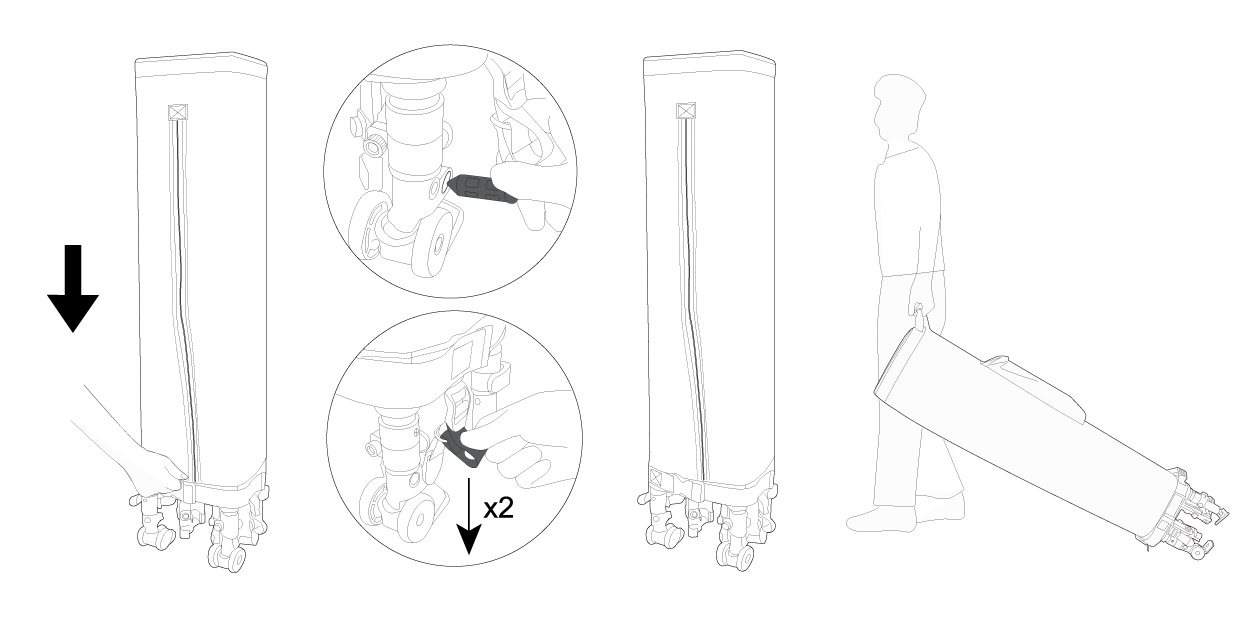

STEP 4 - PACK THE CANOPY IN THE STORAGE BAG

Position the cover bag zip to align with the 2 wheeled legs.

Slide down the bag over the closed frame and zipped.

Loosen the strap and insert the red plug into the opening in the foot pad and tighten straps by pulling down the strap loop.
STEP 5 -

REPLACEMENT PARTS
