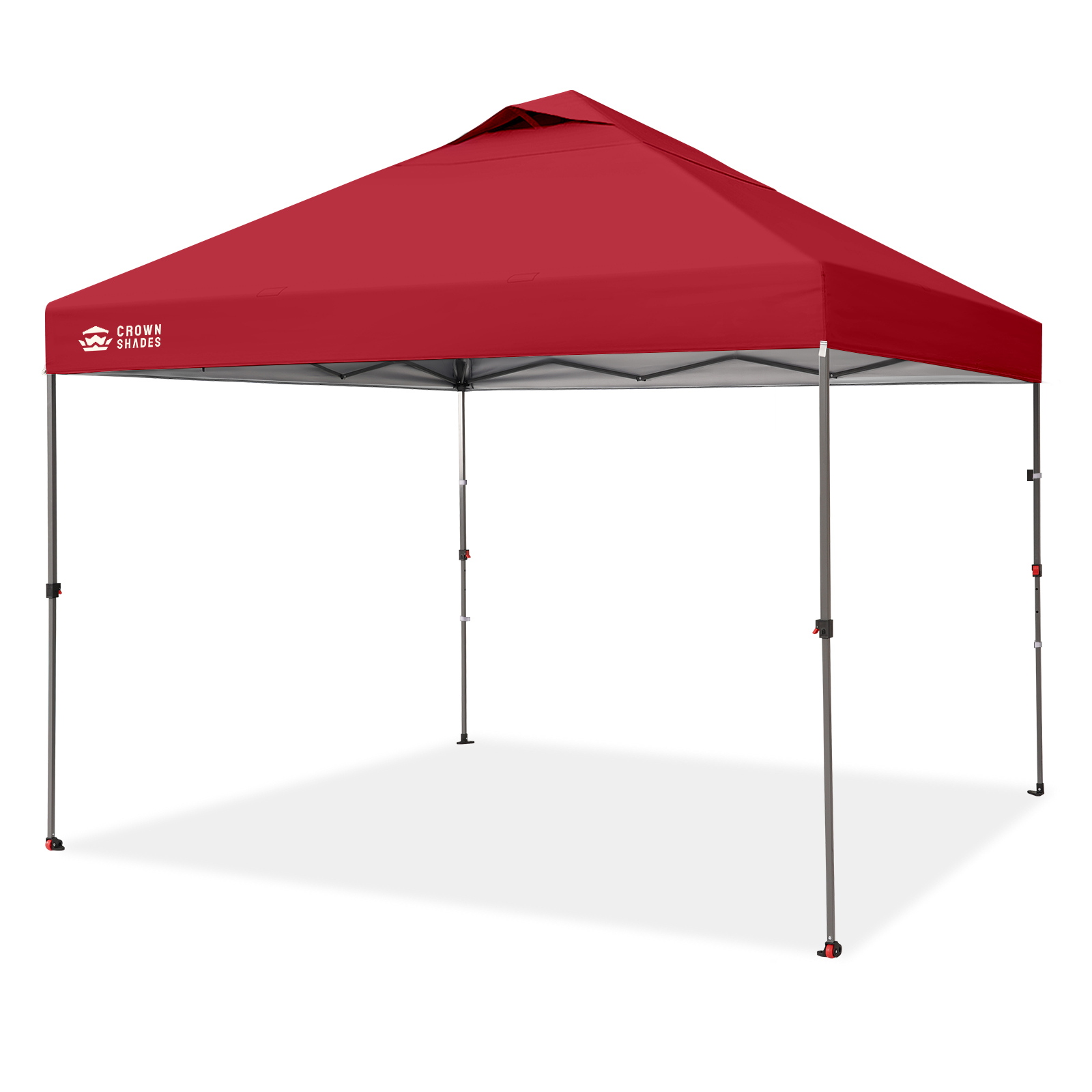

Crown Shades 10' x 10' CenterLOK® Canopy - RS100F

PRODUCT SUPPORT PAGE FOR THE

Crown Shades 10' x 10' CenterLOK® Canopy - RS100F

Please take a few minutes to review the contents below to get the most out of your canopy.

ITEMS INCLUDED

PRODUCT VIDEOS

SET UP INSTRUCTIONS

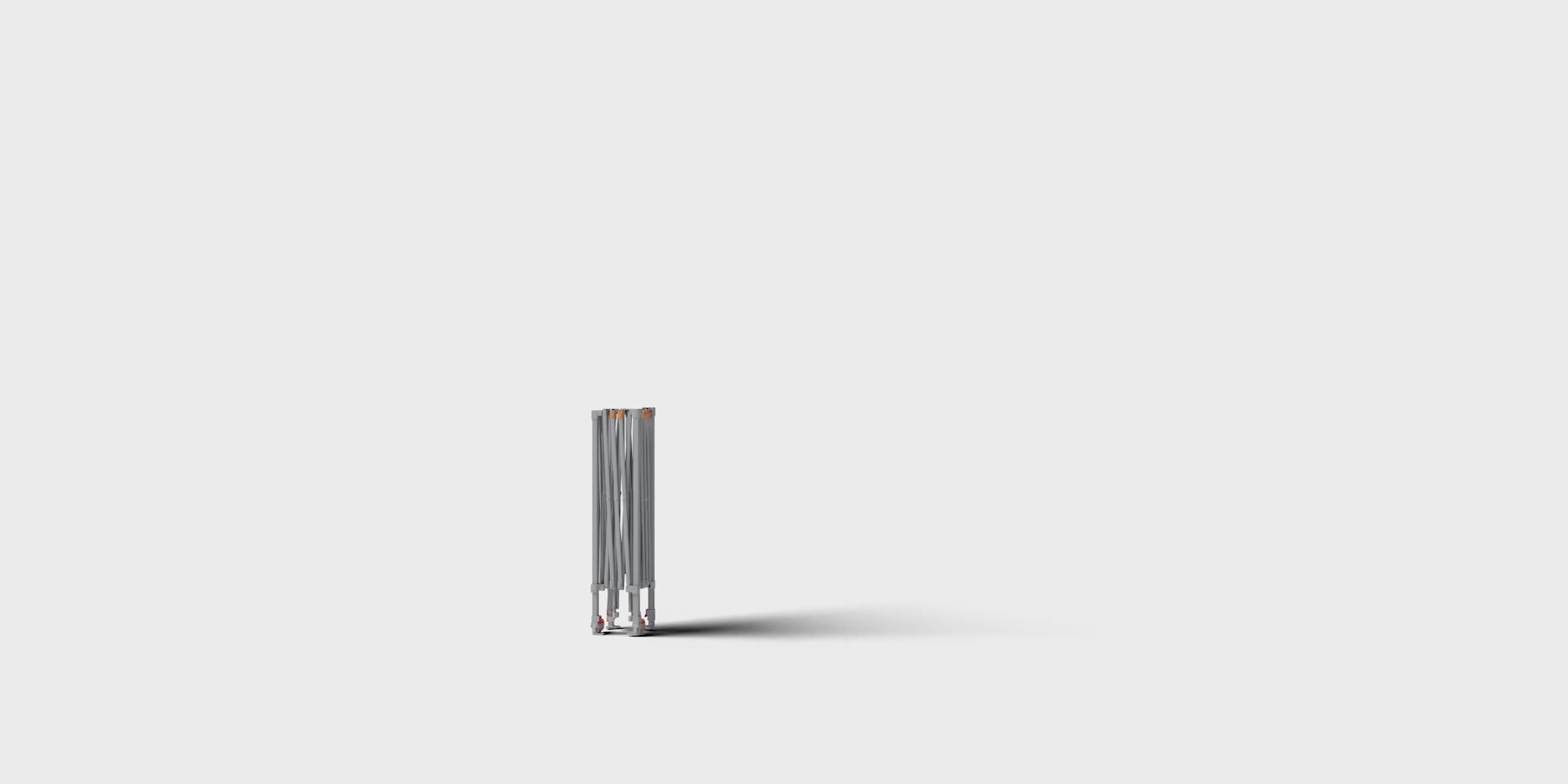

STEP 1 - OPEN THE CANOPY FRAME

With a partner, stand across from each other.

Grasp a truss at the top of the frame and the other truss at the bottom, as shown.

Lift slightly off ground and step backwards while squeezing trusses together.
STEP 2 - ATTACH THE CANOPY

Unfold the canopy and place the fabric top over the canopy frame.

Secure the canopy fabric to each of the corners of the frame using the hook & loop fabric.

Connect each Fast Clip from the fabric to an adjacent red truss joint on the frame.
STEP 3 - LOCK THE FAME

Lift up one side of the frame and walk under it.

Lift the central hub up until it locks into position at the base of the vertical central pole.

STEP 4 - ADJUST THE CANOPY HEIGHT

Grasp each leg with one hand and pull out the inner leg with the other hand.

Extend the leg until the button engages with a click.

Press the red button to further extend each leg.

STEP 5 - SECURE THE CANOPY

Insert a stake through the hole on each canopy foot and anchor it into the ground.

Connect a guy rope to the white webbing tabs at each lower corner of the fabric top. Stretch the guy rope down to the ground at a 45 degree angle and anchor a stake where it meets the ground. Cinch the guy rope by sliding the plastic tab upwards, while the stake is in the farthest loop created by the tab.

Fill each weight bag with sand or stones and attach it to each leg using the hook and loop fabric tabs.

TAKE DOWN INSTRUCTIONS
STEP 1 - REMOVE THE STAKES

Pull up stakes from the ground.

Wind up Guy Ropes.

Detach & empty weight bags.
STEP 2 - RETRACT THE LEGS

Press the button mid way up each leg to release and retract the lower leg.
STEP 3 - UNLOCK THE CANOPY

From beneath the canopy, press the button at the central hub to release it, and pull the hub downward to begin collapsing the frame.

STEP 4 - FOLD THE FRAME

From the outside of the canopy, lift the upper part of the truss so the feet leave the ground, then walk it inward to collapse the frame.

As the frame draws smaller, you can reposition your hands to grip the top of adjacent legs to safely collapse the frame to it's smallest size.
STEP 5 - PACK THE CANOPY IN THE STO 'N GO COVER

Position the Sto 'N Go cover bag zipper to align between the adjacent wheeled legs.

Slide the cover bag down over the closed frame. Zip the cover closed.

Buckle the large webbing strap and cinch it tightly, then attach the loose end with the hook & loop fabric.

Loosen the webbing straps on the dangling rocket plugs. Then insert each rocket plug into the nearest wheeled foot - there is a socket that runs parallel to the wheel axles. Finally cinch each webbing loop so the plug stays inserted.
