PRODUCT SUPPORT PAGE FOR THE

Crown Shades 10' x 14' CenterLOK® Canopy - Single Awning - G140C

Please take a few minutes to review the contents below to get the most out of your canopy.

ITEMS INCLUDED
  • 14' x 10' Steel Frame
  • Canopy Fabric Top
  • Sto 'N Go Cover Bag
  • 4 Weight Bags
  • 4 Guy Ropes
  • 8 Stakes

PRODUCT VIDEOS

SET UP INSTRUCTIONS

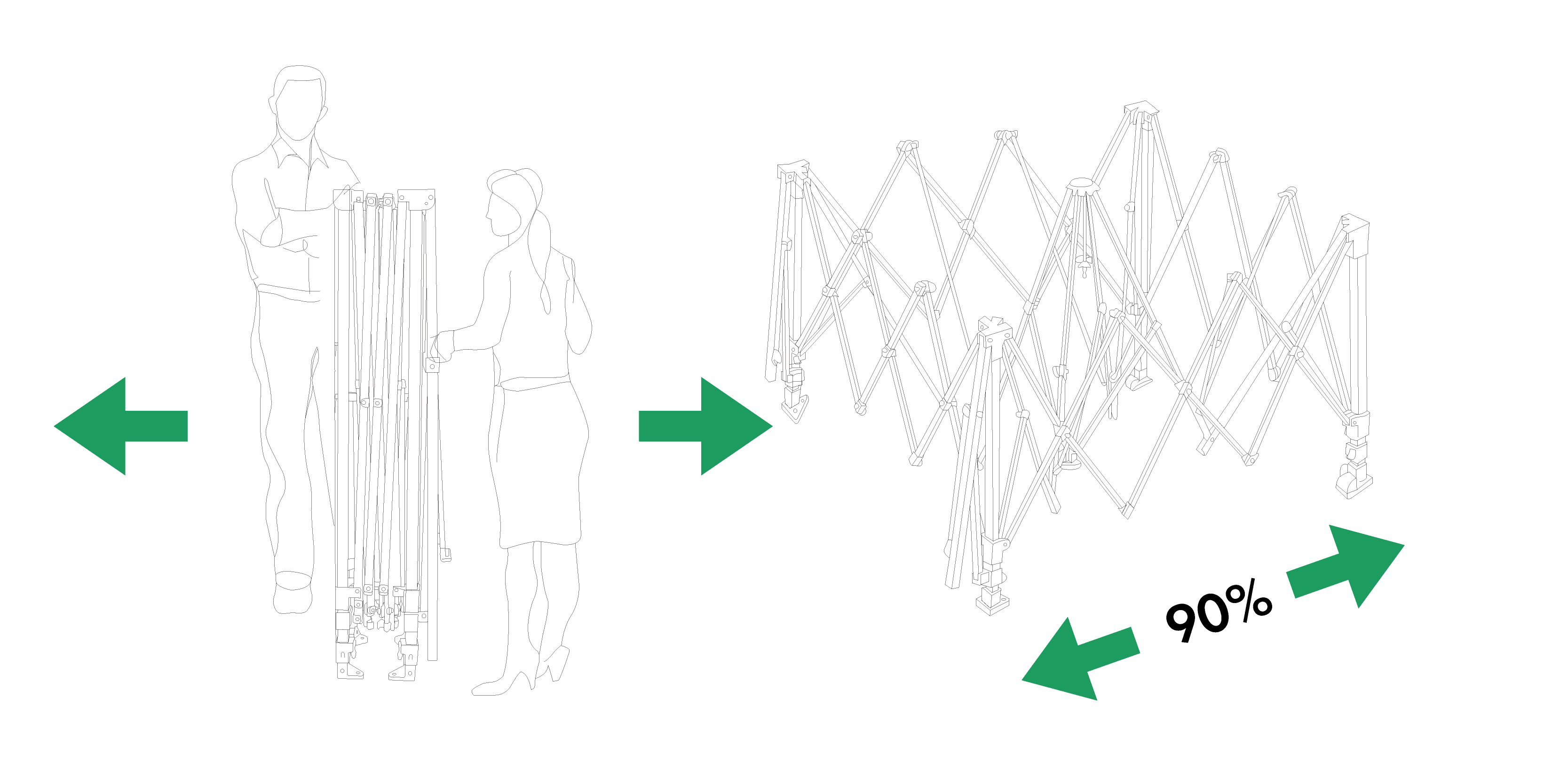

STEP 1 - OPEN THE FRAME

Grasp a truss at the top of the frame and the other truss at the bottom, as shown. Lift slightly off ground and step backwards while squeezing trusses together.

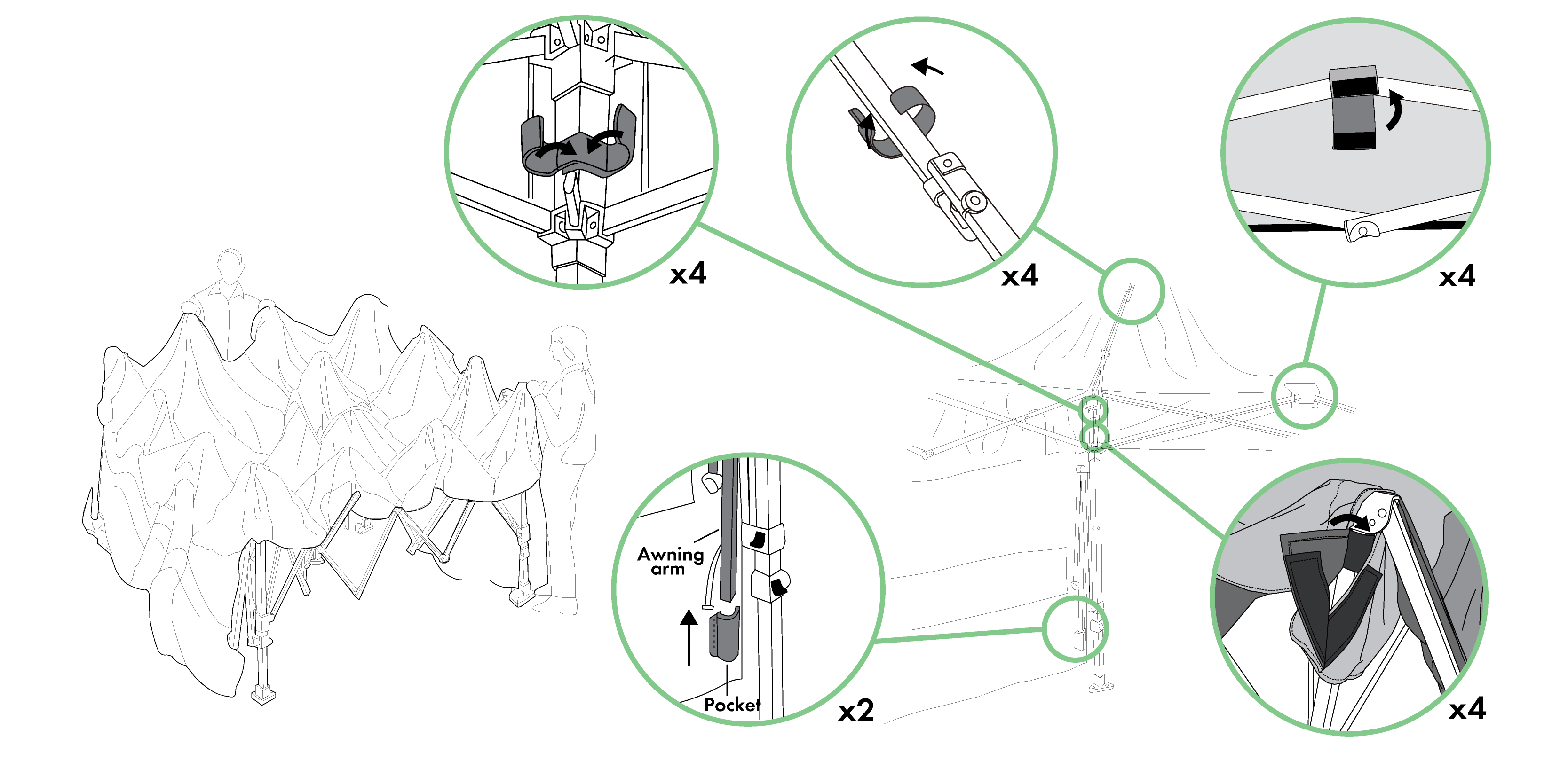

STEP 2 - ATTACH THE CANOPY FABRIC

Unfold the canopy top over the frame.

Line up the awning panel on same side as the awning hardware. Insert awning panel pockets on the awning arms.

Secure canopy to the corner of the frame and wrap the fabric flaps together with the hook and loop strips.

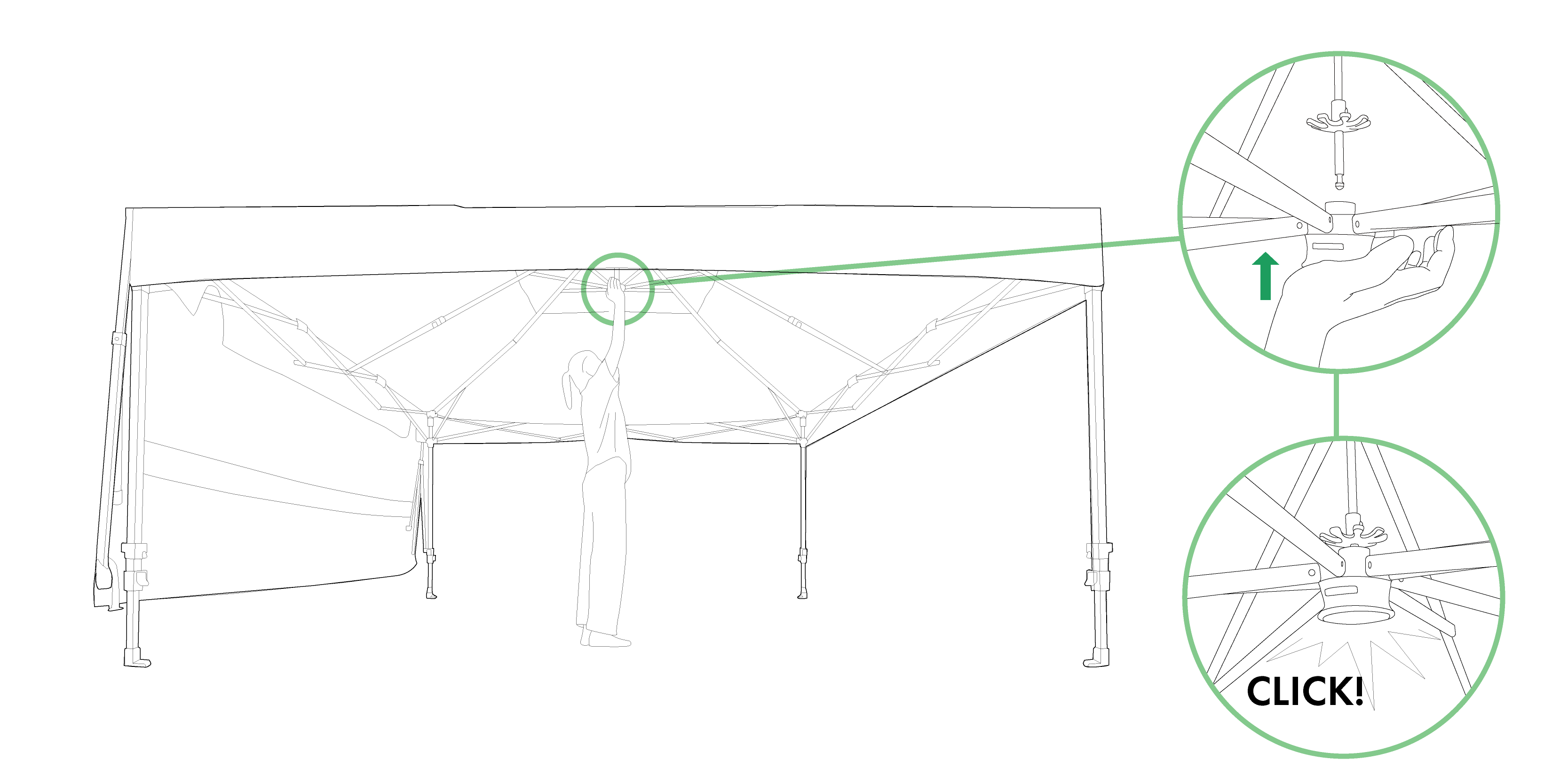

STEP 3 - LOCK THE FRAME

Lift up one side of the frame and walk under it.

Place one hand on the upper frame and use the other hand to push the central hub straight up until it clicks into the central pole.

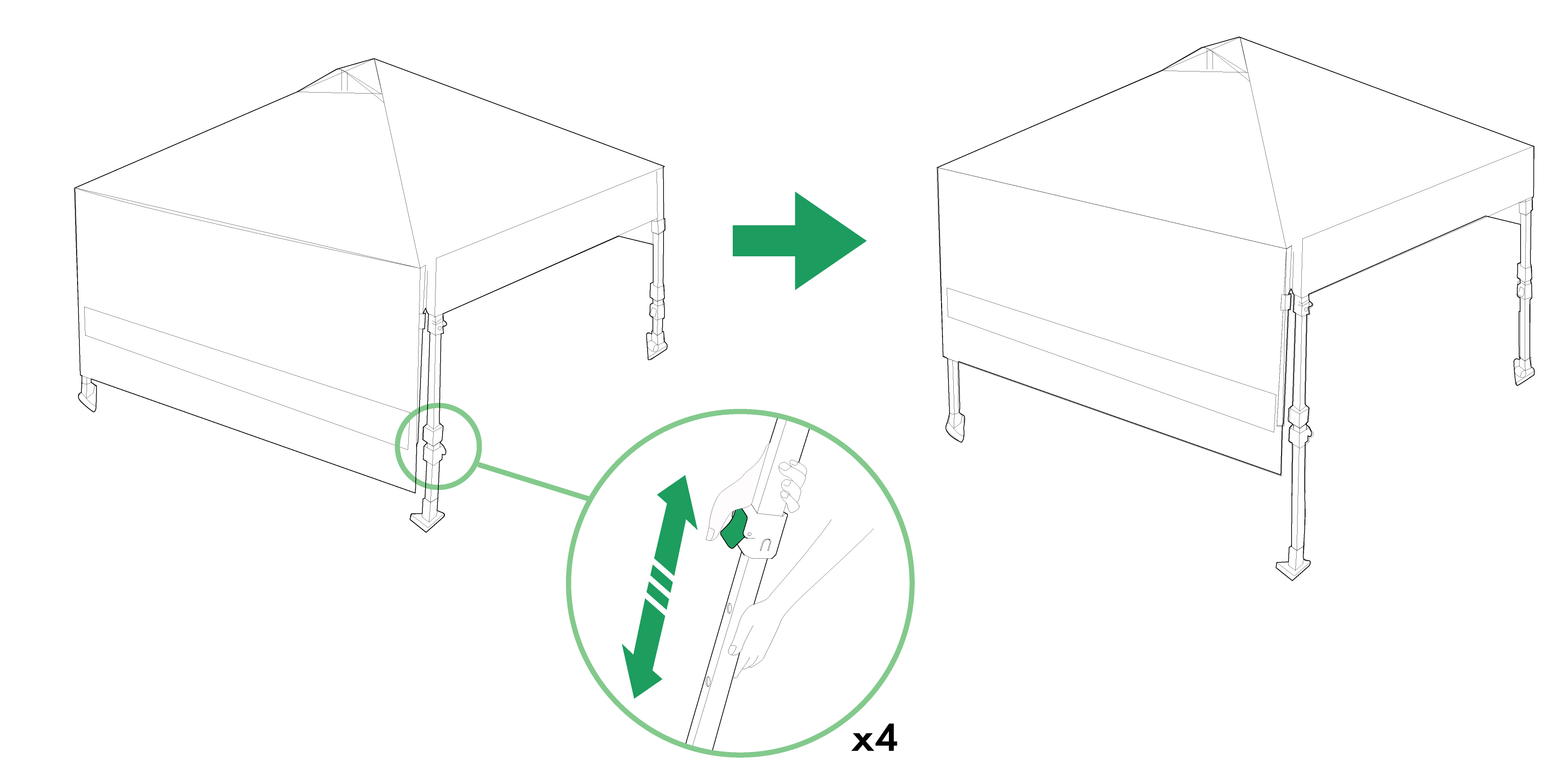

STEP 4 - ADJUST THE HEIGHT

Grasp the outer or upper leg with one hand and pull out the inner leg with the other.

Extend each leg until the button engages.

Set legs to desired height.

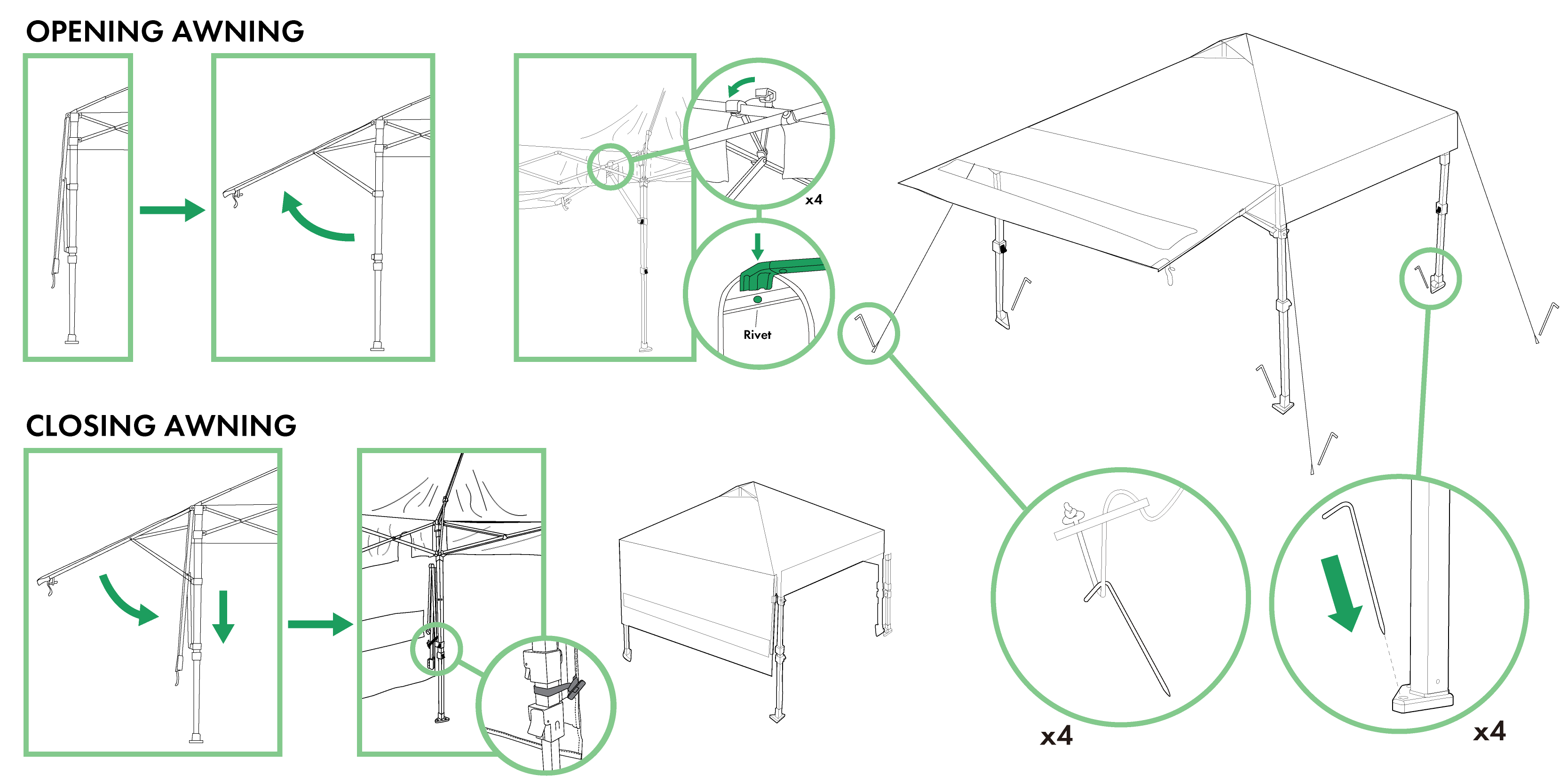

STEP 5 - OPEN THE AWNING PANELS & ANCHOR

Swing up one awning arm until the support arm locks into the hole on leg.

Rotate the stabilizer bar and slide over the rivet on the upper perimeter truss as shown.

For awning down, be sure to secure the toggle from the awning around the leg.

Insert a stake into the foot of each leg. Attach Guy Ropes to each lower corner of the fabric top and anchor each to the ground with significant tension.

TAKE DOWN INSTRUCTIONS

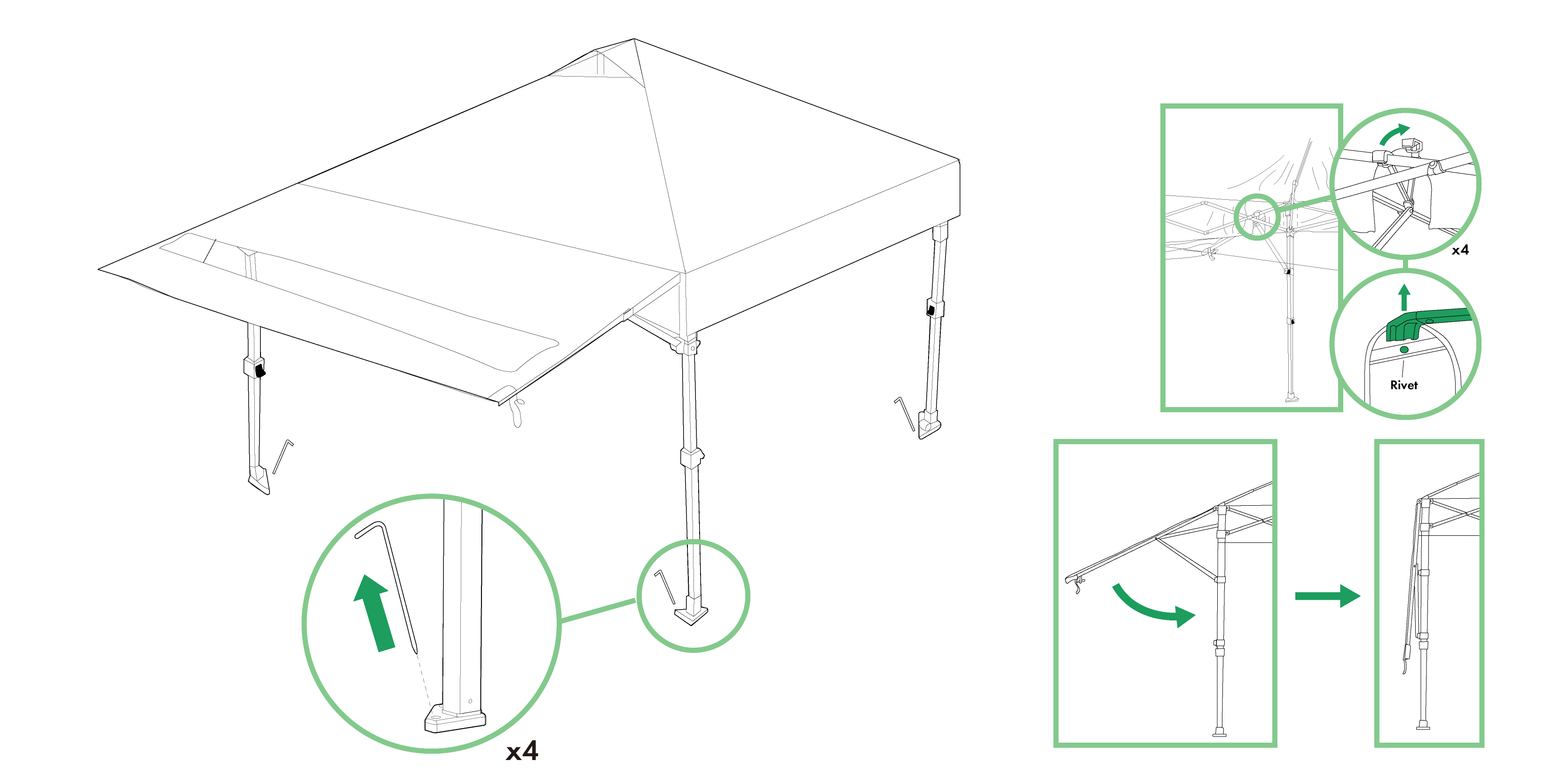

STEP 1 - LOWER AWNING & REMOVE STAKES

Remove all stakes from the ground.

Lower awning panel by lifting stabilizer bar and rotate back to the leg.

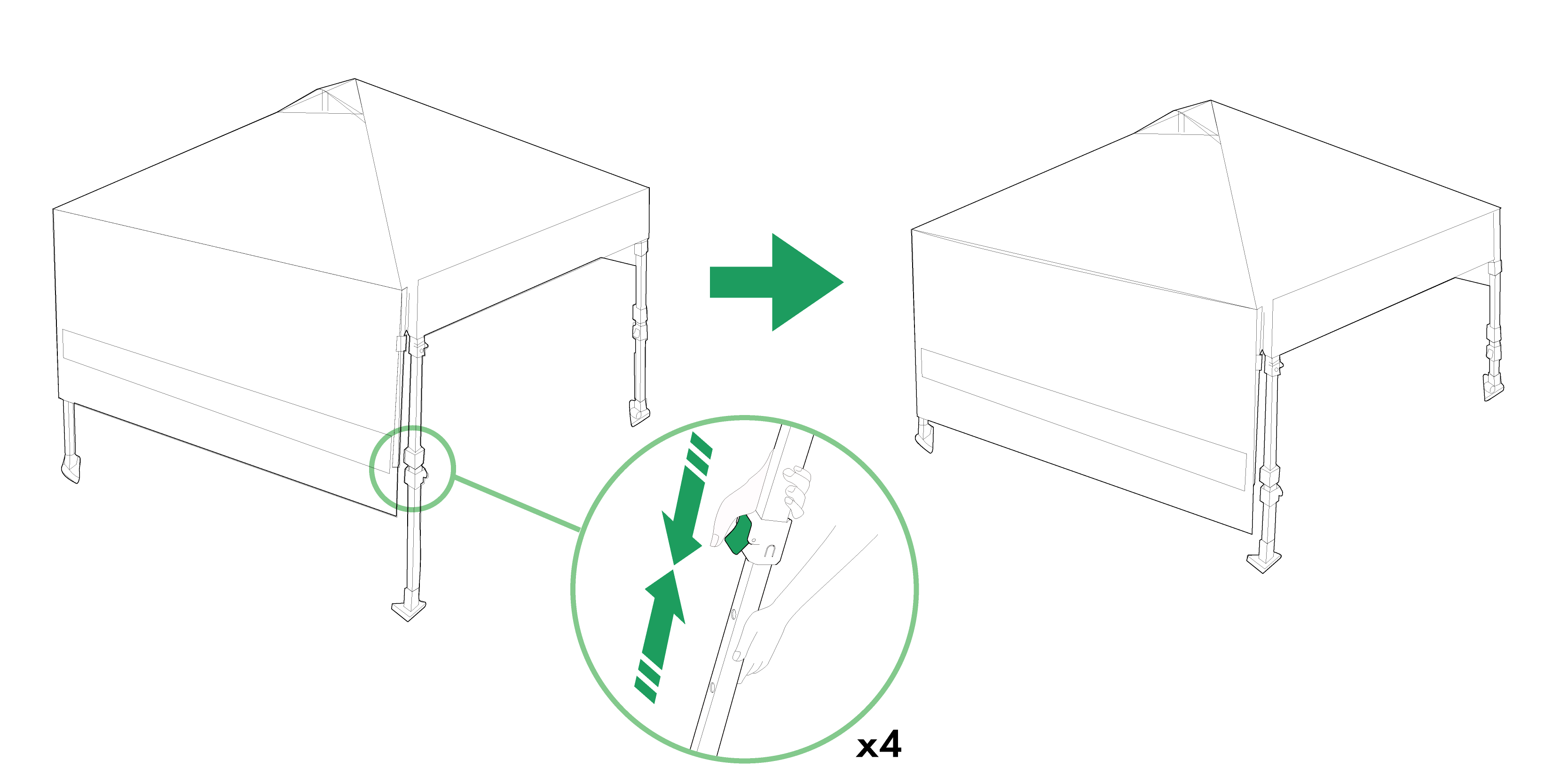

STEP 2 - LOWER LEGS

Press the push button on each leg and retract the legs to their storage height.

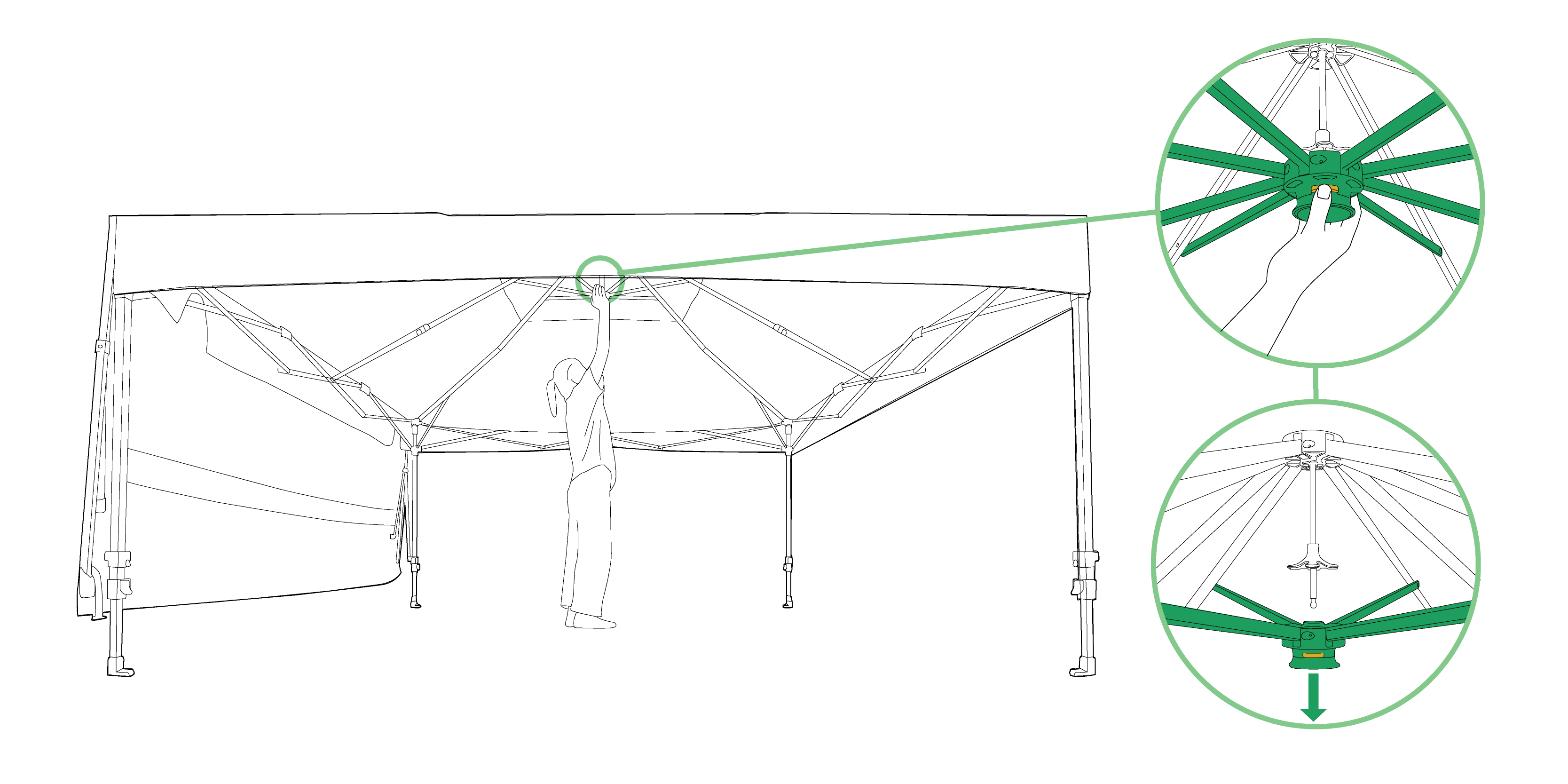

STEP 3 - UNLOCK THE CANOPY

From underneath the canopy, press in the red central locking button.

Pull down on the central hub until it is separated from the central pole.

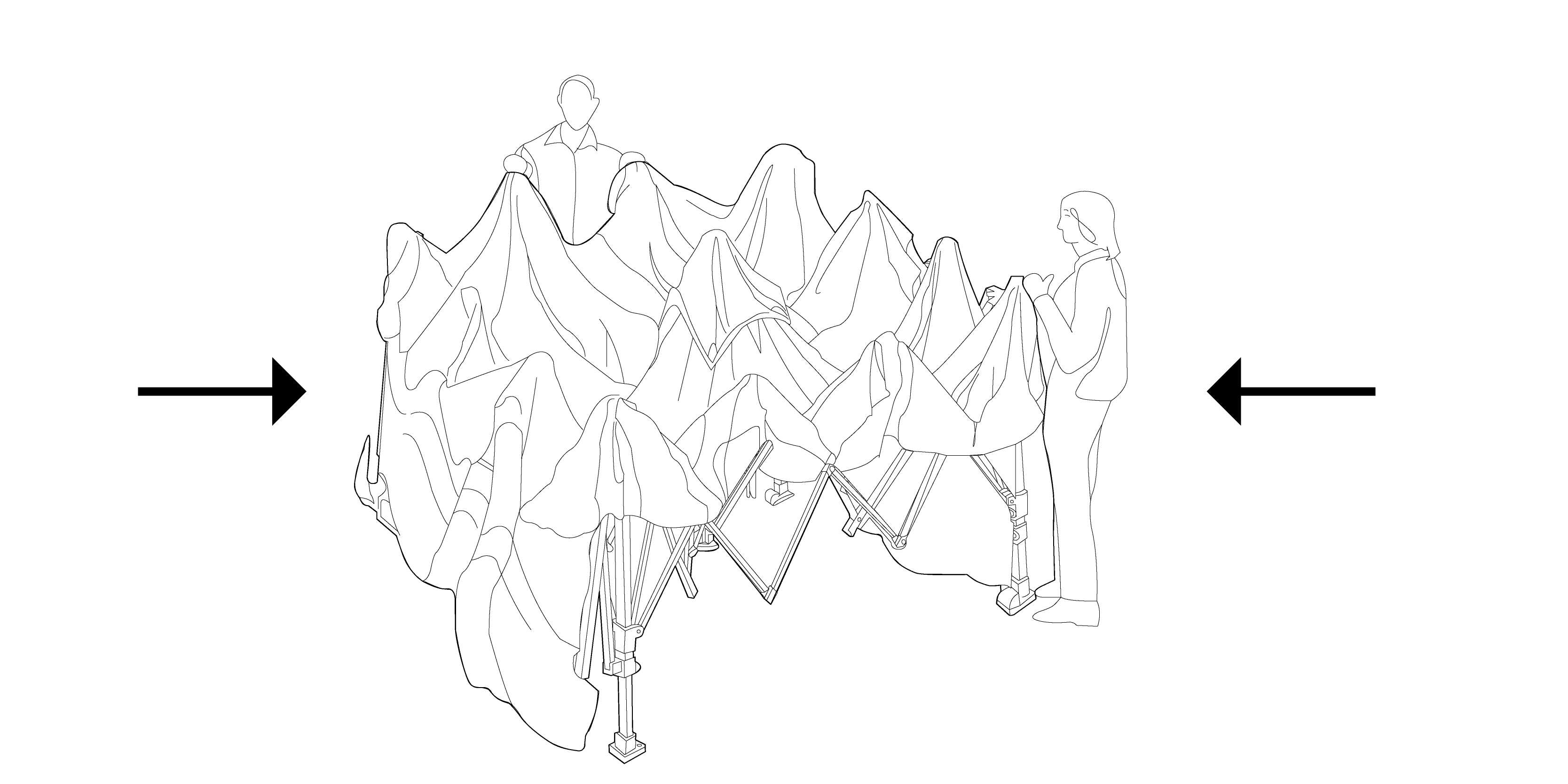

STEP 4 - FOLD THE FRAME

Lift the canopy off the ground 2-3 inches and walk it in from both sides until the frame is fully closed.
STEP 5 - ATTACH STO 'N GO COVER

Position the cover bag zipper to align with the 2 wheeled legs. Slide the bag over the closed frame.

Zip the cover closed.

Loosen the strap and insert the red plug into the opening in the foot pad.

Tighten straps by pulling down the strap loop.

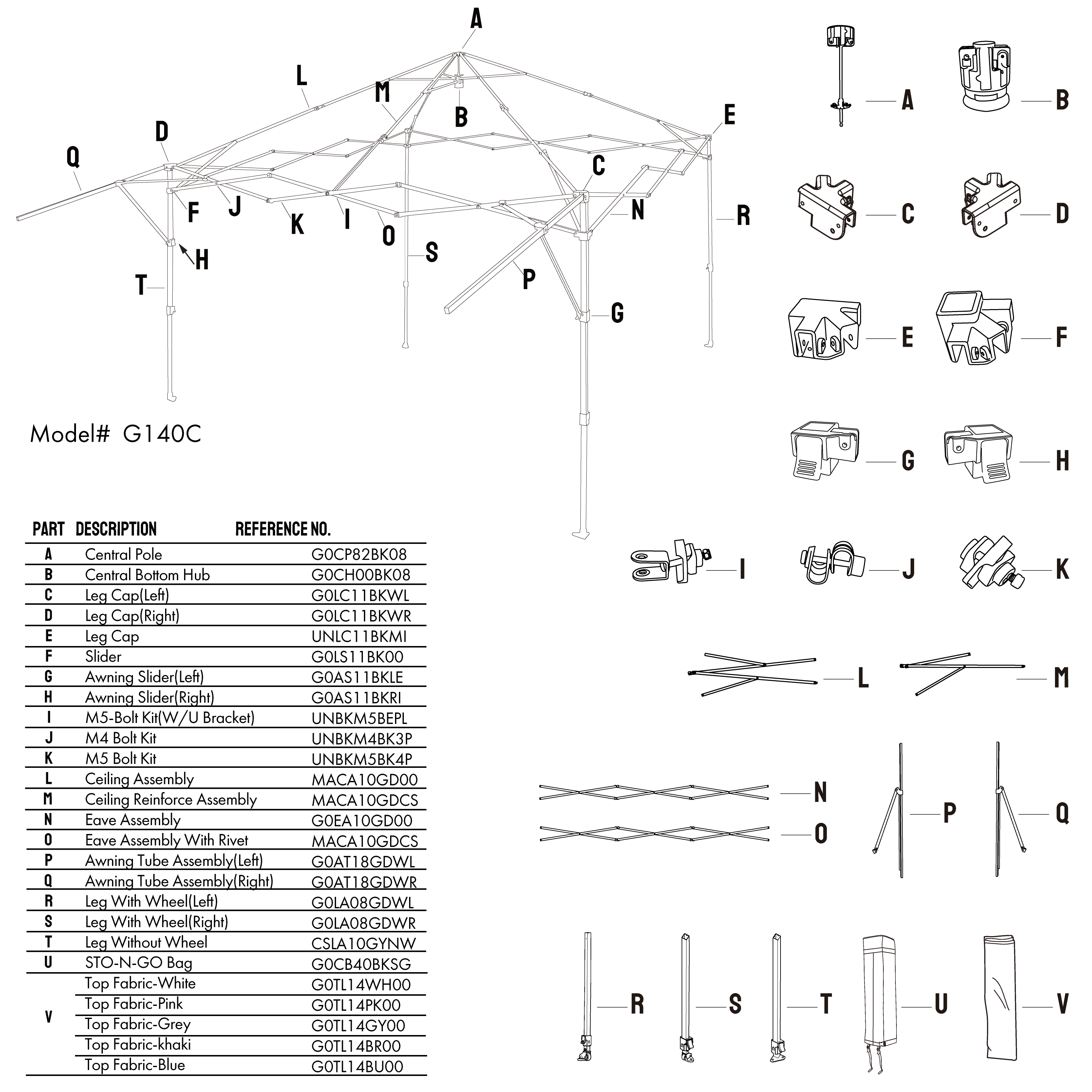

REPLACEMENT PARTS
