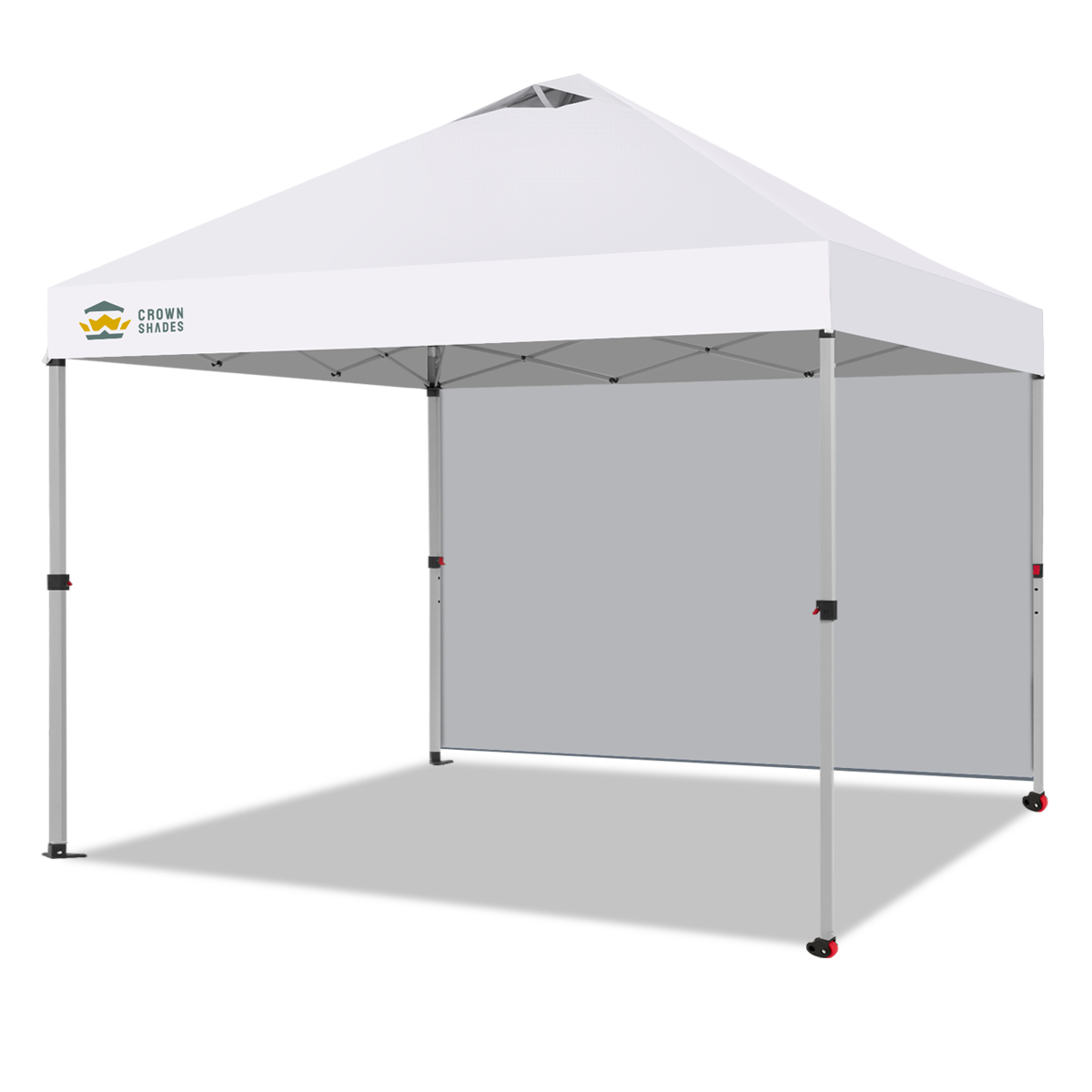

Crown Shades 10' x 10' CenterLOK® Canopy - 1 Sidewall - RM100H-S1

PRODUCT SUPPORT PAGE FOR THE

Crown Shades 10' x 10' CenterLOK® Canopy - 1 Sidewall - RM100H-S1

Please take a few minutes to review the contents below to get the most out of your canopy.

ITEMS INCLUDED
  • 10' x 10' Steel Canopy Frame
  • Fabric Top
  • Sidewall Panel
  • Sto 'N Go Bag
  • 8 Ground Stakes
  • 4 Weight Bags
  • User Guide

PRODUCT VIDEOS

Product Walk Through

Lifestyle Video

Lifestyle Short

SET UP INSTRUCTIONS
STEP 1 - OPEN THE CANOPY FRAME

Lift the canopy slightly off the ground and step backward to expand the frame to about 8’ across.
STEP 2 - ATTACH THE TOP TO THE FRAME

Unfold the canopy fabric and place it on the frame.

Use hook & loop straps to attach to the 4 legs.

Attach Fast Clips to the 8 orange truss joints.
STEP 3 - LOCK THE FRAME

From beneath the canopy, lift the central hub straight up until it clicks into the central pole.

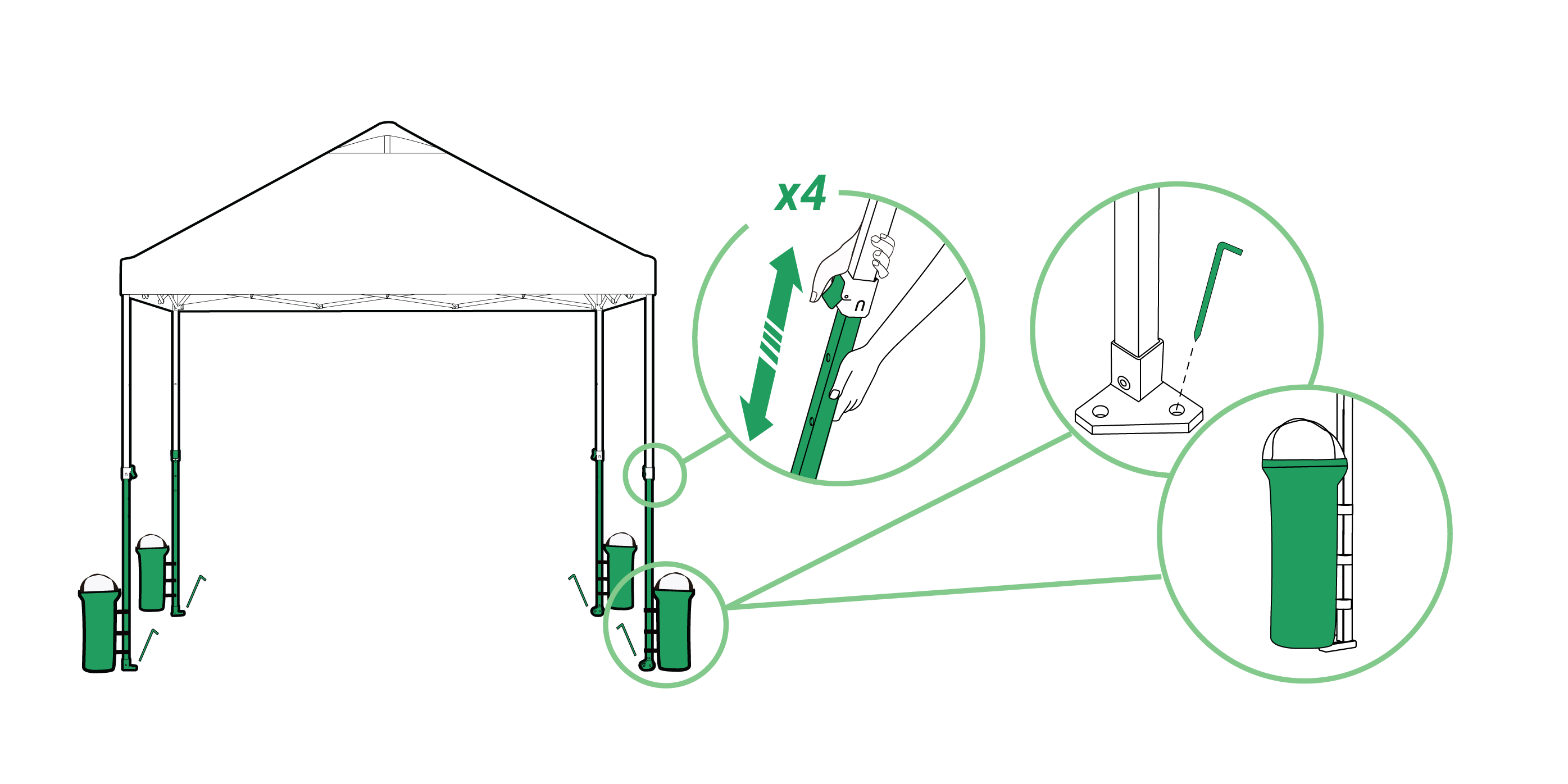

STEP 4 - EXTEND THE LEGS & ANCHOR

Extend each leg to the desired height by pressing the button and pulling the telescoping leg out.

Fill weight bags with sand or use stakes to anchor.
STEP 5 -

TAKE DOWN INSTRUCTIONS

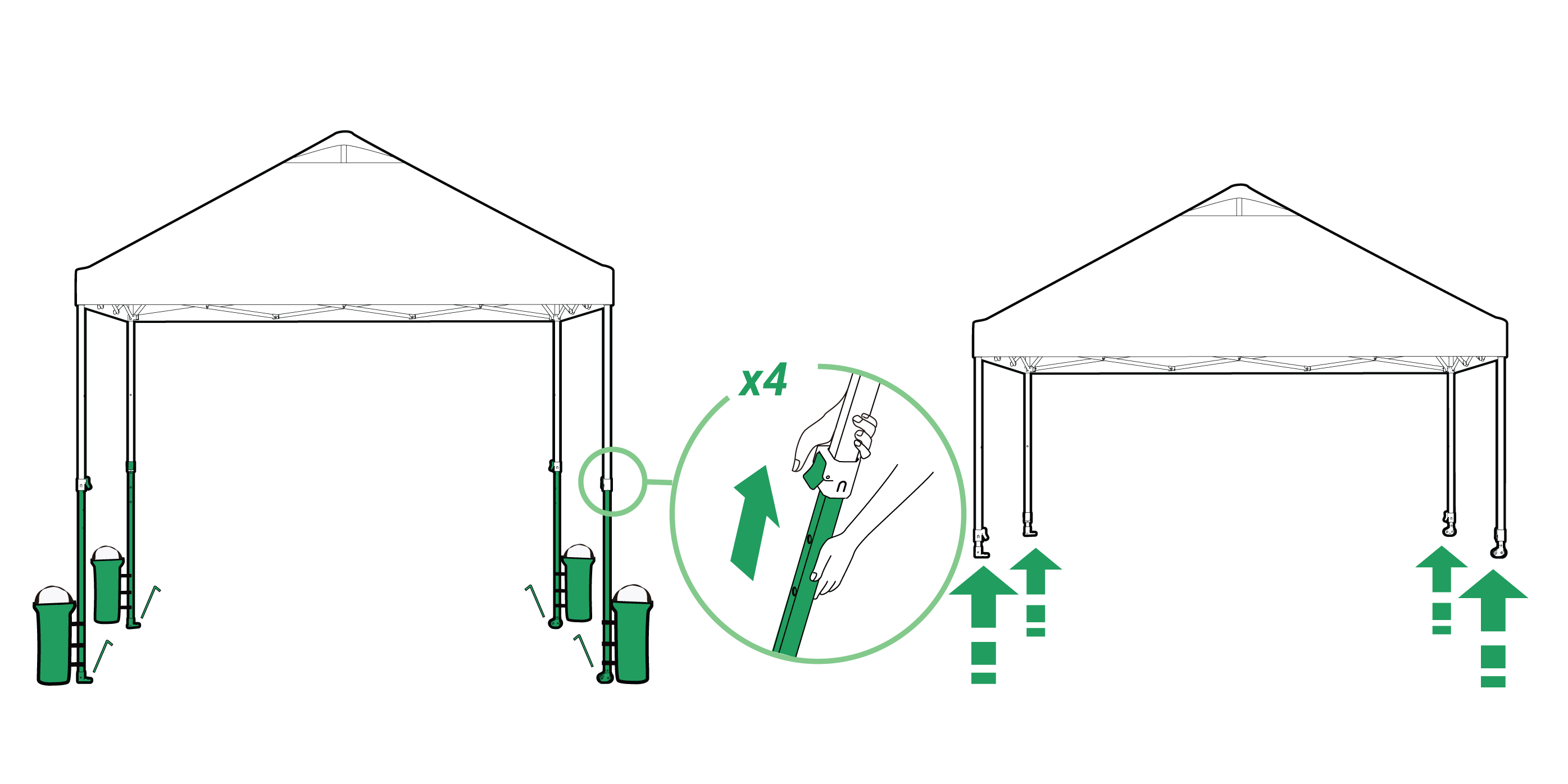

STEP 1 - REMOVE ANCHORS & RETRACT LEGS

Remove stakes & bags.

Press leg height adjustment button to lower leg.
STEP 2 - UNLOCK THE CANOPY

Press in the red hub lock button, pull down on the central hub until it separates from the central pole.
STEP 3 - FOLD THE FRAME

Lift the frame off the ground and step forward to collapse the frame.
STEP 4 - ATTACH STO 'N GO COVER

Slip cover bag over with zipper between wheels.

Zip cover closed, buckle webbing strap.

Insert rocket plugs into receivers near each wheel.
STEP 5 -

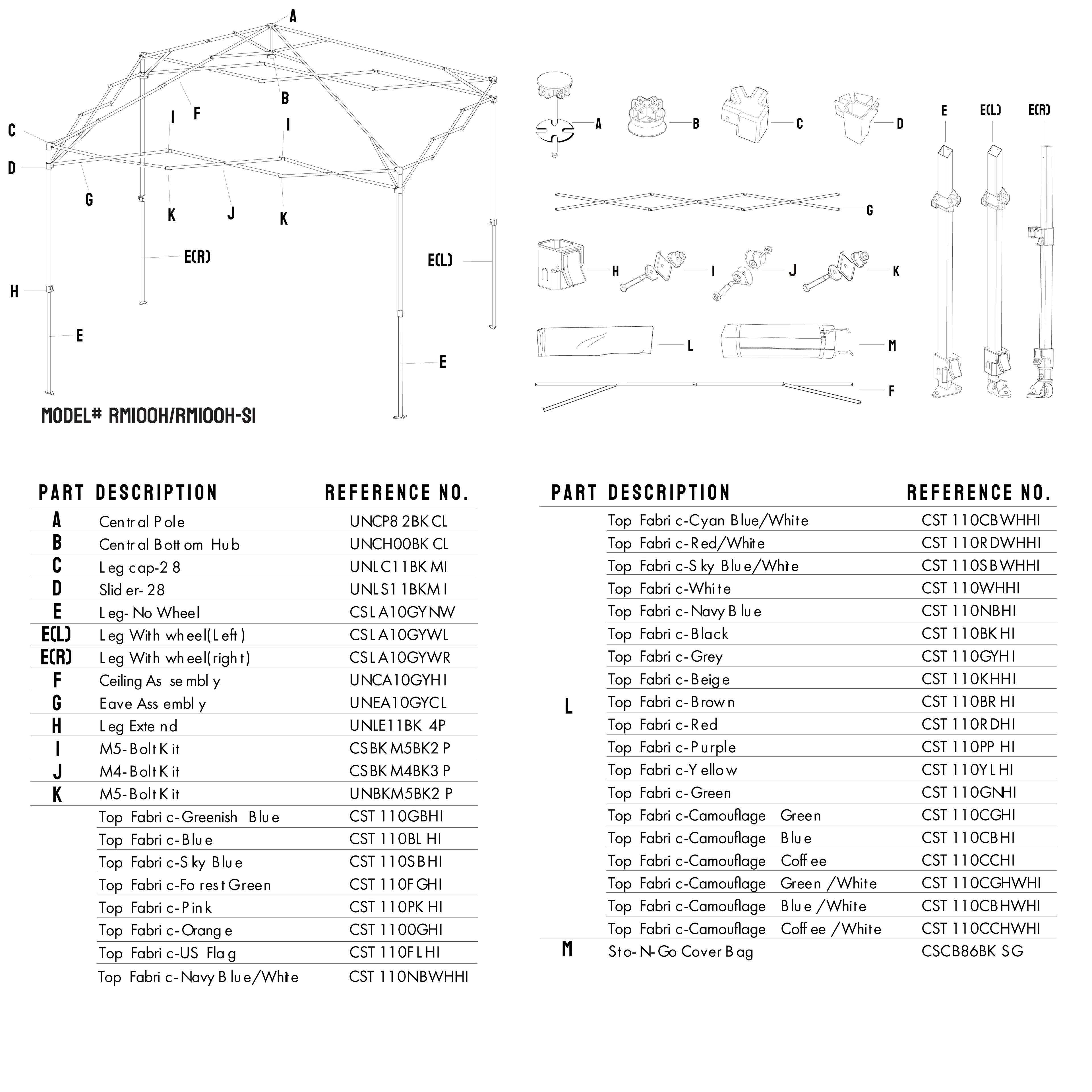

REPLACEMENT PARTS
