EVENT TENT
20' x 10' POP UP CANOPY
Please take a few minutes to review the contents below to get the most out of your canopy.
ITEMS INCLUDED
- 20' x 10' Steel Canopy Frame
- Sto 'N Go Bag
- 12 Ground Stakes
- 6 Weight Bags
- User Guide Packet
PRODUCT VIDEOS
SET UP INSTRUCTIONS

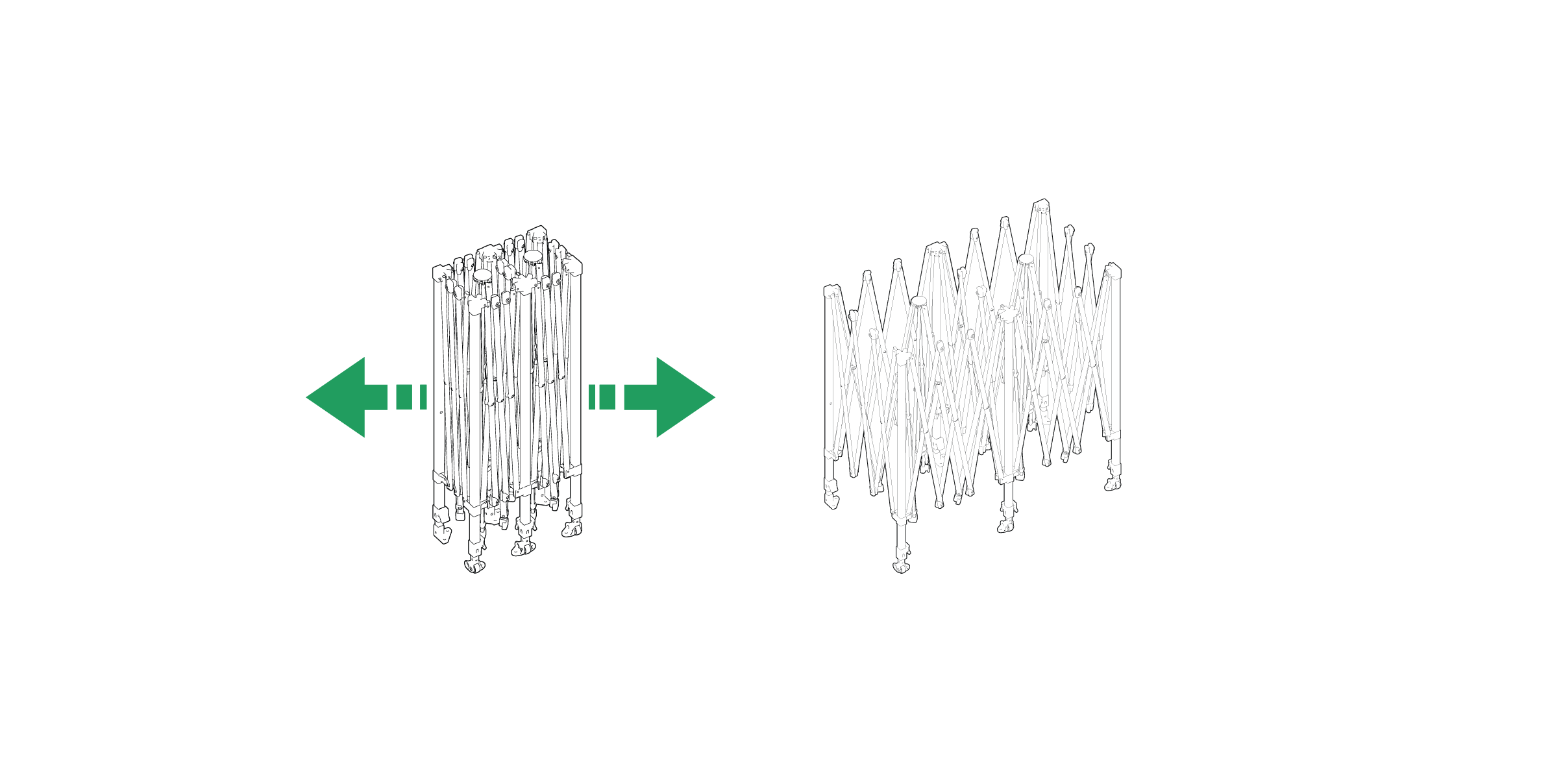

STEP 1 - OPEN THE CANOPY FRAME
Lift the canopy slightly off the ground and step backward to expand the frame.

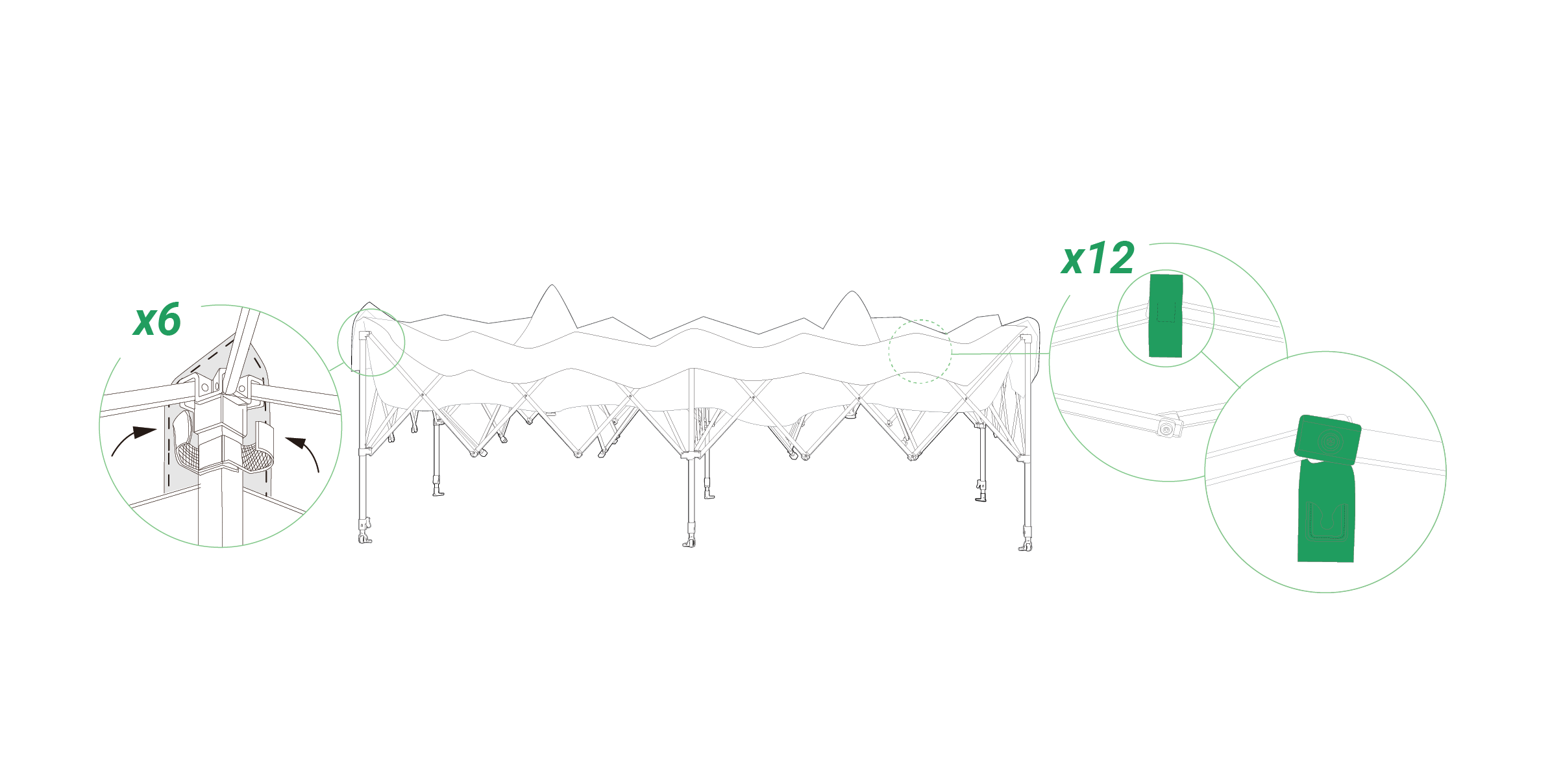

STEP 2 - ATTACH THE TOP TO THE FRAME
Unfold the canopy fabric and place it on the frame.
Use hook & loop straps to attach to the 6 legs.
Attach Fast Clips to 12 truss joints.

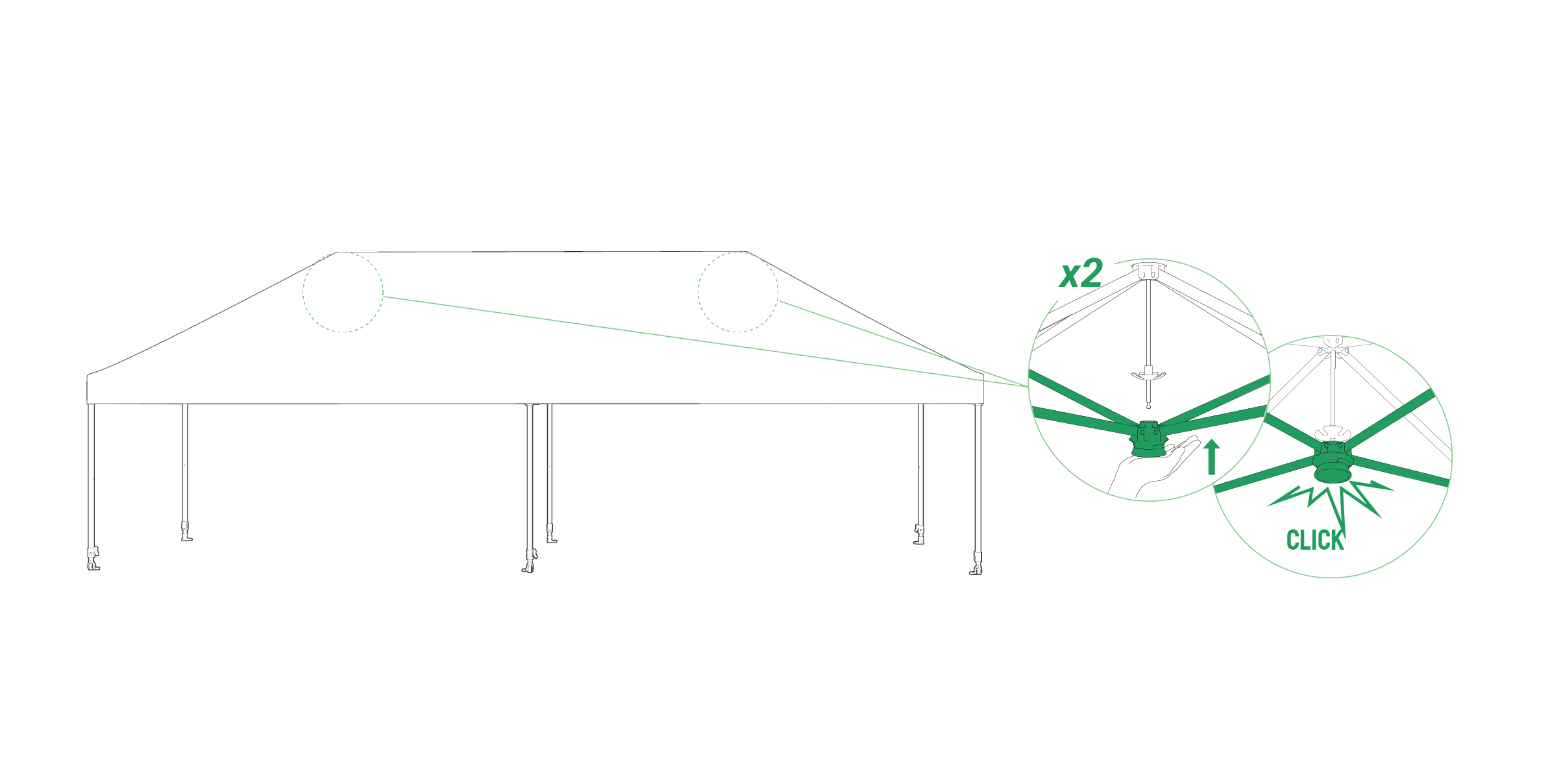

STEP 3 - LOCK THE FRAME
From beneath the canopy, lift the 2 central hubs straight up until each clicks into its central pole.

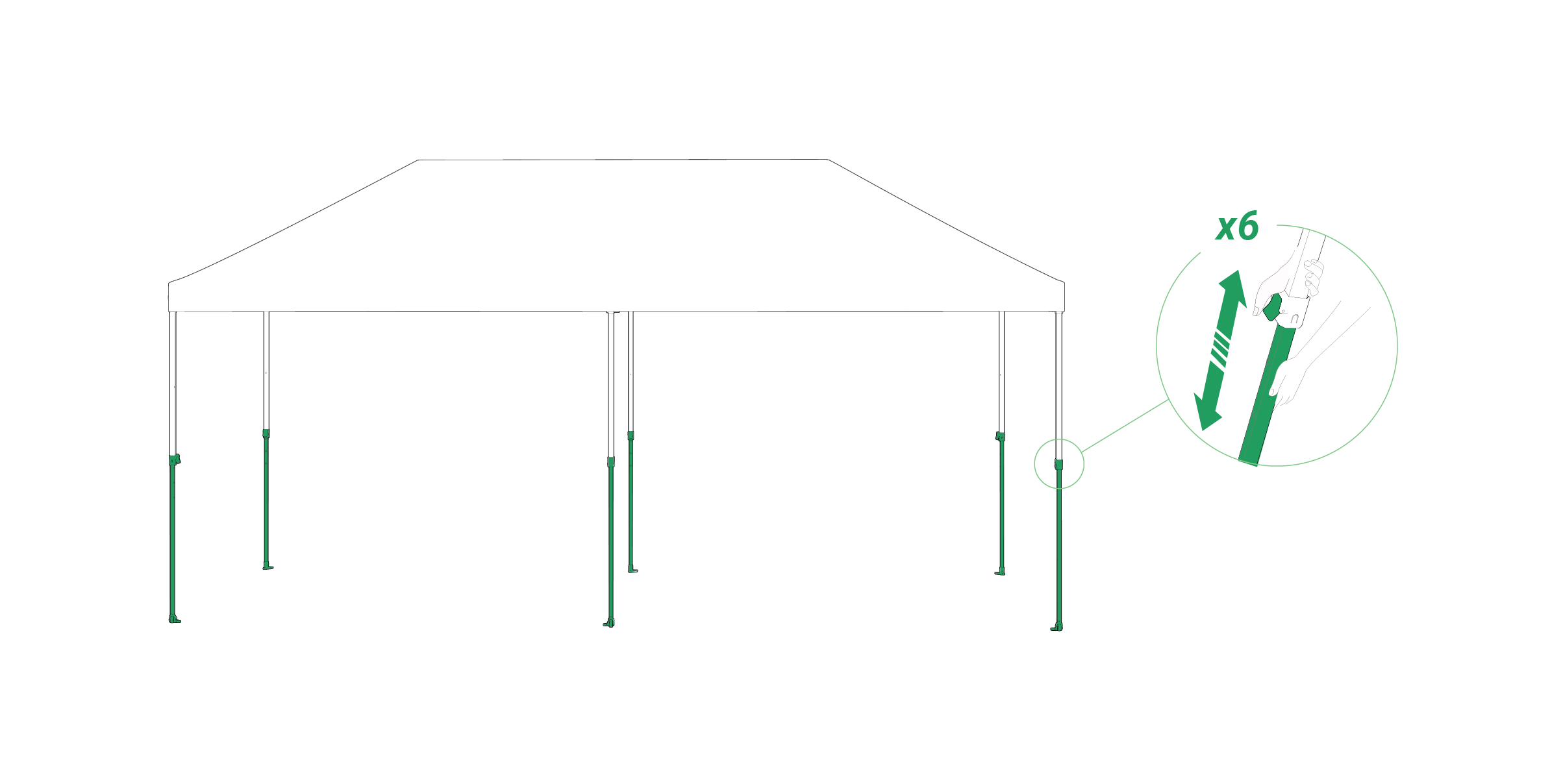

STEP 4 - EXTEND THE LEGS
Extend each leg to the desired height by pressing the button and pulling the telescoping leg out.

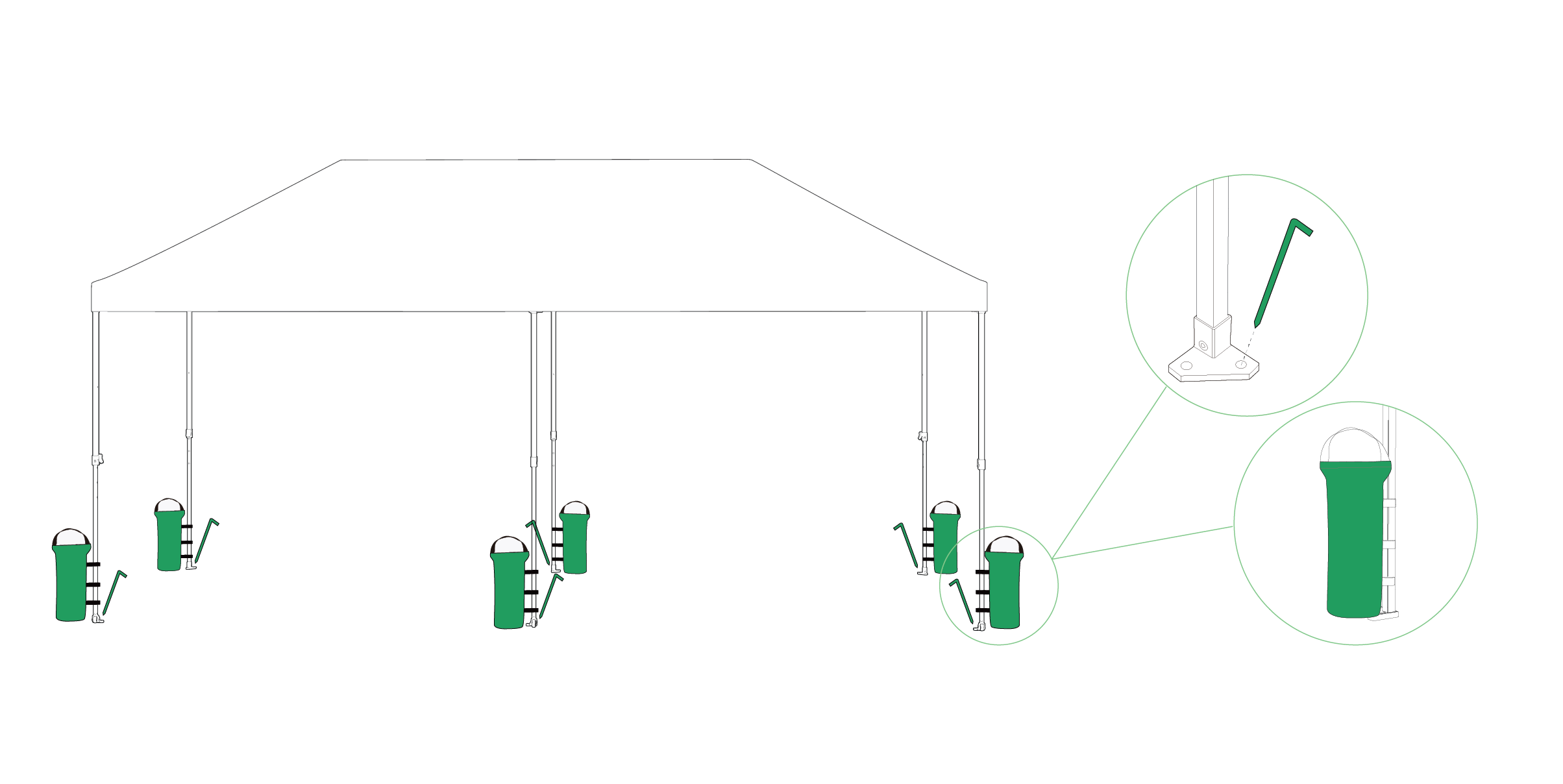

STEP 5 - ANCHOR THE FRAME
Fill weight bags with sand or use stakes to anchor.
TAKE DOWN INSTRUCTIONS
STEP 1 - REMOVE ANCHORS
Remove the stakes & bags.

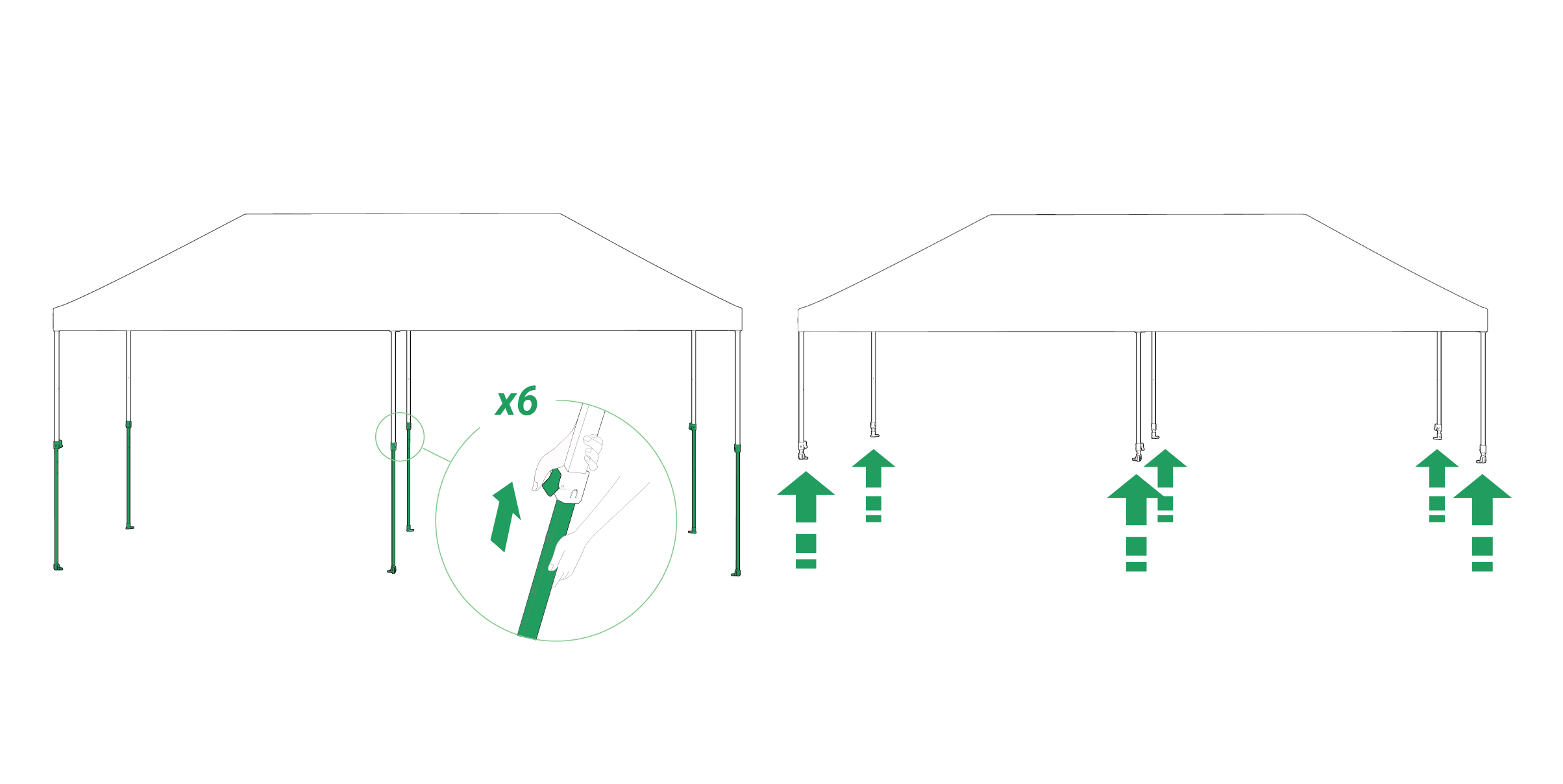

STEP 2 - RETRACT THE LEGS
Press leg height adjustment button to lower each leg.
STEP 3 - UNLOCK THE CANOPY
Press each orange hub lock button, pull down on the hubs until they separate from their vertical poles.

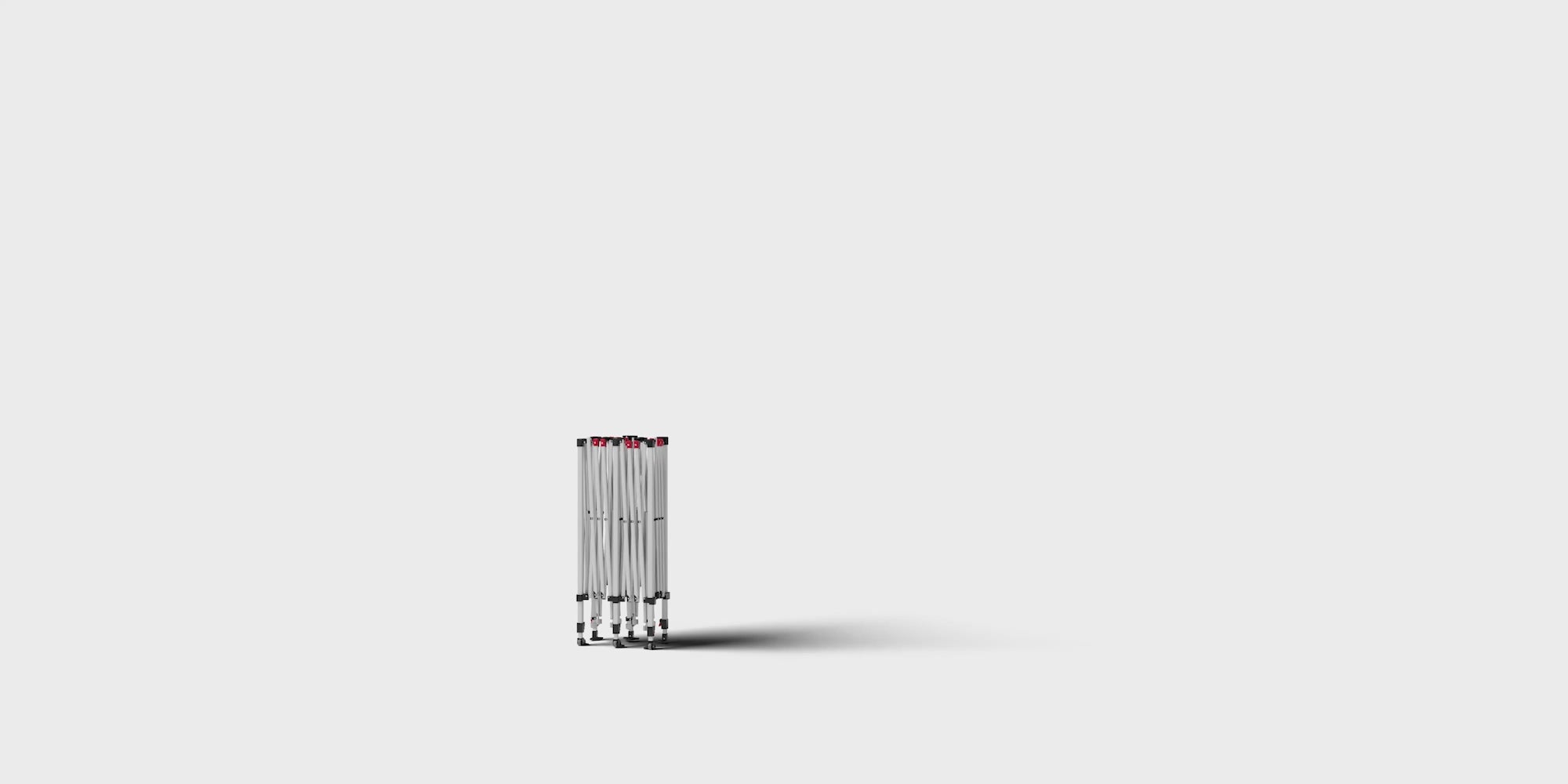

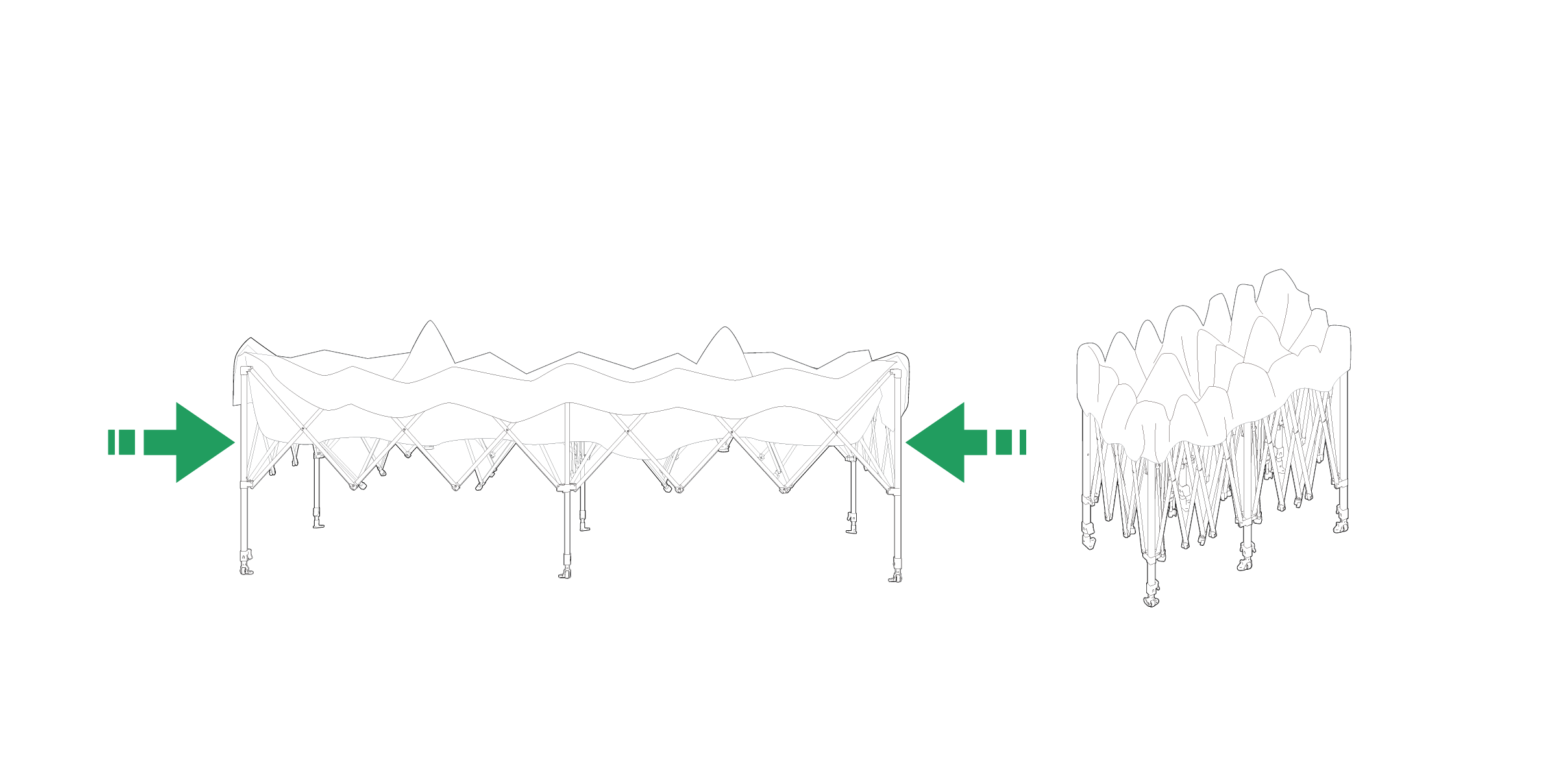

STEP 4 - FOLD THE FRAME
Lift the frame off the ground and step forward to collapse the frame.

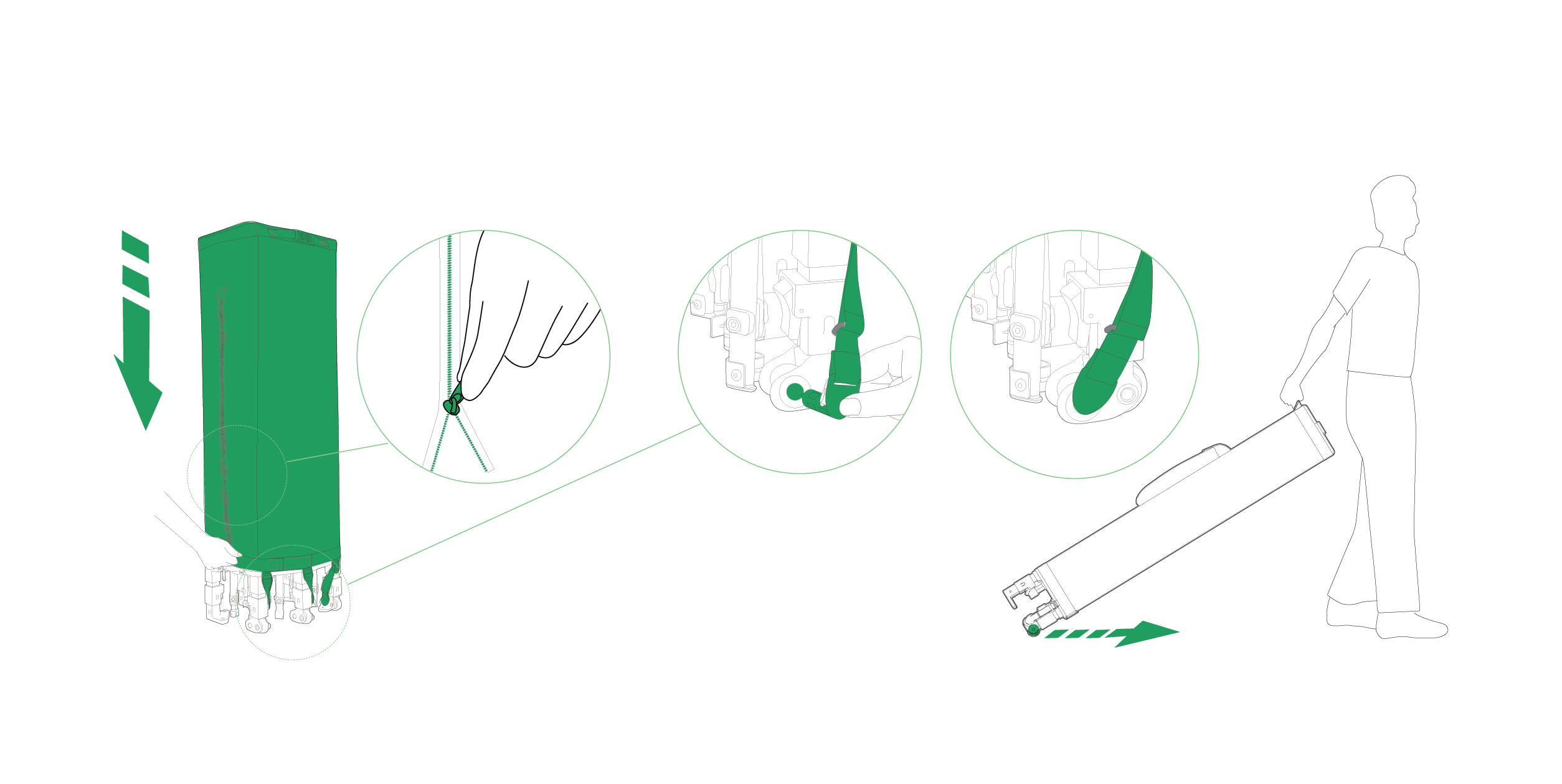

STEP 5 - ATTACH STO 'N GO COVER
Slip cover bag over with zipper between wheels.
Zip cover closed, buckle webbing strap.
Insert rocket plugs into receivers near each wheel.
REPLACEMENT PARTS
| PART | DESCRIPTION | REFERENCE NUMBER / PURCHASE LINK |
|---|---|---|
| A | CENTRAL POLE | UNCP82BKCL |
| B | CENTRAL BOTTOM HUB | UNCH00BKCL |
| C | LEG CAP-30 | UNLC12BKMI |
| D | SLIDER-30 | UNLS12BKMI |
| E | MIDDLE LEG CAP | MPLC12BK3W |
| F | MIDDLE SLIDER | MPLS12BK3W |
| G | CEILING ASSEMBLY | UNCA10WHHI |
| H | EAVE ASSEMBLY | UNEA10WHCL |
| I(L) | LEG WITH WHEELED FOOT (LEFT) | COLA12WHWL |
| I(R) | LEG WITH WHEELED FOOT (RIGHT) | COLA12WHWR |
| J | LEG WITHOUT WHEEL | COLA12WH00 |
| K | LEG EXTENDER | UNLE12BK4P |
| L | M5 BOLT KIT WITH CLIP | CSBKM5BKCL |
| M | M4 BOLT KIT | UNBKM4BK3P |
| N | M5 BOLT KIT | UNBKM5BK4P |
| O | TOP FABRIC - WHITE | COT320WHHI |
| P | COVER BAG | COCB20BKSG |
The above links take you to the official Crown Shades webstore at www.Crown-Outdoor.com
PRODUCT
FEATURES
TWIN PATENTED CENTERLOK HUBS
Experience pop-up ease with the patented Centerlok hub system by Crown Shades. Lock the frame into place with a single push!
PATENTED TECHNOLOGY

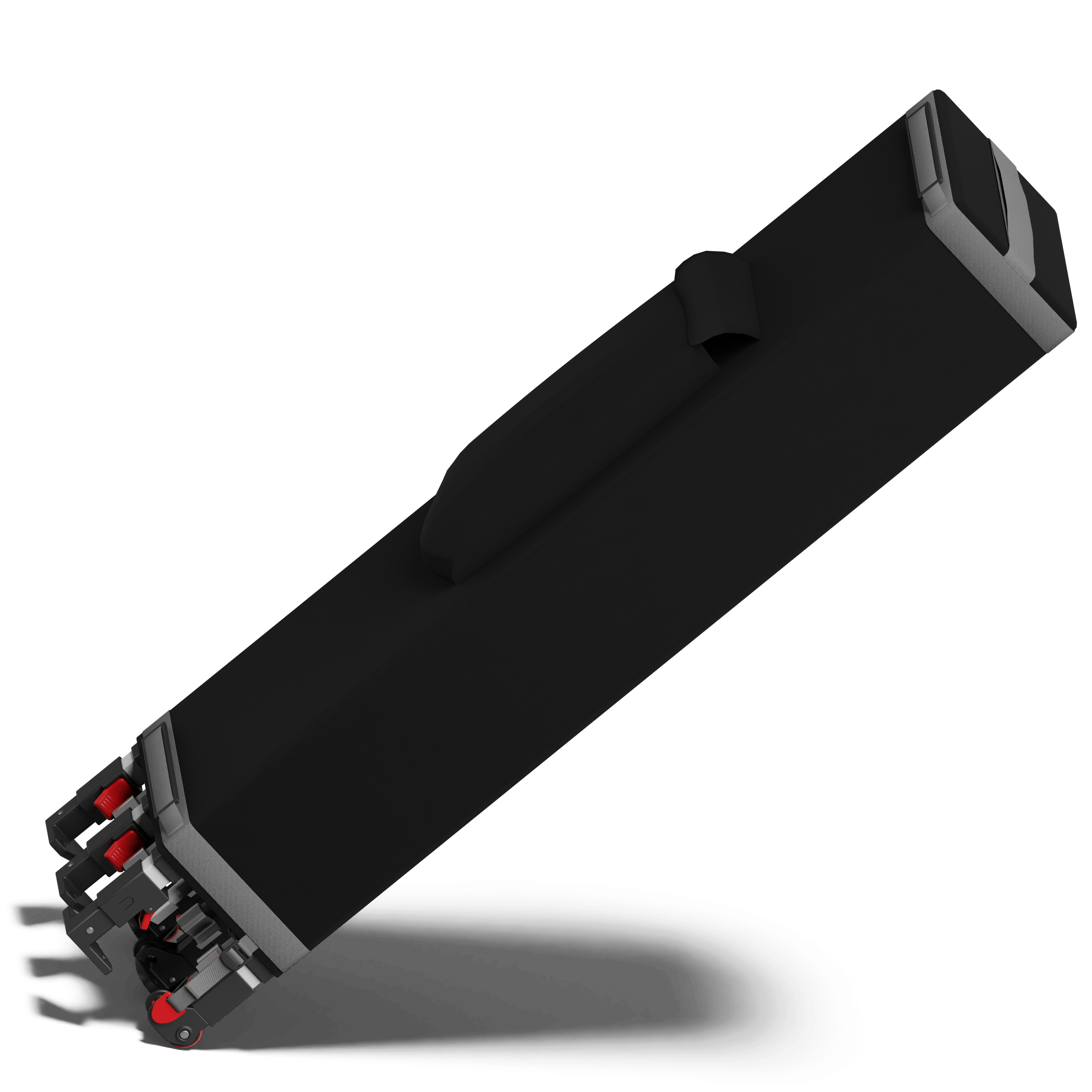

STO 'N GO SYSTEM - PATENTED
Innovative system that eliminates lifting the canopy in transition from storage to setup. The Sto 'N Go cover slips over the frame, fastens to the wheels, and rolls away on wheels integrated directly in the canopy legs.

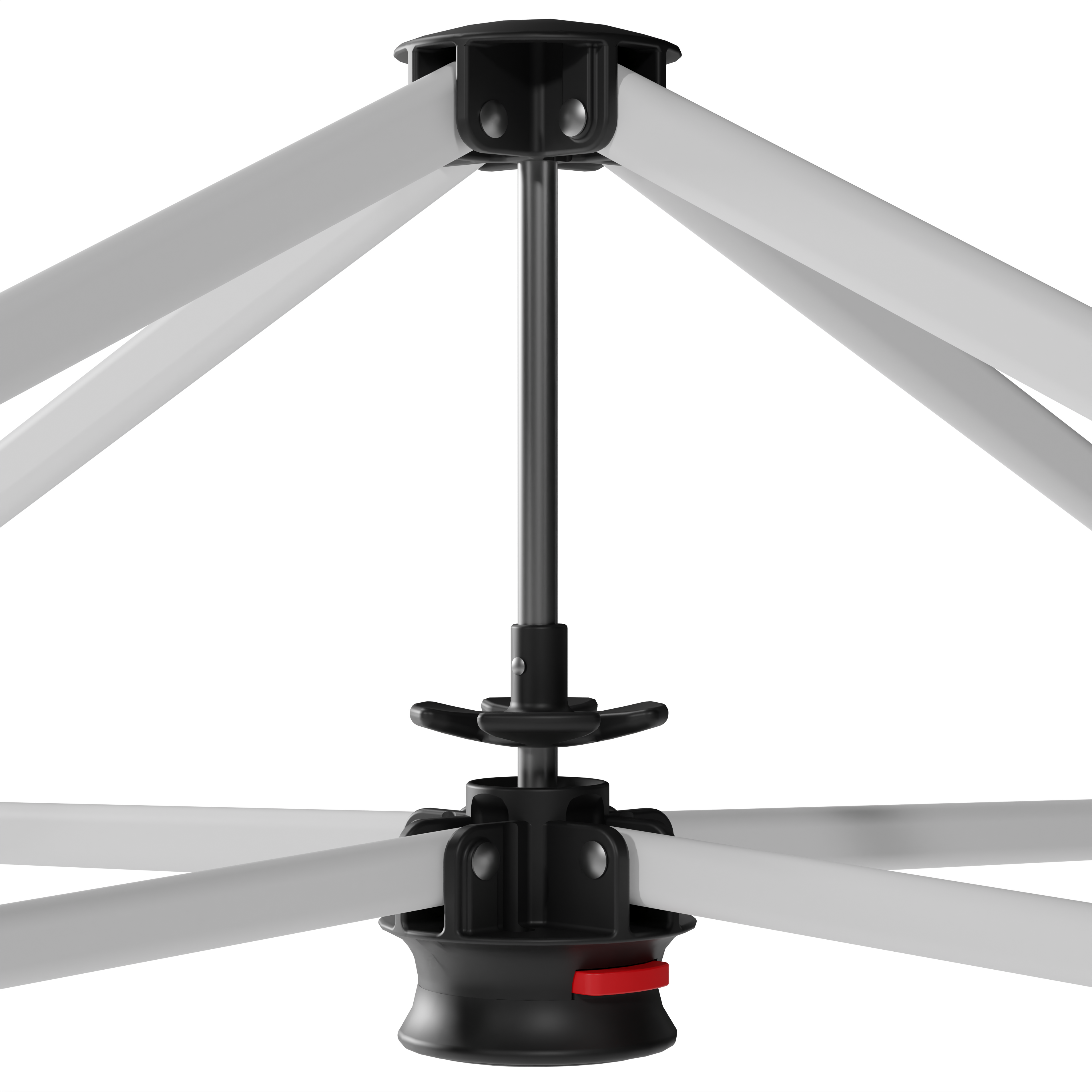

CENTERLOK TECHNOLOGY - PATENTED
With a single lift of each hub, the entire frame locks into place with this revolutionary technology. Similarly, a single press of a button releases the whole frame.

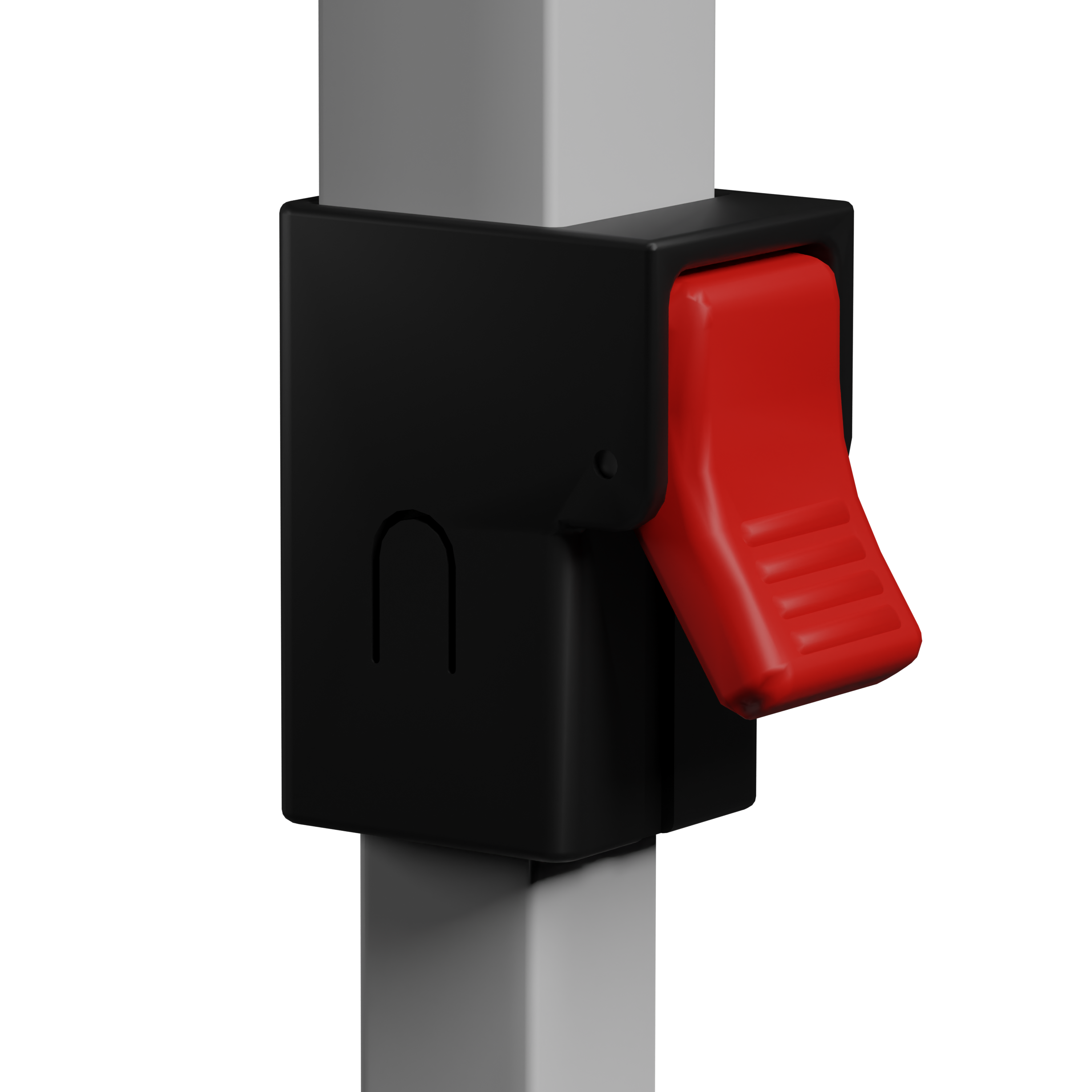

SOFT-TOUCH BUTTONS
Large ergonomic paddle-shaped buttons eliminate pinched fingers.
FAST CLIP SYSTEM
Hardware connection between the fabric top and the frame. Designed to keep fabric free from the collapsing truss during storage. Securely fastens top fabric to frame.
