SET UP INSTRUCTIONS

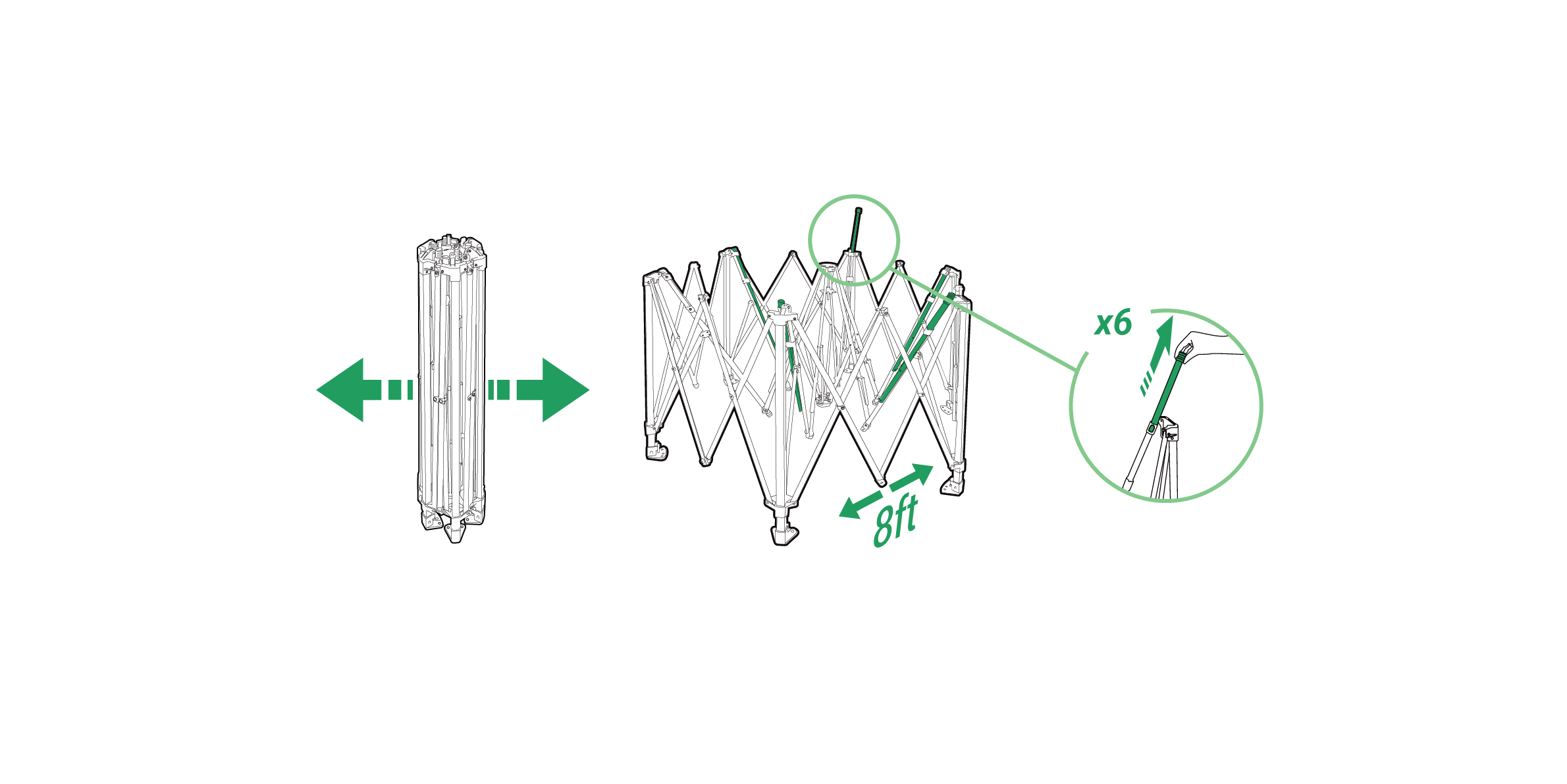

STEP 1 - OPEN THE CANOPY FRAME

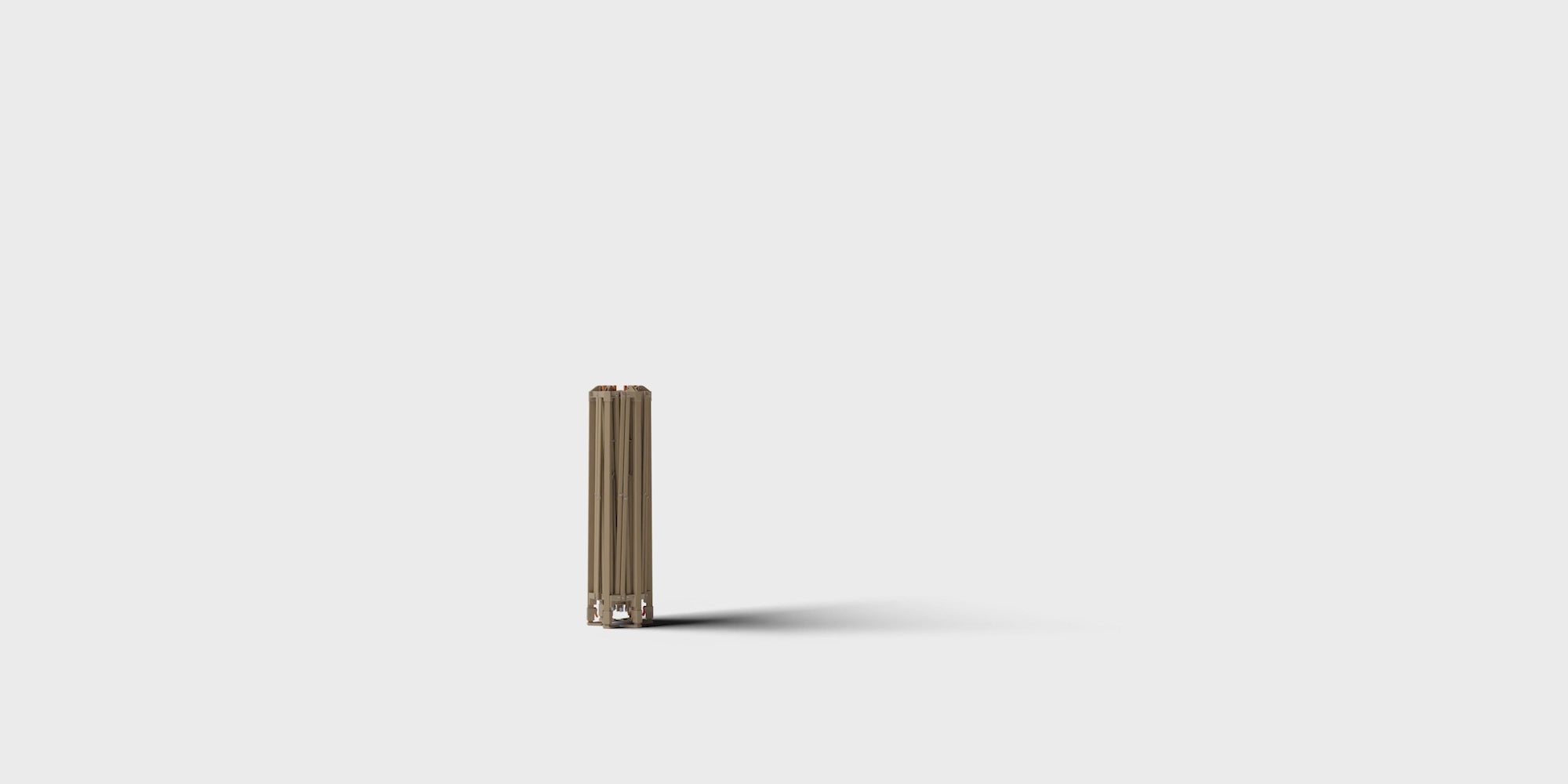

Lift the canopy off the ground and expand it.

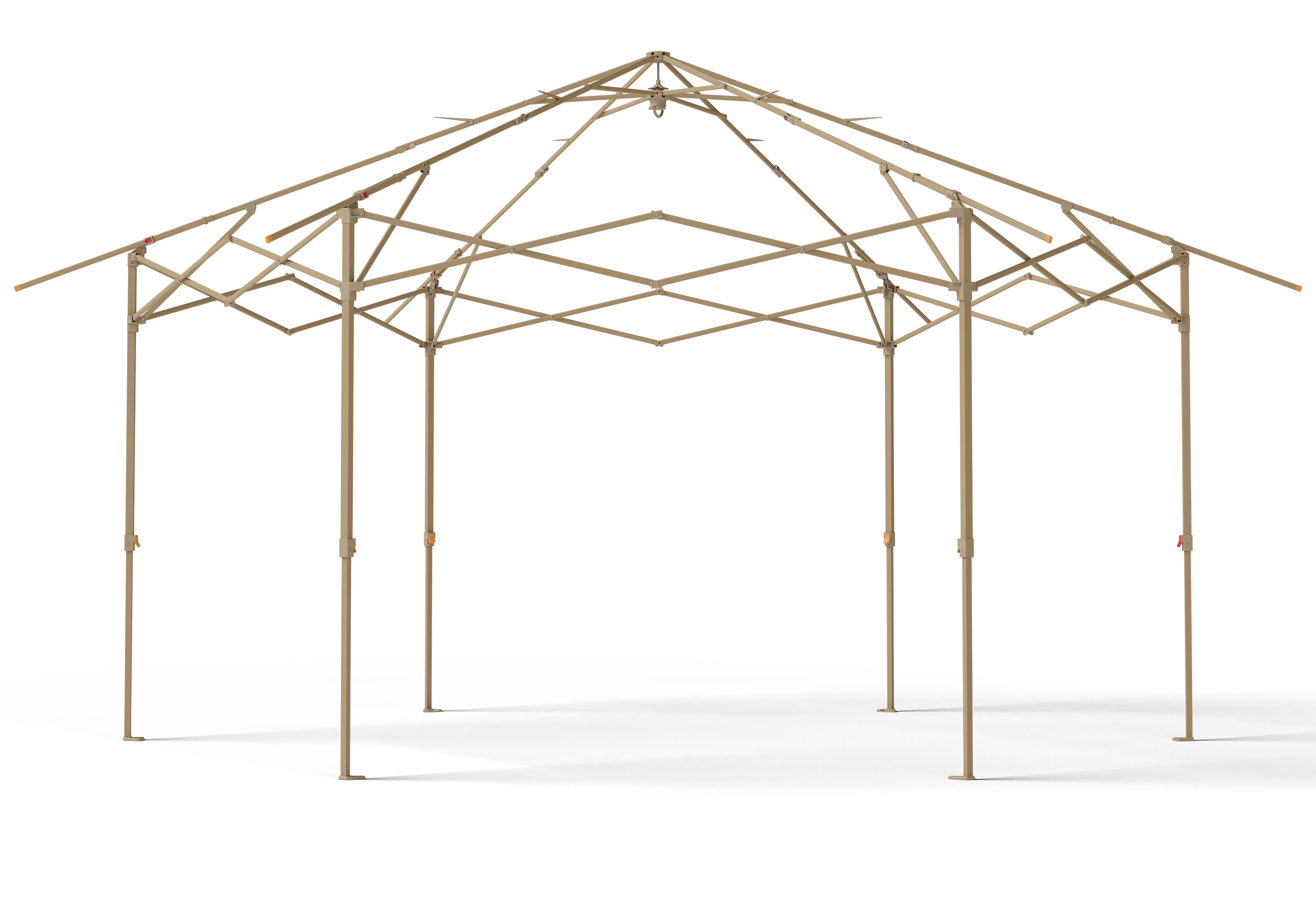

Pull out the six eave extension poles until they click locked in position. They are at the top of each leg.

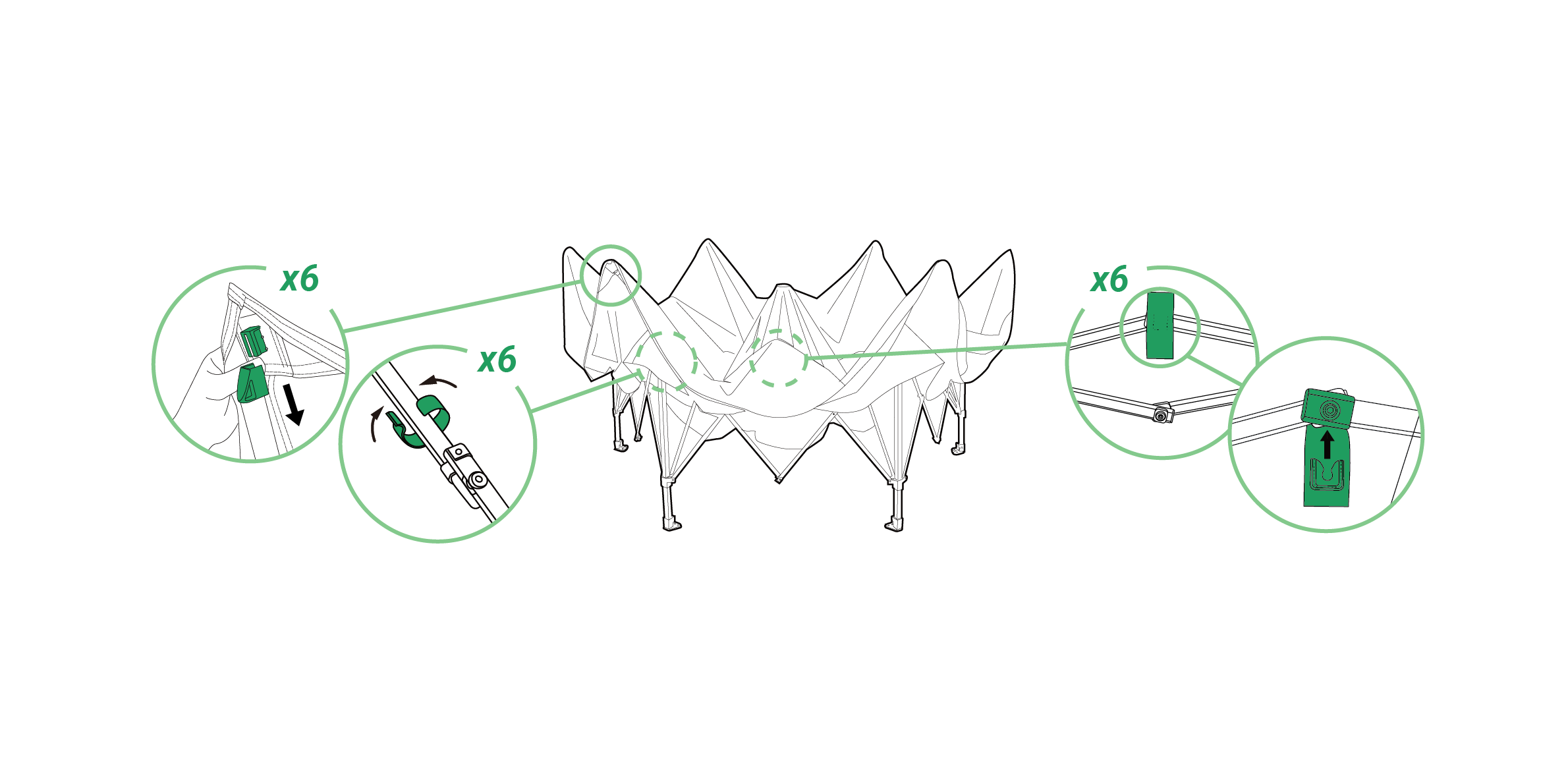

STEP 2 - ATTACH THE TOP TO THE FRAME
Spread fabric top over the frame.
Connect Slide ‘N Lock fabric connections to each pole end.
Attach orange Fast Clips to truss joints.
STEP 3 - LOCK THE FRAME

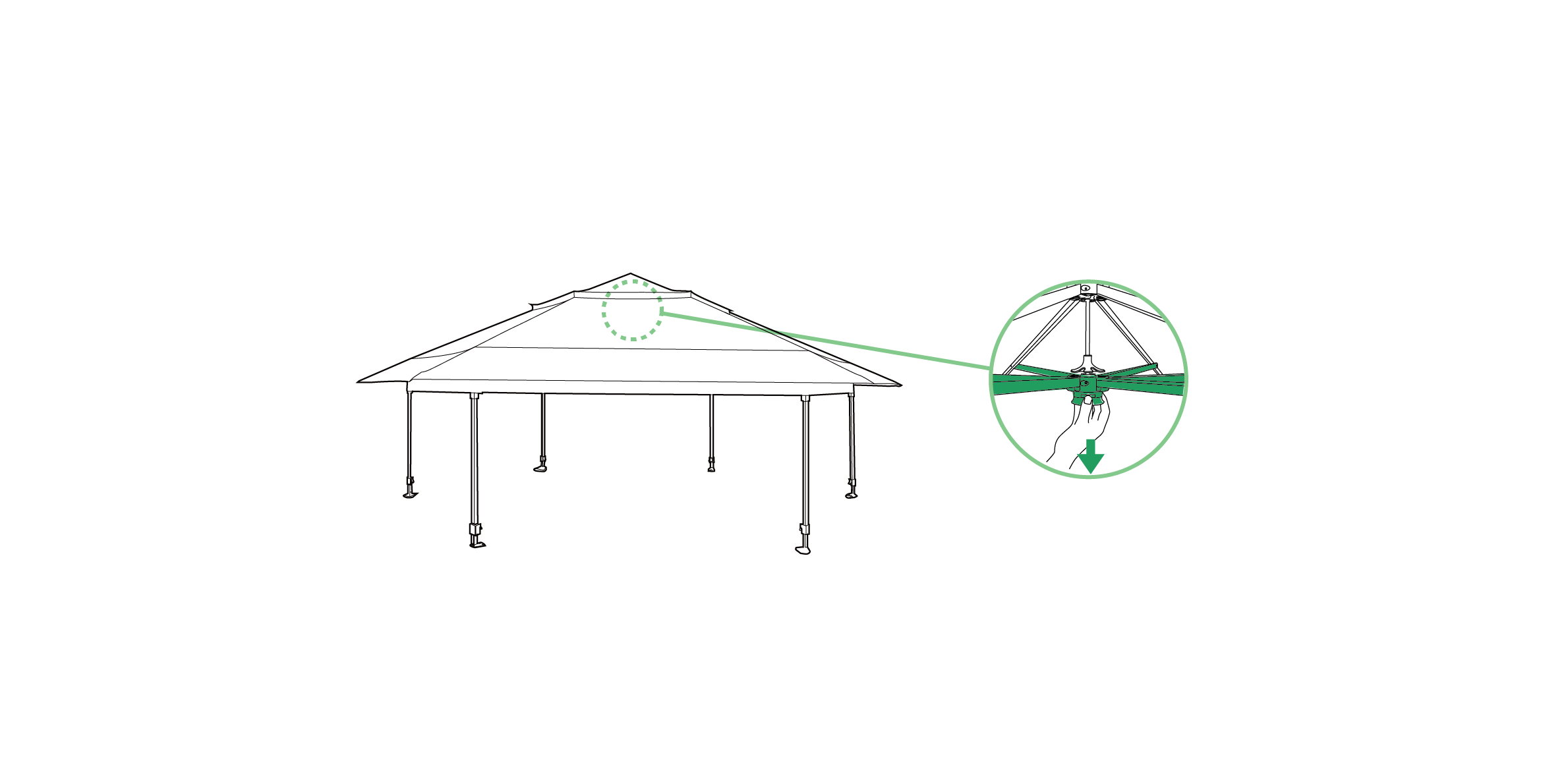

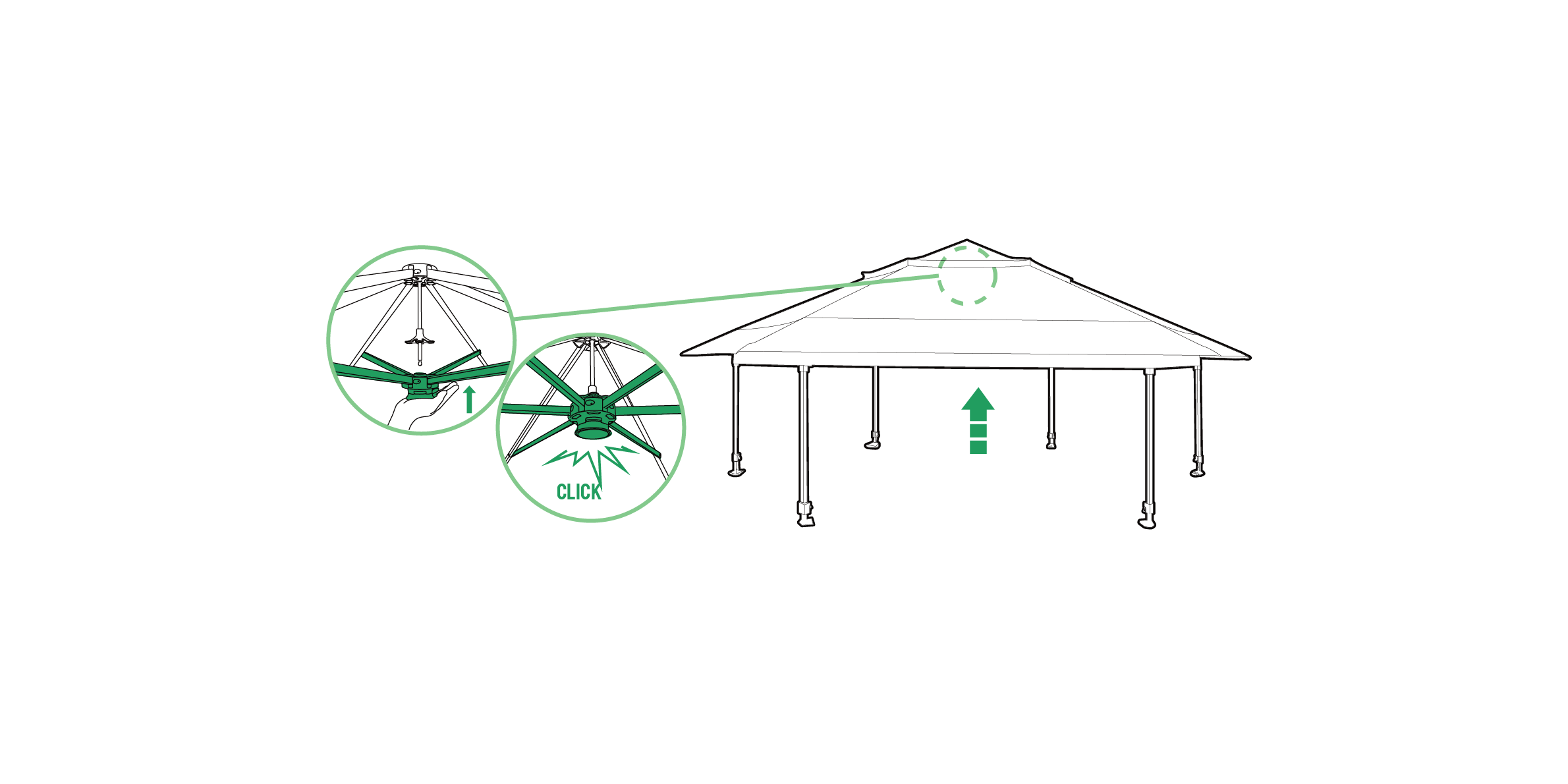

From beneath the canopy, lift the central hub straight up until it clicks into the central pole.

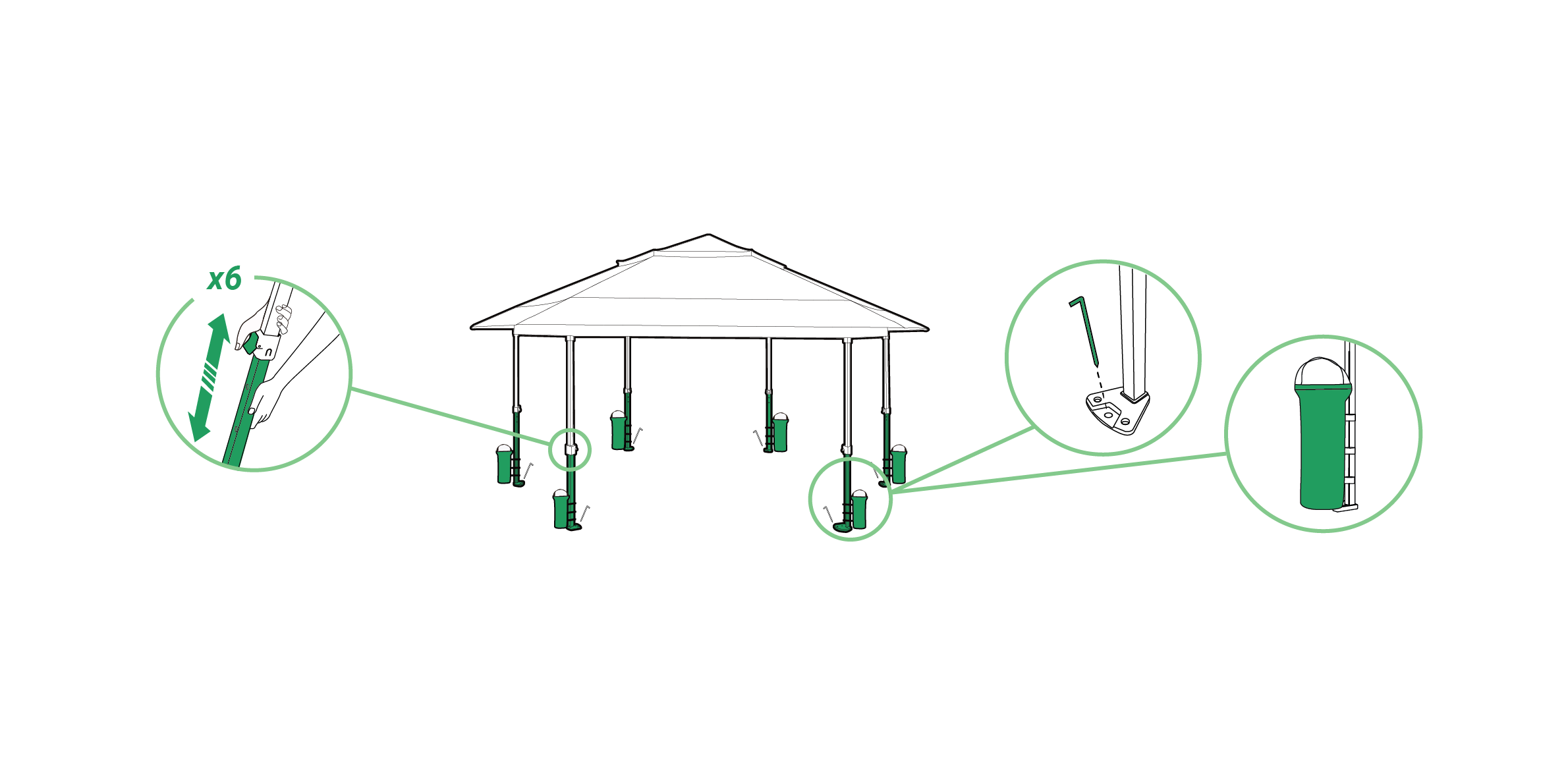

STEP 4 - EXTEND THE LEGS & ANCHOR
Extend each leg to the desired height by pressing the orange button and pulling the telescoping leg out.

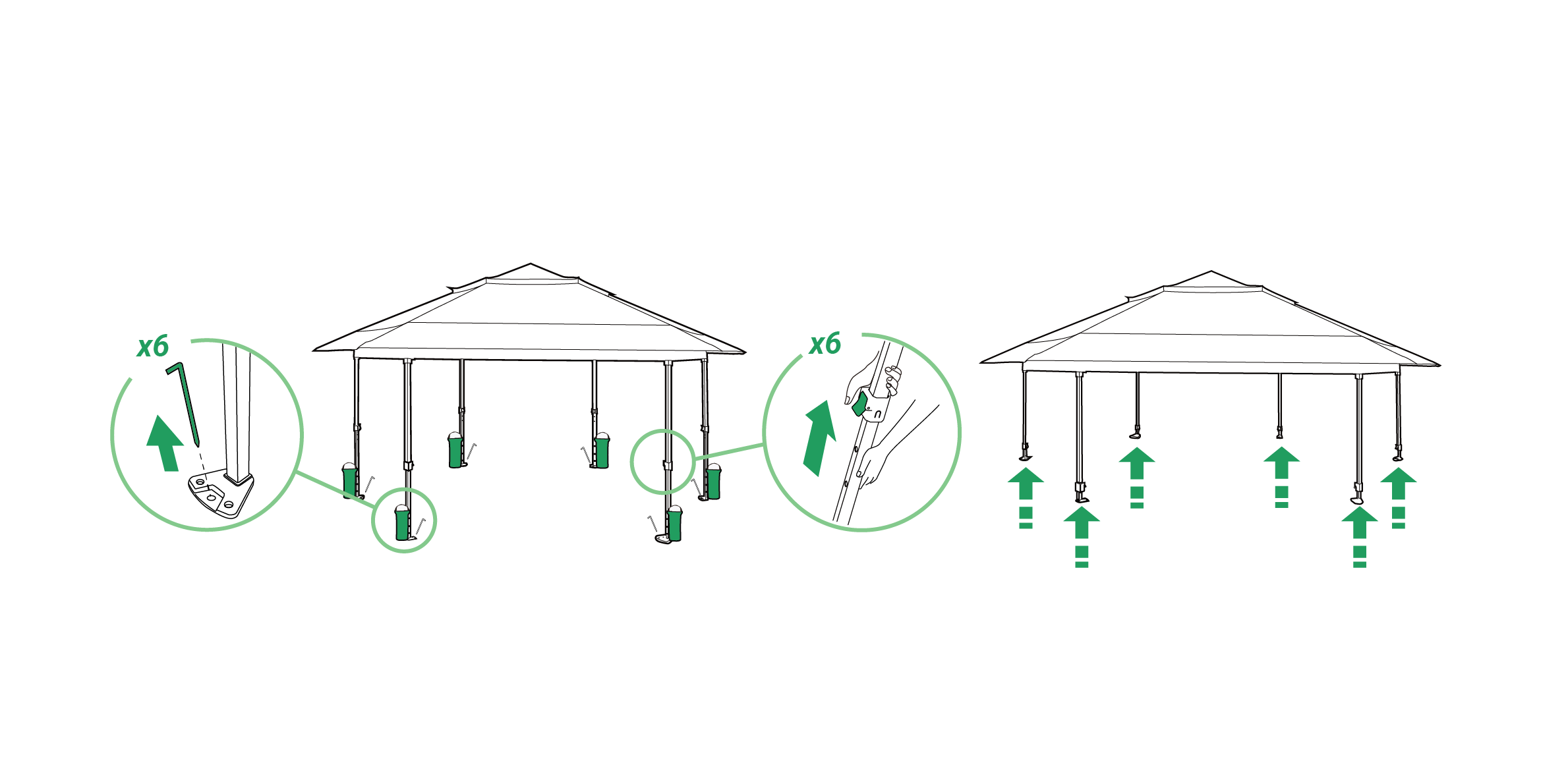

Fill weight bags with sand or use stakes to anchor.

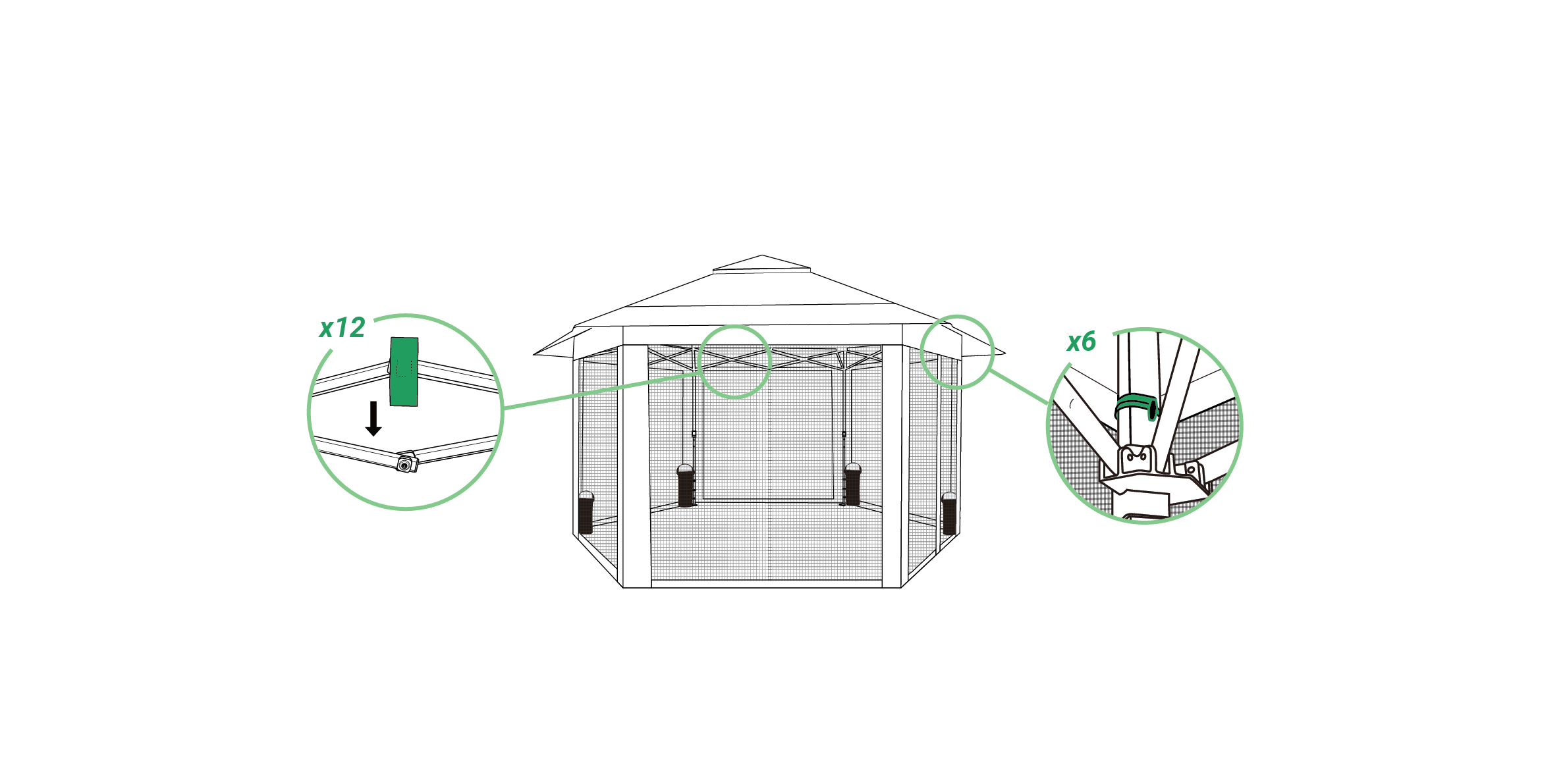

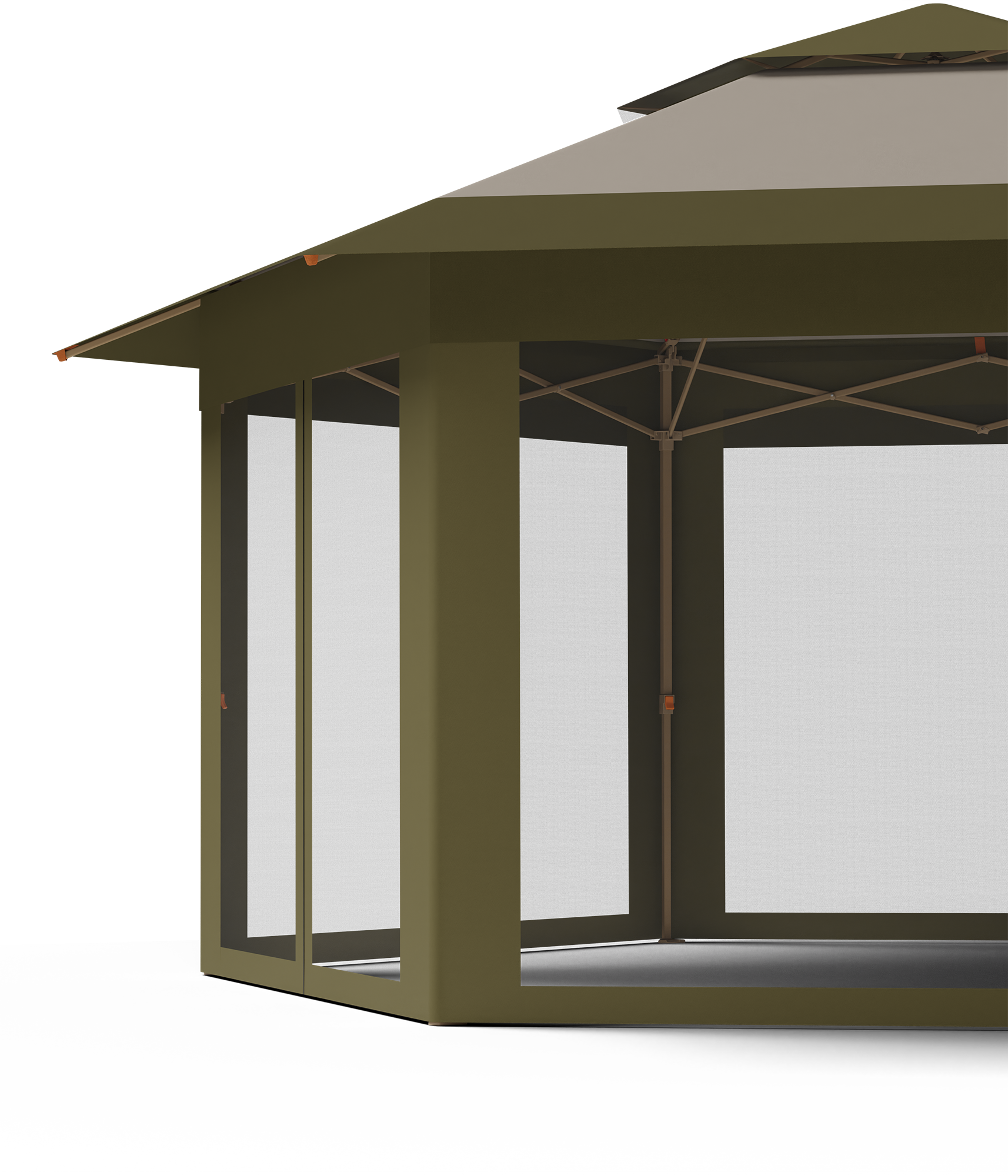

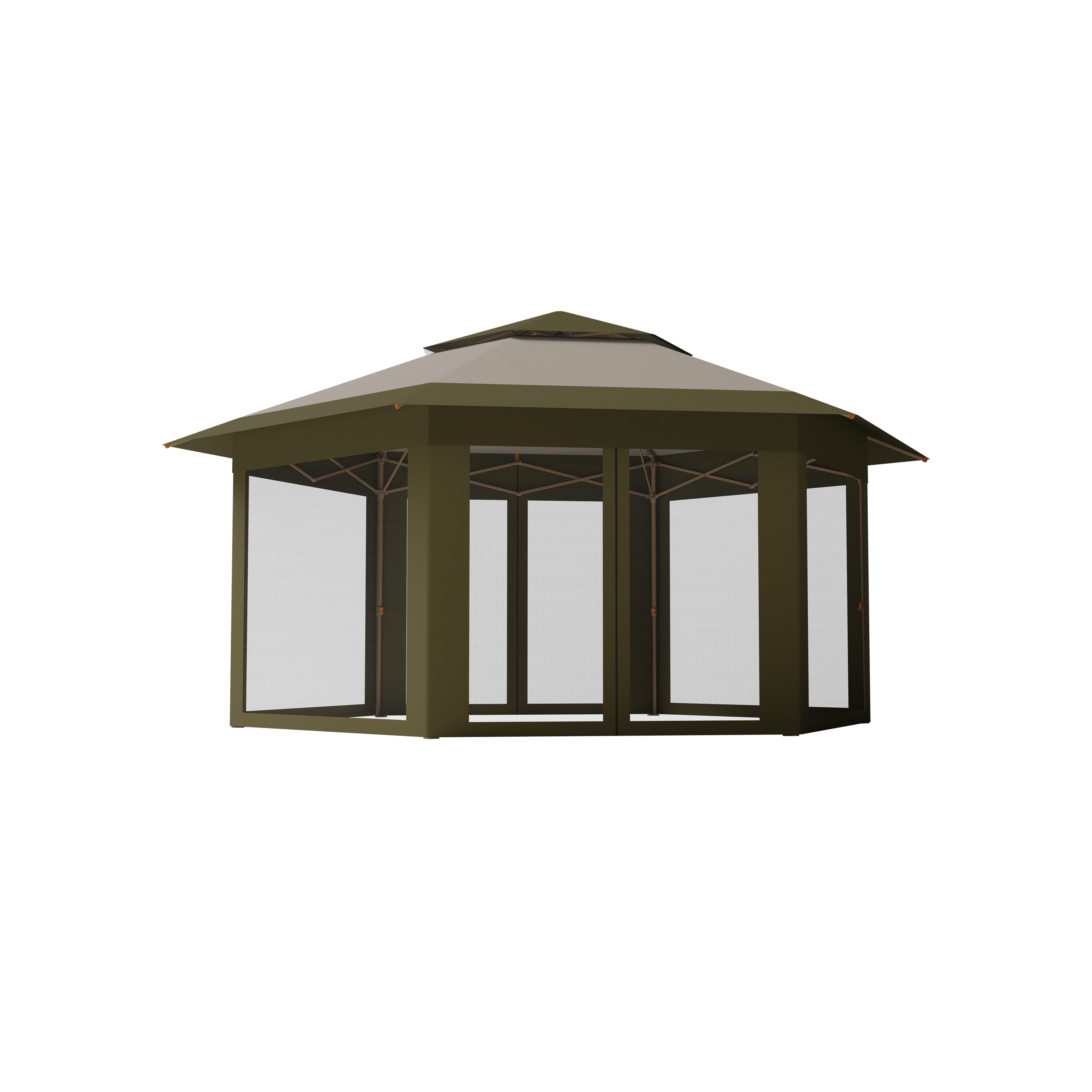

STEP 5 - SCREEN ROOM SET UP INSTRUCTIONS
Unzip the panels before starting.
Begin the first panel so the zipper is mid-way between two legs, this is your doorway.

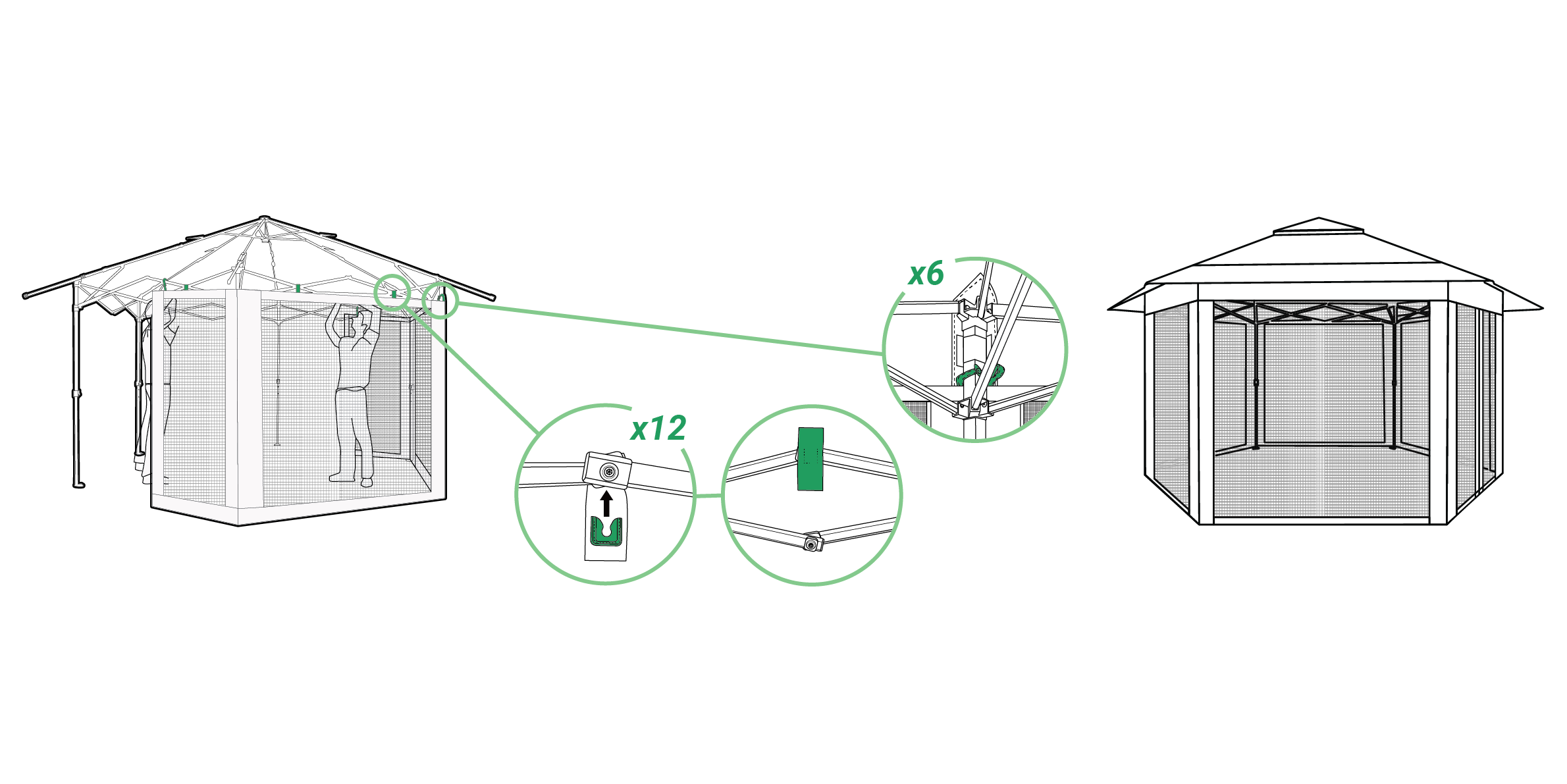

Attach Fast Clips to truss.
Wrap the toggles around each frame leg top.
TAKE DOWN INSTRUCTIONS
STEP 1 - TAKE DOWN THE MOSQUITO NETTING
Unzip one zipper of the mosquito netting.
Go under the canopy and detach the Fast Clips from the frame by pulling down on the webbing.
Free the toggles connecting to the leg tops.
Take down and neatly fold the mosquito netting so that it fits in the pocket of the storage bag.
STEP 2 - REMOVE ANCHORS & RETRACT LEGS
Remove stakes & bags.
Press leg height adjustment button to lower leg.
STEP 3 - UNLOCK THE CANOPY
Press in the orange central hub lock button, pull down on central hub until it is separated from the central pole.
STEP 4 - FOLD THE FRAME

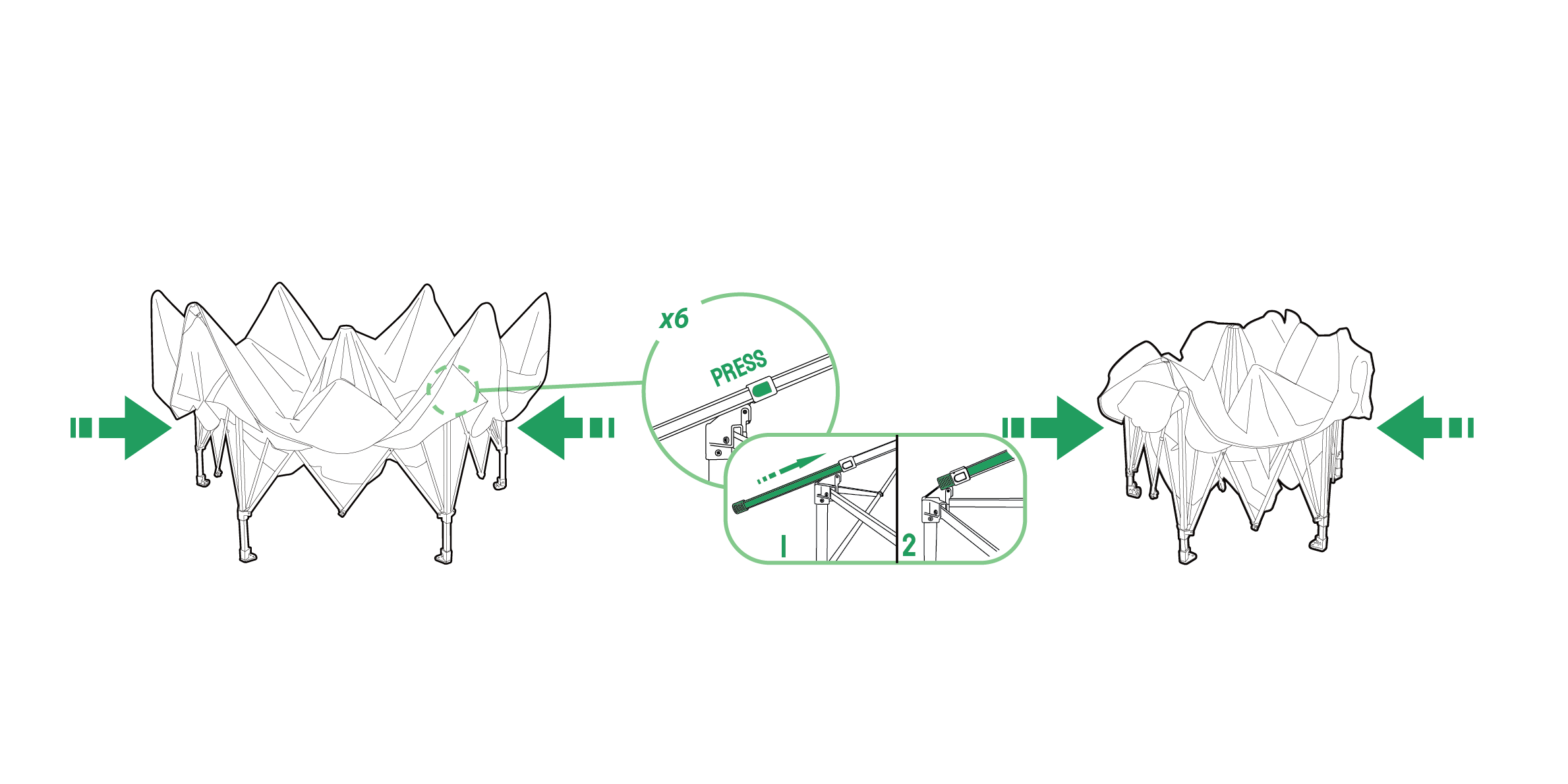

Press in orange button on each awning tube and retract the awning pole completely.
Lift the frame and step forward to fold frame.

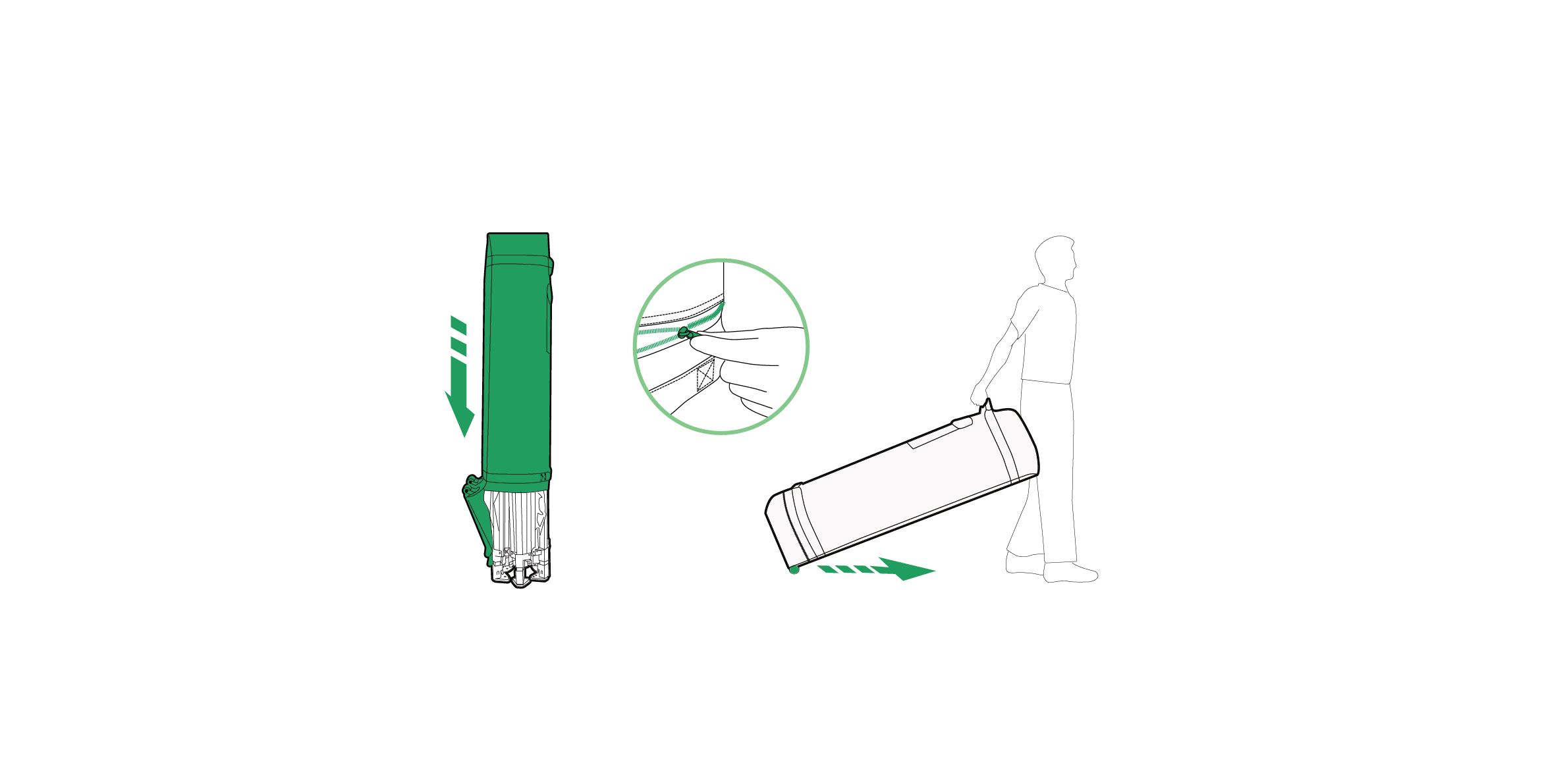

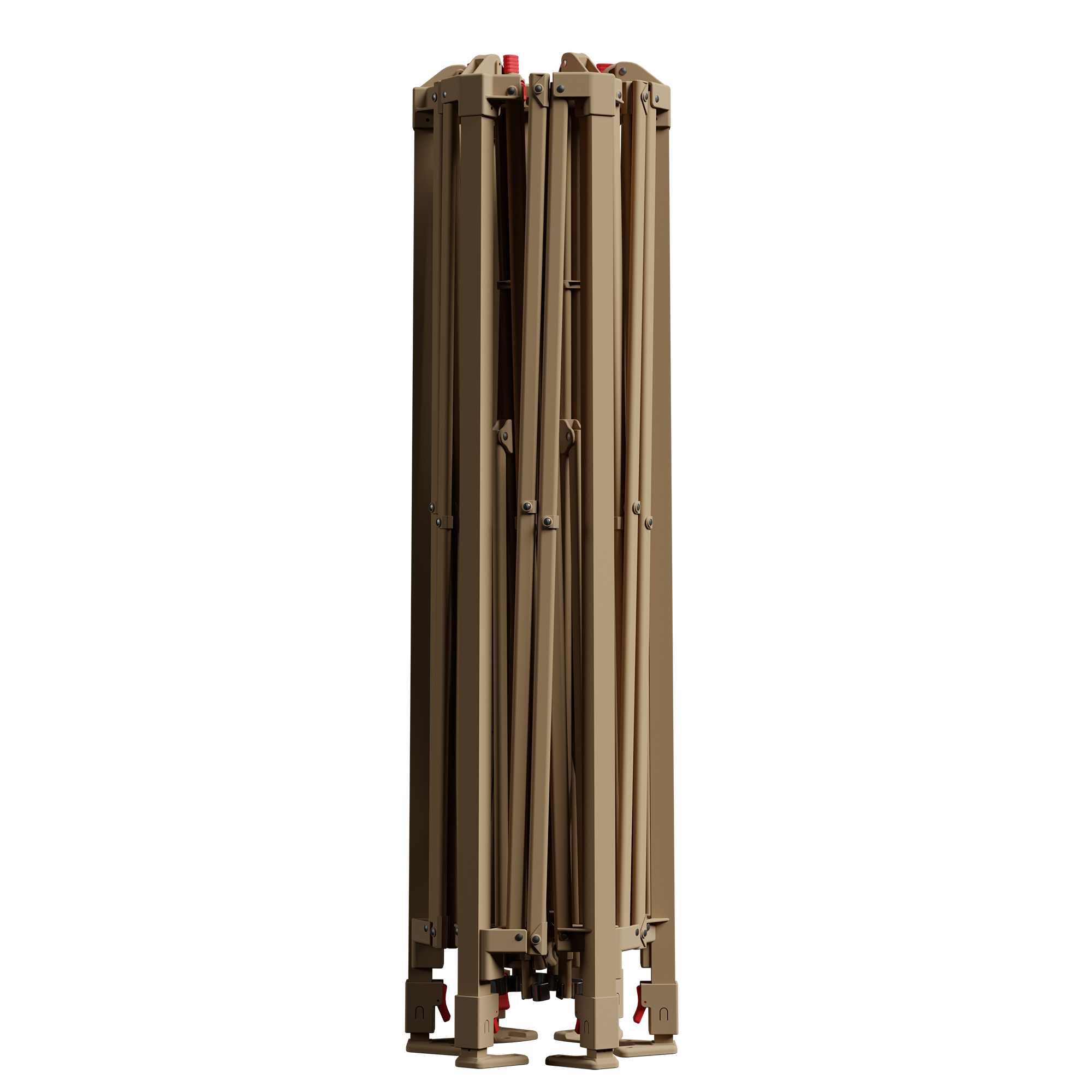

STEP 5 - PACK CANOPY IN STORAGE BAG
With canopy frame standing up, slip storage bag over and zip bag closed.
The canopy feet should be at the zipper end of the bag.
REPLACEMENT PARTS
| PART | DESCRIPTION | REFERENCE NUMBER / PURCHASE LINK |
|---|---|---|
| A | CENTRAL POLE | IXCP82BECL |
| B | CENTRAL BOTTOM HUB | IXCH00BE00 |
| C | LEG CAP | IXLC11BE00 |
| D | SLIDER | IXLS11BE00 |
| E | LEG EXTENDER | UNLE11BE4P |
| F | PLASTIC FOOT | UNFT01BENW |
| G | M5 BOLT KIT | UNBKM5BECP |
| H | M4 BOLT KIT | UNBKM4BE3P |
| I | CEILING ASSEMBLY | IXCA06BEAN |
| J | LEG ASSEMBLY | IXLA07BENW |
| K | EAVE ASSEMBLY | IXEA06BE00 |
| L | MOSQUITO NETTING (COFFEE) | IXMN06BR00 |
| M | TOP FABRIC (KHAKI-COFFEE) | IXTL06KBAN |
| N | SMALL TOP (COFFEE) | IXTS06BR00 |
| 0 | WHEELED BAG | IXWB07BKSW |
The above links take you to the official Crown Shades webstore at www.Crown-Outdoor.com

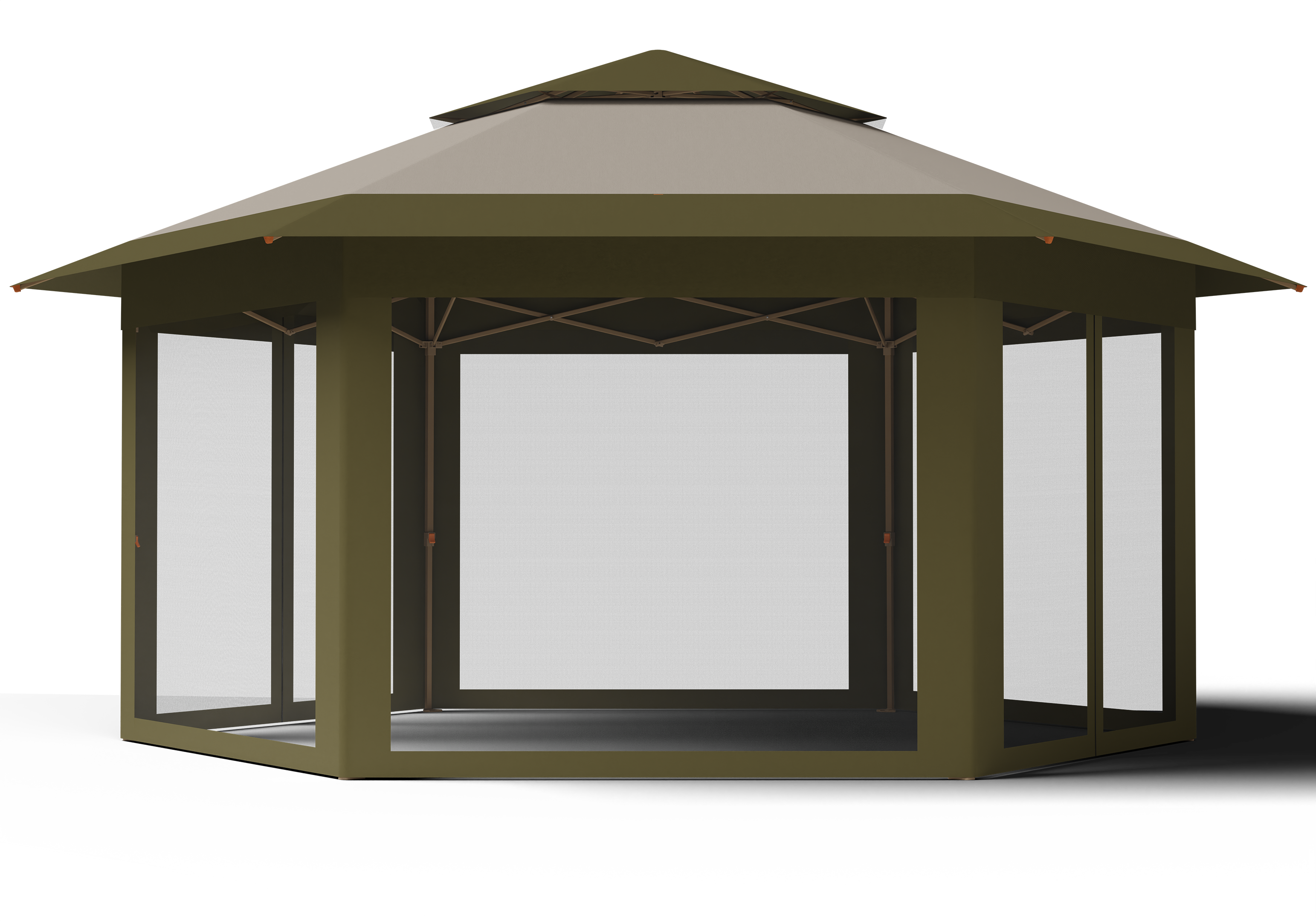

PRODUCT
FEATURES

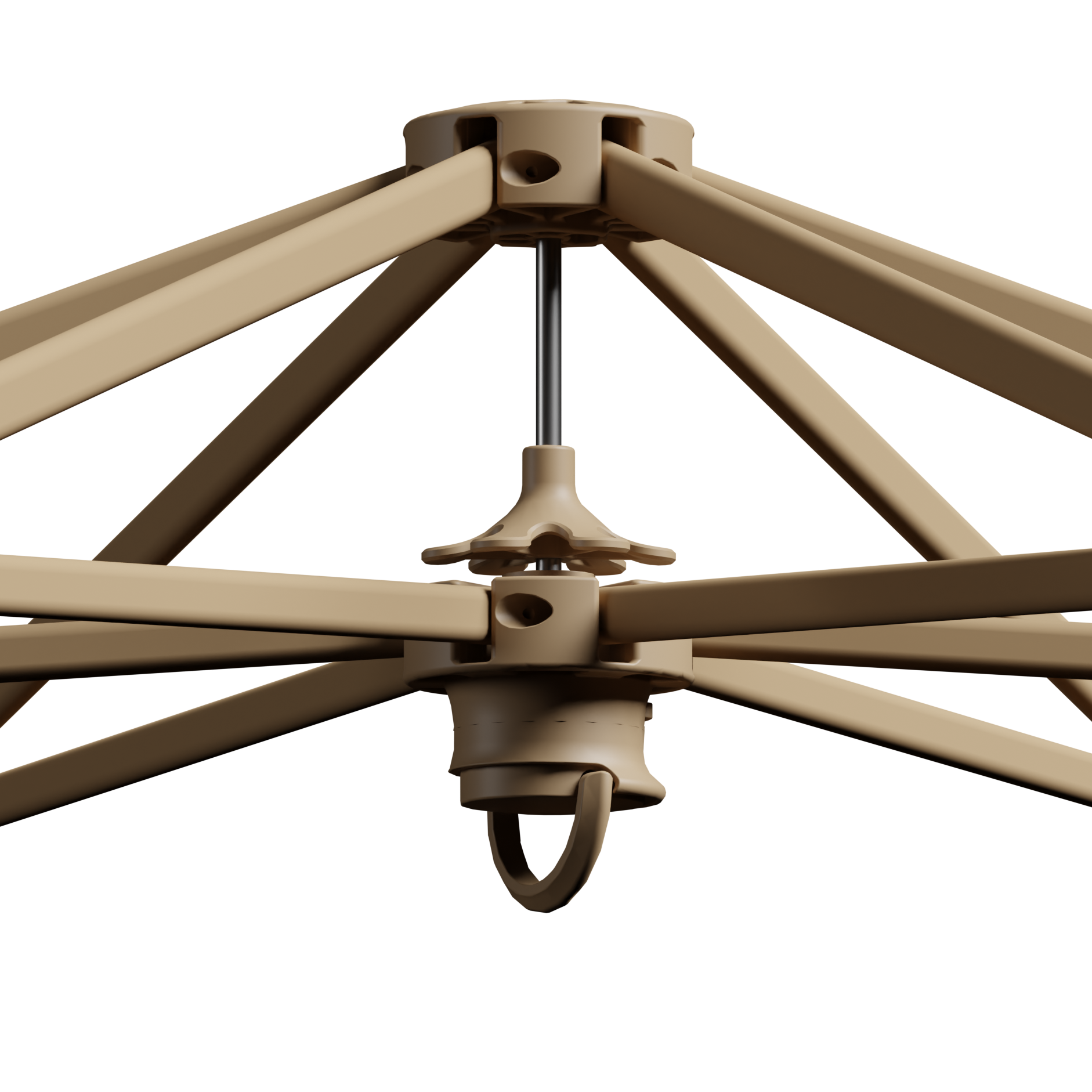

PATENTED SIX-WAY CENTERLOK HUB
Experience pop-up ease with the patented Centerlok hub system by Crown Shades. Lock the frame into place with a single push!
PATENTED TECHNOLOGY
STO 'N GO SYSTEM - PATENTED
Innovative system that eliminates lifting the canopy in transition from storage to setup. The Sto 'N Go cover slips over the frame, fastens to the wheels, and rolls away on wheels integrated directly in the canopy legs.
CENTERLOK TECHNOLOGY - PATENTED
With a single lift of each hub, the entire frame locks into place with this revolutionary technology. Similarly, a single press of a button releases the whole frame.

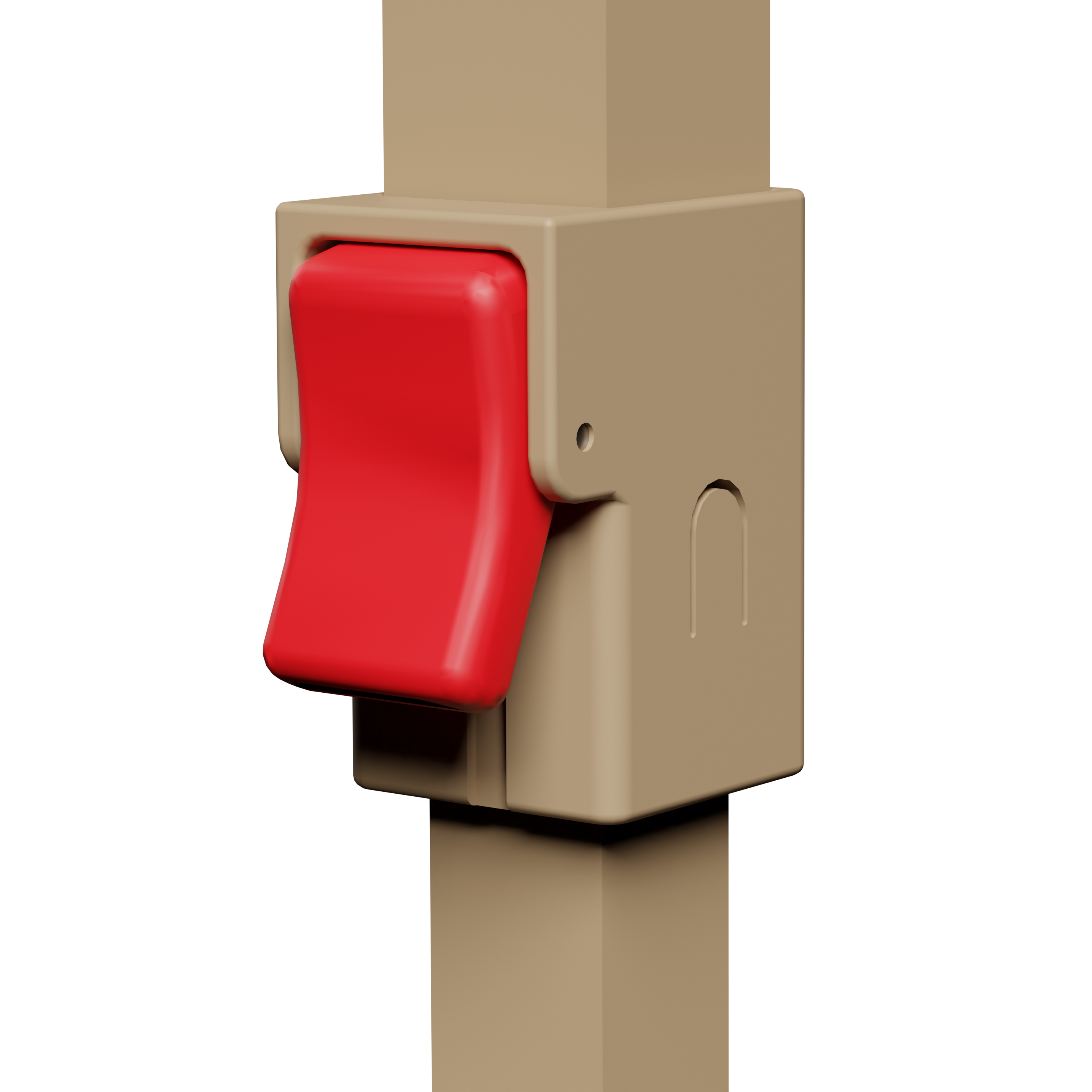

SOFT-TOUCH BUTTONS
