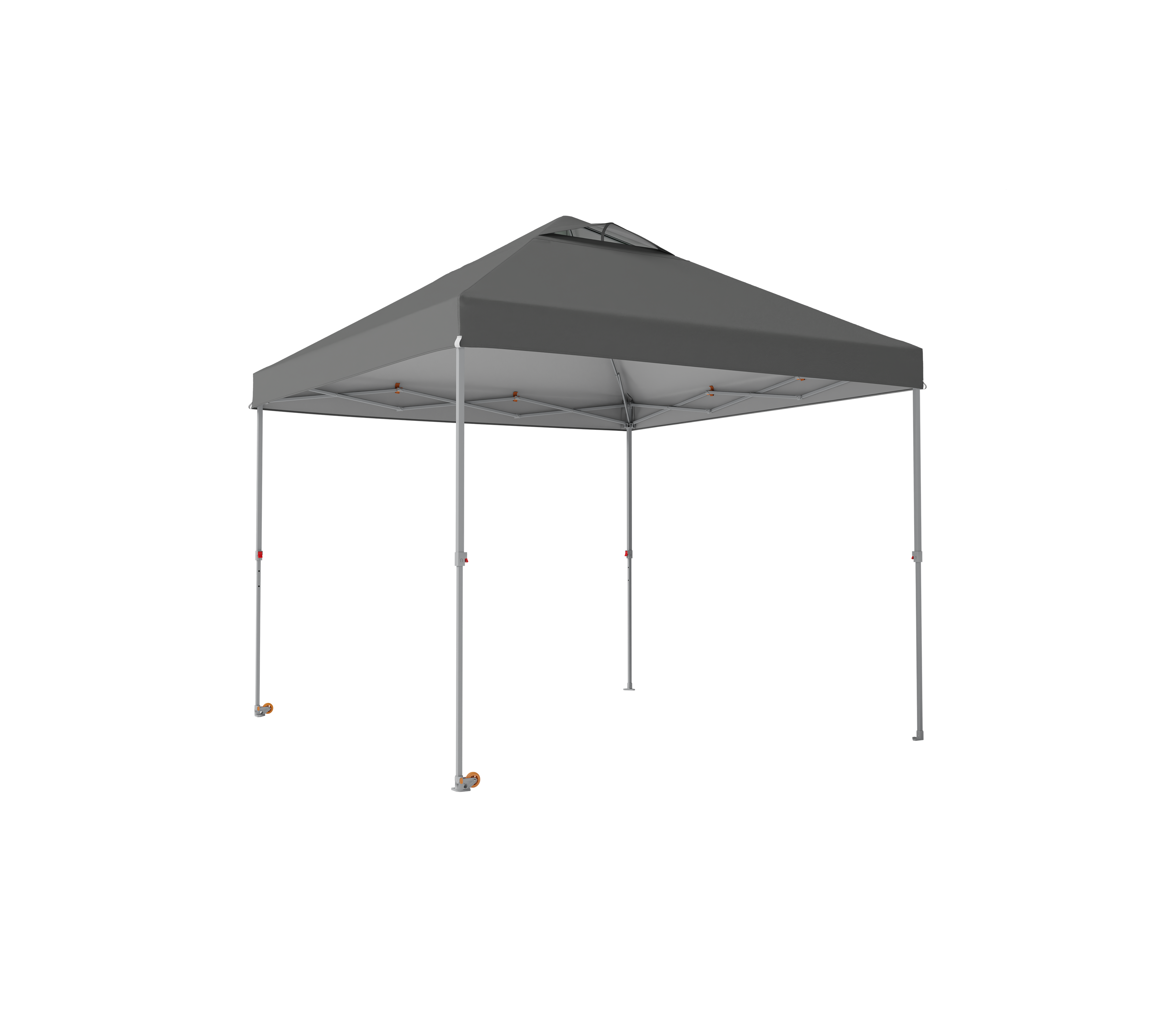

10' x 10' POP UP CANOPY
PRODUCT VIDEOS
SET UP INSTRUCTIONS
STEP 1 - OPEN THE CANOPY FRAME
Lift the canopy slightly off the ground and step backward to expand the frame to about 8’ across.
STEP 2 - ATTACH THE TOP TO THE FRAME
Unfold the canopy fabric and place it on the frame.
Use hook & loop straps to attach to the 4 legs.

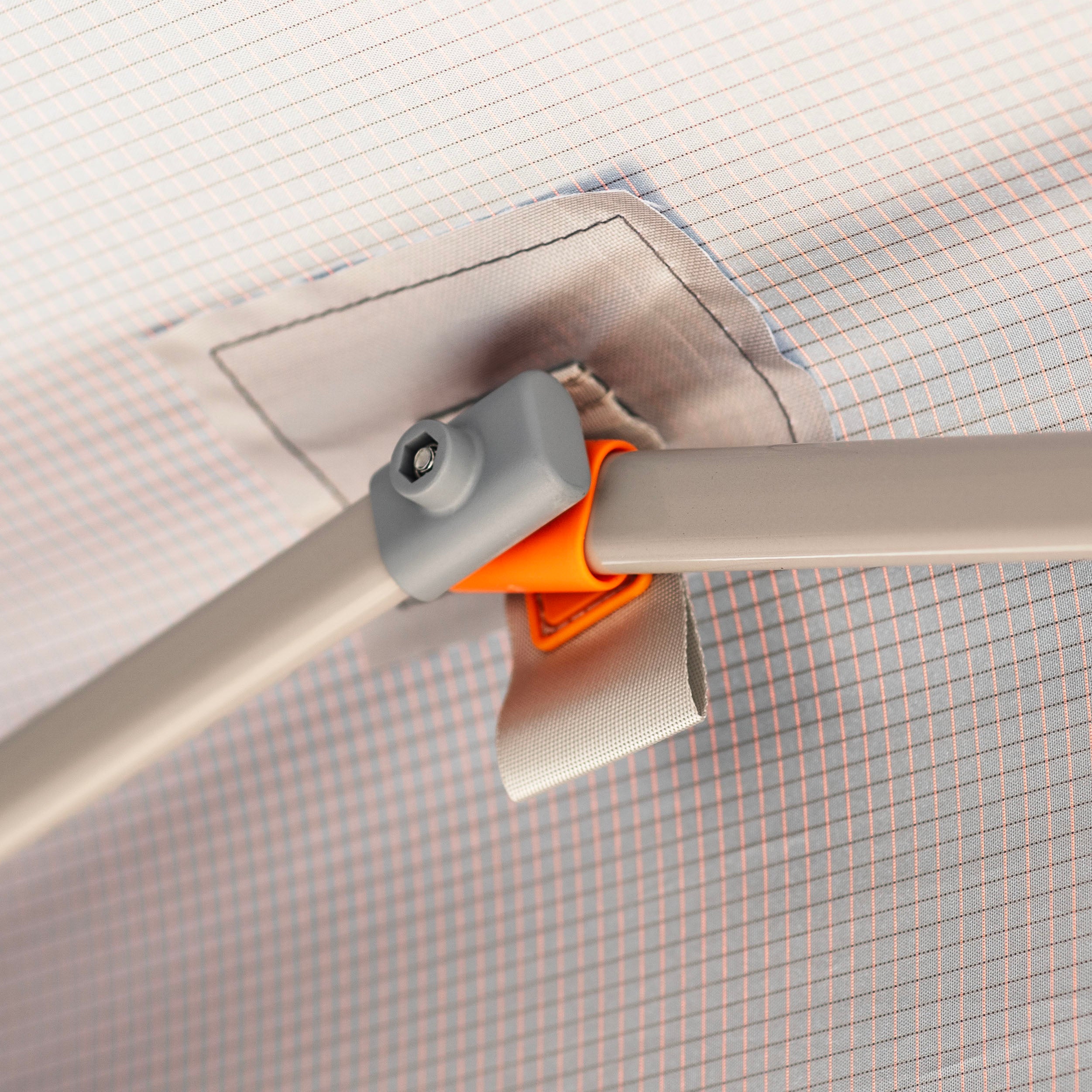

Attach Fast Clips to the 8 orange truss joints.
STEP 3 - LOCK THE FRAME
From beneath the canopy, lift the central hub straight up until it clicks into the central pole.

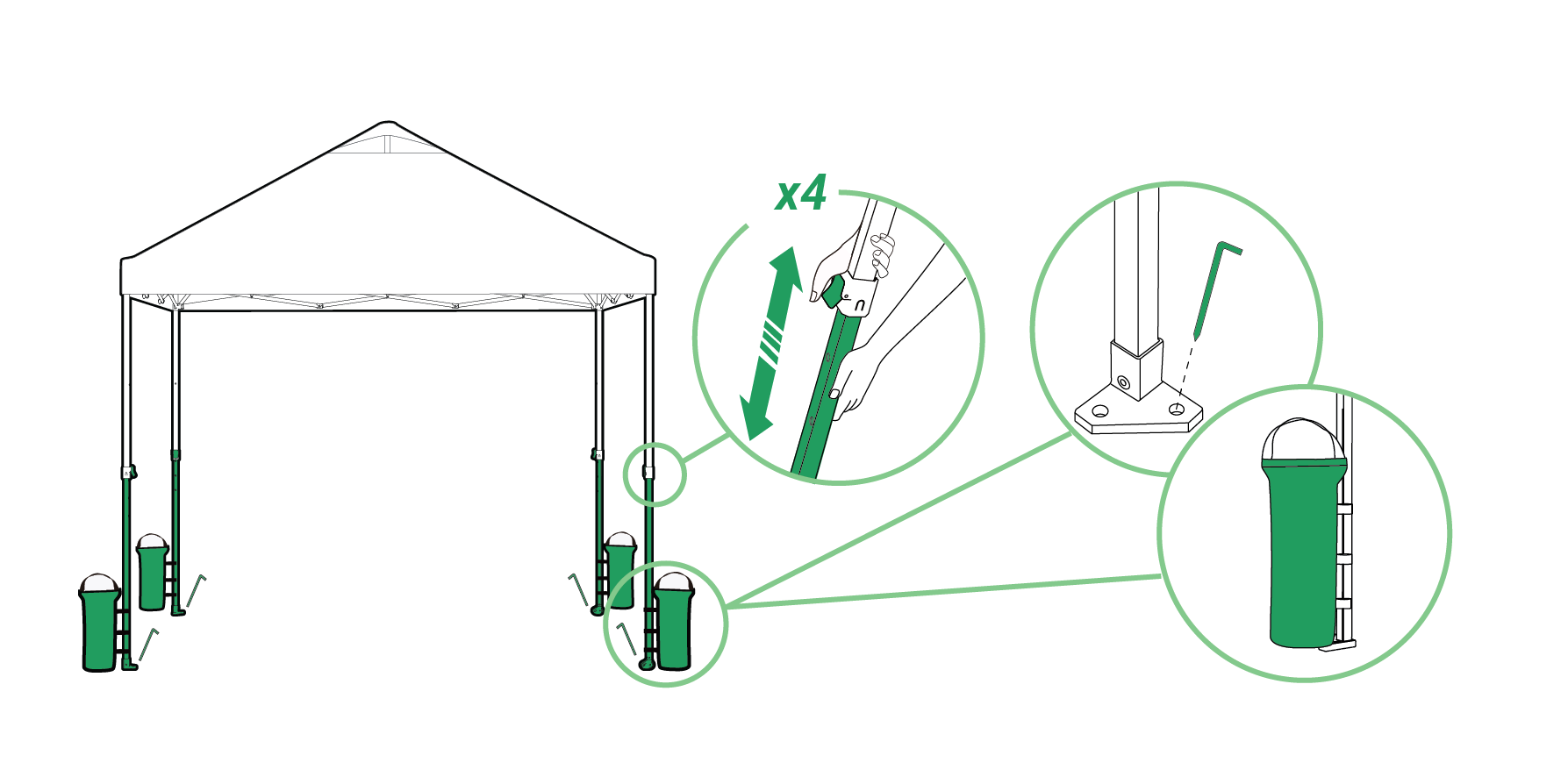

STEP 4 - EXTEND THE LEGS & ANCHOR
Extend each leg to the desired height by pressing the button and pulling the telescoping leg out.
Fill weight bags with sand or use stakes to anchor.
TAKE DOWN INSTRUCTIONS

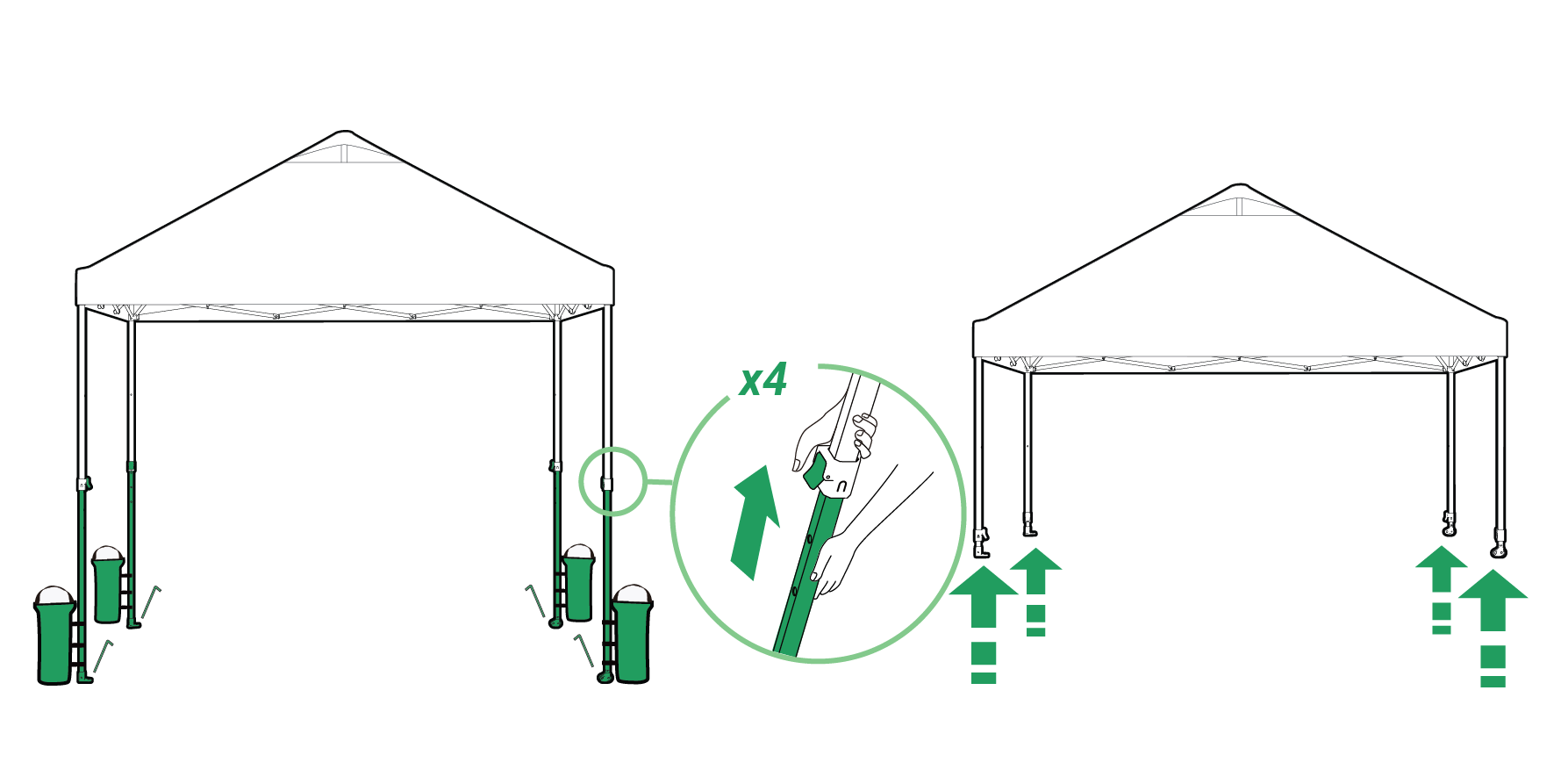

STEP 1 - REMOVE ANCHORS & RETRACT LEGS
Remove stakes & bags.
Press leg height adjustment button to lower leg.
STEP 2 - UNLOCK THE CANOPY
Press in the orange hub lock button, pull down on the central hub until it separates from the central pole.
STEP 3 - FOLD THE FRAME
Lift the frame off the ground and step forward to collapse the frame.

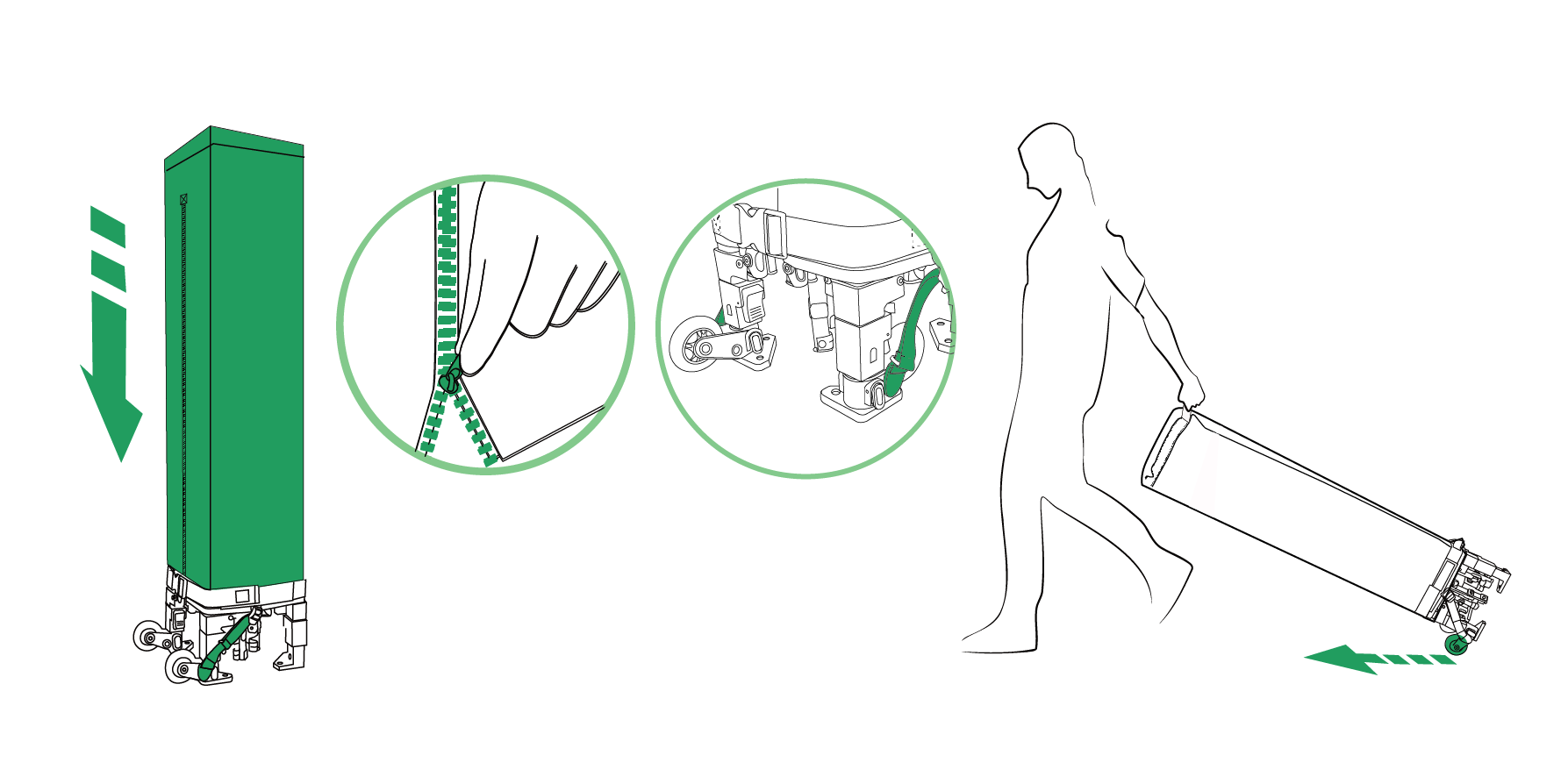

STEP 4 - ATTACH STO 'N GO COVER
Slip cover bag over with zipper between wheels.
Zip cover closed, buckle webbing strap.
Insert rocket plugs into receivers near each wheel.
REPLACEMENT PARTS
| PART | DESCRIPTION | REFERENCE NUMBER / PURCHASE LINK |
|---|---|---|
| A | CENTRAL POLE | UNCP98BECL |
| B | CENTRAL BOTTOM HUB | UNCH00BECL |
| C | LEG CAP | UNLC11GYMI |
| D | SLIDER | UNLS11GYMI |
| E | LEG WITHOUT WHEEL | GALA10GYNW |
| E (R) | LEG WITH WHEEL (RIGHT) | CSLA12GYWR |
| E (L) | LEG WITH WHEEL (LEFT) | CSLA12GYWL |
| F | CEILING ASSEMBLY | UNCA10GY00 |
| G | M5 BOLT KIT | NNBKM5BEUB |
| H | M4 BOLT KIT | UNBKM4BE3P |
| I | M5 BOLT KIT WITH CLIP | MOBKM5BGCL |
| J | EAVE ASSEMBLY | MOEA10BE00 |
| K | TOP FABRIC-GREY | UNT110GD00 |
| L | STO N' GO COVER | UNCB86BKSG |
The above links take you to the official Crown Shades webstore at www.Crown-Outdoor.com
PRODUCT
FEATURES

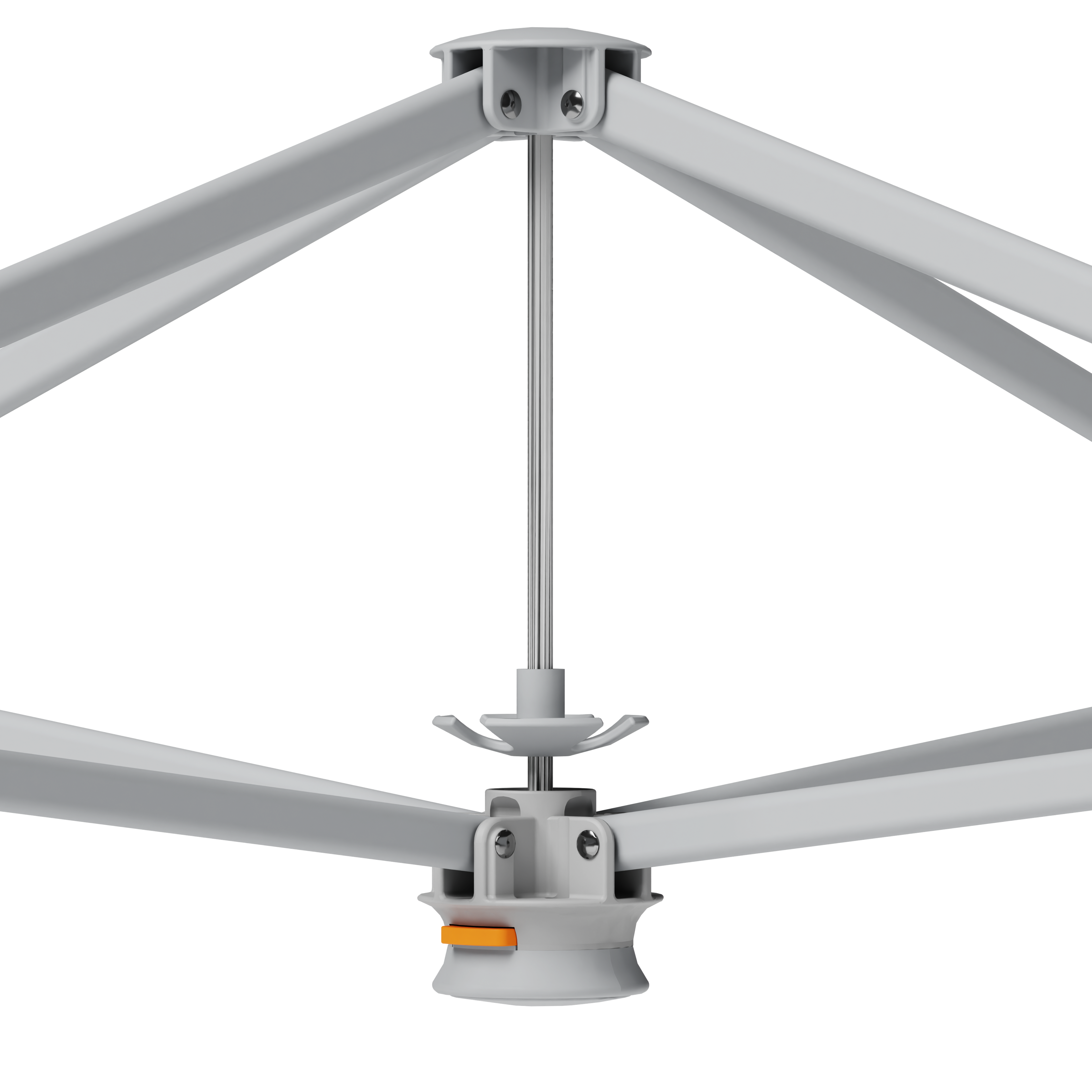

PATENTED CENTERLOK HUB
Experience pop-up ease with the patented Centerlok hub system by Crown Shades. Lock the frame into place with a single push!
PATENTED TECHNOLOGY
CENTERLOK TECHNOLOGY - PATENTED
With a single lift of each hub, the entire frame locks into place with this revolutionary technology. Similarly, a single press of a button releases the whole frame.
STO 'N GO SYSTEM - PATENTED
Innovative system that eliminates lifting the canopy in transition from storage to setup. The Sto 'N Go cover slips over the frame, fastens to the wheels, and rolls away on wheels integrated directly in the canopy legs.

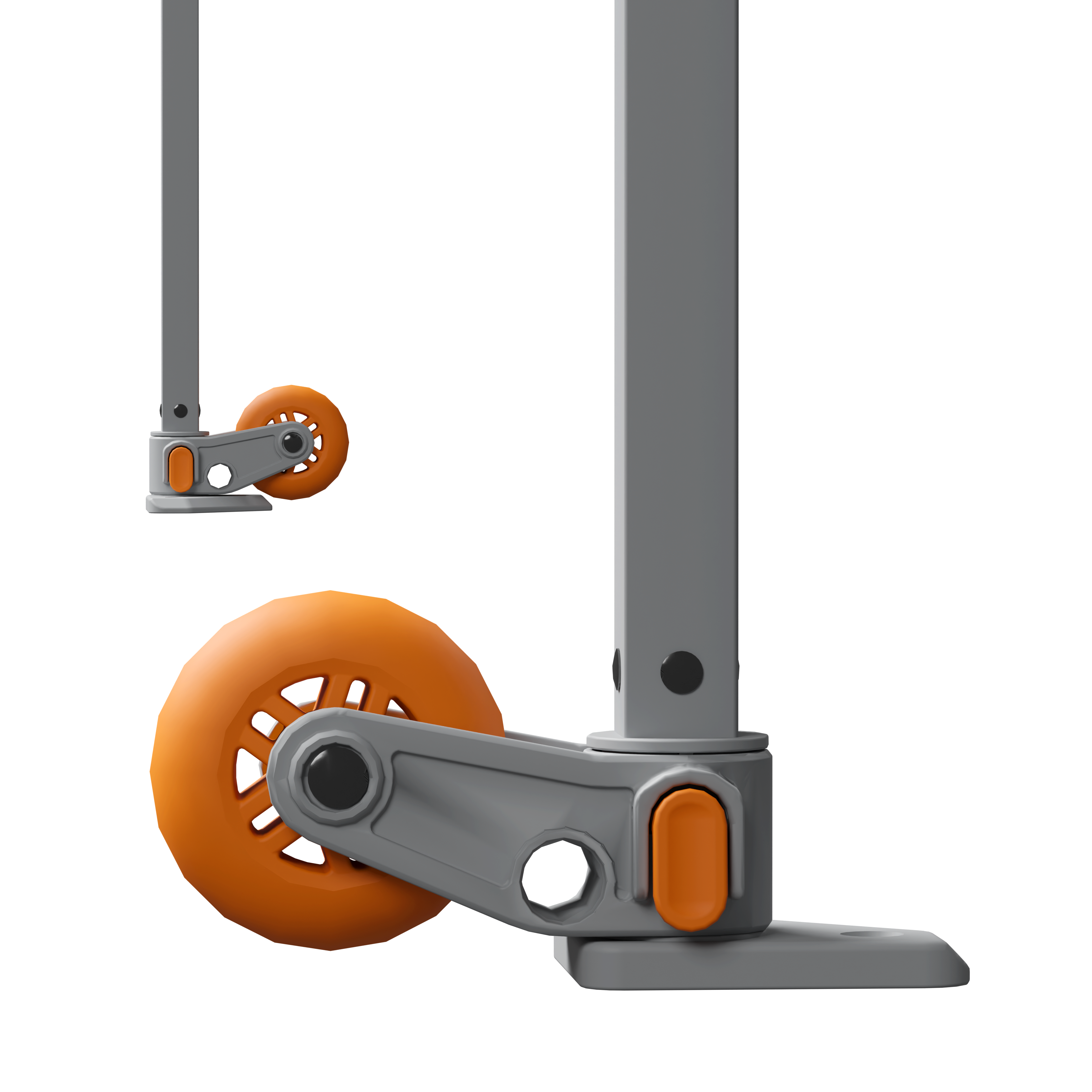

INTEGRATED FAST ROLLING 3" WHEELS
Adjacent wheeled feet feature articulating wheel housings built for user choice between smooth rolling and compact storage dimensions.
SOFT-TOUCH BUTTONS

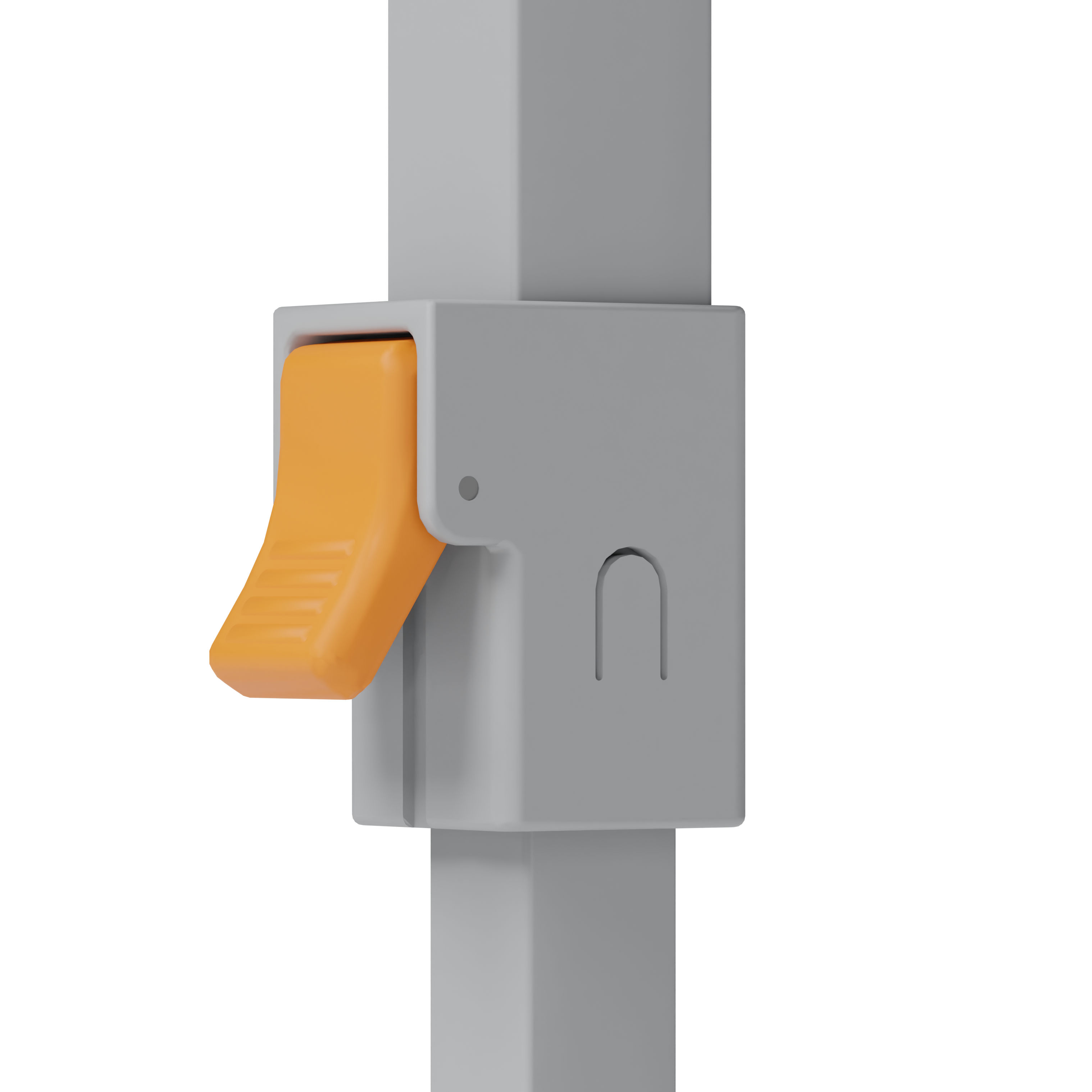

Large ergonomic paddle-shaped buttons eliminate pinched fingers.
FAST CLIP SYSTEM
Hardware connection between the fabric top and the frame. Designed to keep fabric free from the collapsing truss during storage. Securely fastens top fabric to frame.
